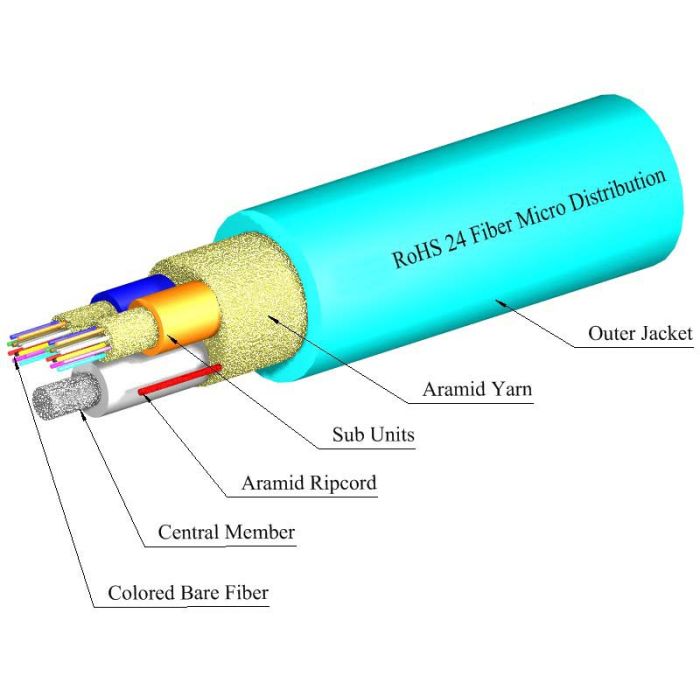

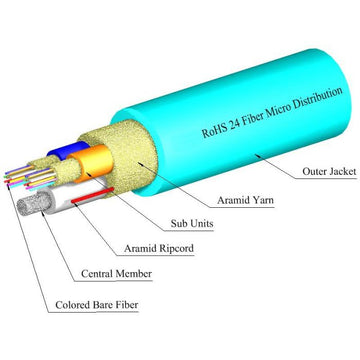

TLC Micro-Distribution Cable with Aluminum Interlocking Armor 24 Fiber ClearCurve Multimode 50/125um OM3 Plenum Aqua (per meter)

Overview

The TLC Micro-Distribution Cable with Aluminum Interlocking Armor is a high-density, robust fiber optic solution designed for indoor environments where space is at a premium. Featuring 24 strands of ClearCurve 50/125um OM3 multimode fiber, this cable is engineered for high-speed performance in data centers and premise networks.

This cable is constructed with a plenum-rated jacket, making it suitable for installation in air-handling spaces. The addition of an aluminum interlocking armor provides exceptional mechanical protection and physical security, allowing for deployment in high-traffic areas without the need for additional conduit or raceway systems.

Key Features

• Aluminum Interlocking Armor
  Provides robust crush resistance and physical protection, reducing the need for rigid conduit installation.
• 24-Fiber Count
  Optimizes cable density for high-capacity networking in constrained spaces.
• ClearCurve Multimode Fiber
  Features enhanced bend-insensitivity for easier routing and reduced signal loss in tight installations.
• Plenum-Rated Jacket
  Meets stringent fire safety codes for installation in overhead air-handling plenums.
• 50/125um OM3 Performance
  Supports high-bandwidth applications, including 10 Gigabit Ethernet, over longer distances.
• Subunit Design
  Fibers are organized into subunits of 12 for efficient identification and termination.

Applications

• Data center high-density backbone cabling
• Premise network horizontal distribution
• Installation in air-handling spaces (plenums)
• Applications requiring physical protection without conduit
