Overview

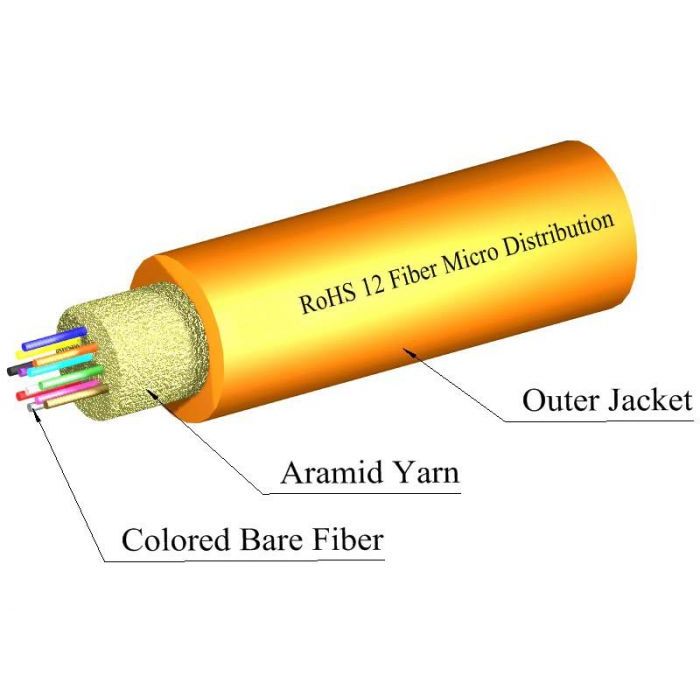

The TLC Micro Distribution Fiber Optic Cable is engineered for high-density indoor environments where space is at a premium. This 12-fiber, multimode 62.5/125um cable features Corning® InfiniCor® 300 fiber, providing reliable optical performance for premise networks and data center infrastructures.
Designed with a plenum-rated jacket, this cable meets stringent fire safety requirements for installation in air-handling spaces. The micro-distribution construction allows for a compact footprint, facilitating easier routing in crowded cable trays and conduits while maintaining mechanical integrity.
Key Features
-
High-Density Design
Compact construction optimized for space-constrained indoor applications. -
Plenum Rated
Jacket material compliant with plenum fire safety standards for use in air-handling spaces. -
Multimode 62.5/125um Fiber
Utilizes Corning® InfiniCor® 300 optical fiber for standardized signal transmission. -
12-Fiber Count
Provides sufficient capacity for localized network distribution and backbone links. -
Efficient Routing
Small diameter allows for increased cable density in pathways and conduits. -
Standardized Performance
Compatible with industry-standard multimode termination and splicing equipment.
Applications
- Data Centers
- Premise Networks
- Backbone Cabling
- Indoor Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5/125um |
| Fiber Brand | Corning® InfiniCor® 300 |
| Jacket Rating | Plenum |
| Jacket Color | Orange |
| Cable Type | Micro Distribution |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor applications. For outdoor environments, please select an appropriate outdoor or indoor/outdoor rated cable.
What is the fiber count configuration?
This cable features 12 fibers. In configurations exceeding 12 fibers, individual fibers are grouped into 12-fiber subunits.
Are other jacket types available?
While this specific SKU is plenum-rated, riser and LSZH (Low Smoke Zero Halogen) options are available upon request.
Does this cable contain armor?
This specific model is the standard version; versions with aluminum interlocking armor are available as a separate option.
Is this sold per foot or per meter?
This product is sold by the meter.
