Overview
The TLC Micro Distribution Fiber Optic Cable is engineered for indoor environments where space optimization is critical. Featuring a 12-fiber count, this cable is designed for use in data centers and premise network installations. Its compact construction allows for efficient cable management in high-density pathways and racks.
This cable features a Riser-rated jacket, making it suitable for vertical pathways between floors in commercial buildings. Built with high-performance 62.5/125um multimode fiber, it includes Corning® InfiniCor® 300 optical fiber for consistent, reliable signal integrity across local area networks.
Key Features
-
12-Fiber Configuration
Features a 12-fiber construction suitable for structured cabling in premise networks. -
Riser Rated Jacket
Designed for compliance with building codes for vertical floor-to-floor installations. -
High-Density Design
Small diameter profile allows for improved airflow and space utilization in crowded racks. -
Corning® InfiniCor® 300 Fiber
Utilizes high-quality multimode fiber cores for standardized optical performance. -
Optimized for Indoor Use
Engineered specifically for the physical requirements of data centers and office environments. -
Durable Construction
Provides physical protection for fibers while remaining flexible for easier routing.
Applications
- Data center cable management
- Premise network backbones
- Vertical Riser pathways
- High-density fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Part Number | M62MD12C3NRO |
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5/125um |
| Fiber Brand | Corning® InfiniCor® 300 |
| Jacket Rating | Riser |
| Jacket Color | Orange |
Frequently Asked Questions
What is the primary use for this cable?
This micro distribution cable is primarily used in indoor data centers and premise networks for high-density fiber routing.
Is this cable plenum rated?
This specific part number is Riser rated. Please contact us if you require Plenum or LSZH variants.
Can this cable be used outdoors?
No, this cable is designed for indoor applications and is not rated for outdoor environmental exposure.
How are the fibers organized in this cable?

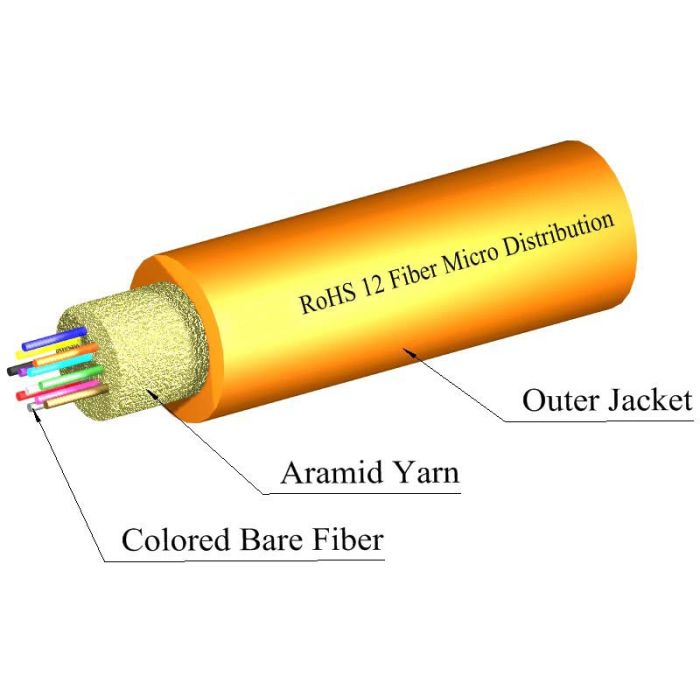

This cable uses a micro-distribution design; for counts higher than 12, fibers are grouped into subunits of 12.
What is the fiber type?
This cable uses 62.5/125um multimode fiber with Corning® InfiniCor® 300 specifications.
