Overview

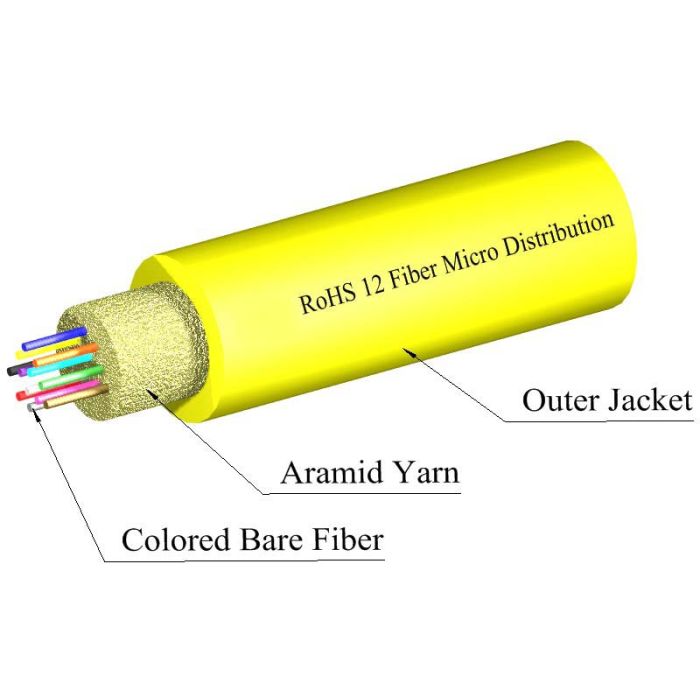

The TLC Micro Distribution Fiber Optic Cable is a specialized solution engineered for indoor environments where space is at a premium. Featuring 12-fiber construction with premium Corning® SMF-28® Ultra singlmode fiber, this cable is designed to provide high-density connectivity in constrained pathways.
This plenum-rated cable is optimized for data centers and enterprise premise networks, meeting rigorous safety standards for indoor installation. The compact, high-density design facilitates easier routing and cable management compared to traditional distribution cabling.
Key Features
-
High Density Design
Optimized for space-constrained indoor installations in data centers and premise networks. -
12-Fiber Count
Features a 12-fiber configuration suitable for standard trunking and high-density connectivity requirements. -
Corning® SMF-28® Ultra Fiber
Incorporates industry-recognized singlemode fiber for consistent performance and low attenuation. -
Plenum Rated Jacket
Designed for use in plenum air-handling spaces to meet fire safety compliance requirements. -
Yellow Jacket Color
Industry-standard yellow jacket facilitates easy identification of singlemode cabling within mixed-media networks. -
Compact Construction
Engineered to reduce the physical footprint of cable bundles, simplifying installation in tight pathways.
Applications
- Data Centers
- Enterprise Premise Networks
- High-Density Fiber Routing
- Indoor Plenum Pathways
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode (Corning® SMF-28® Ultra) |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
Frequently Asked Questions
What does the plenum rating mean?
A plenum rating indicates that the cable jacket is constructed with materials specifically designed to inhibit flame spread and reduce smoke generation, making it suitable for installation in air-handling ceiling and floor plenums.
Can this cable be installed outdoors?
No, this cable is designed specifically for indoor use. Outdoor installations require specialized cabling with environmental protection and UV resistance.
What is the fiber type?
This cable uses Corning® SMF-28® Ultra fiber, a high-performance singlemode fiber suitable for long-distance and high-speed data transmission.
How is the cable sold?
This cable is sold by the meter to accommodate specific project length requirements.
Are other jacket types available?
While this specific SKU is plenum-rated, other jacket options including riser and LSZH are available upon request.
