Overview
The TLC Micro Distribution Fiber Optic Cable is designed for high-density indoor environments where space is at a premium. This 24-fiber multimode cable features 62.5/125um core/cladding geometry and is constructed with a flame-retardant plenum-rated jacket, making it suitable for installation in air-handling spaces.
Engineered for premise networks and data center applications, this cable utilizes high-quality Corning® InfiniCor®300 fiber. The cable construction features fiber counts grouped into subunits of 12 fibers, providing efficient cable management and easier termination in professional networking environments.
Key Features
-
High-Density Design
Optimized for installations where limited space requires a compact cable footprint. -
Plenum Rated
Jacket material meets safety standards for installation in plenum air spaces. -
Corning® InfiniCor®300 Fiber
Utilizes reliable, industry-standard multimode fiber for stable transmission performance. -

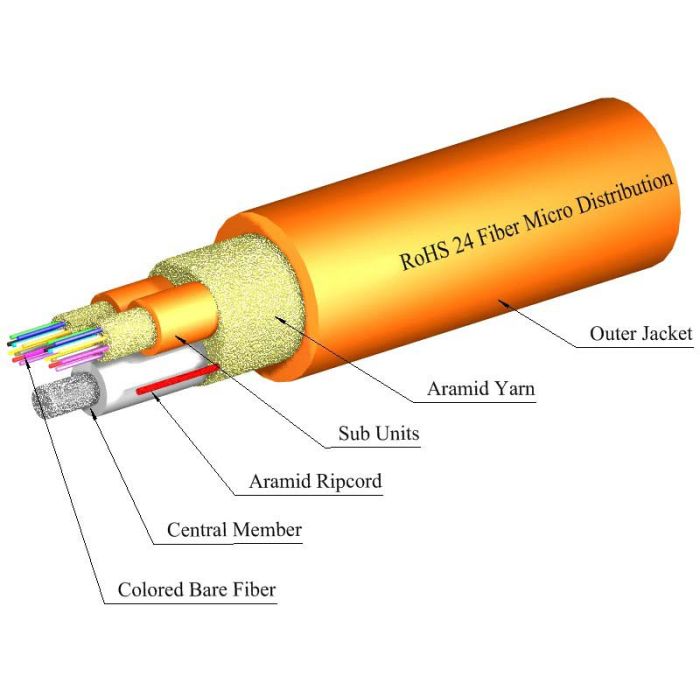

Organized Subunits
Fiber counts exceeding 12 are grouped in 12-fiber subunits to simplify identification and cable routing. -
Versatile Fiber Count
Supports scalable network requirements with configurations ranging from 2 to 144 fibers. -
Indoor Application Ready
Designed specifically for premise networks and data center backbone cabling.
Applications
- Data center high-density cabling
- Premise network backbones
- Indoor plenum-rated pathway installations
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Micro Distribution |
| Fiber Count | 24 |
| Fiber Mode | Multimode |
| Core/Cladding Size | 62.5/125um |
| Fiber Type | Corning® InfiniCor®300 |
| Jacket Rating | Plenum |
| Jacket Color | Orange |
Frequently Asked Questions
What is the primary application for this cable?
This cable is intended for indoor premise networks and data center environments where space is limited and plenum-rated material is required.
Are other jacket types available?
Yes, Riser and LSZH jackets are available upon request.
How are the fibers organized?
For cables with more than 12 fibers, the fibers are organized into subunits of 12 fibers each.
Can I order this with armor?
Yes, this cable series is available with or without aluminum interlocking armor.
What fiber counts are supported by this series?
The micro distribution cable series supports fiber counts from 2 to 144 fibers.
