Overview

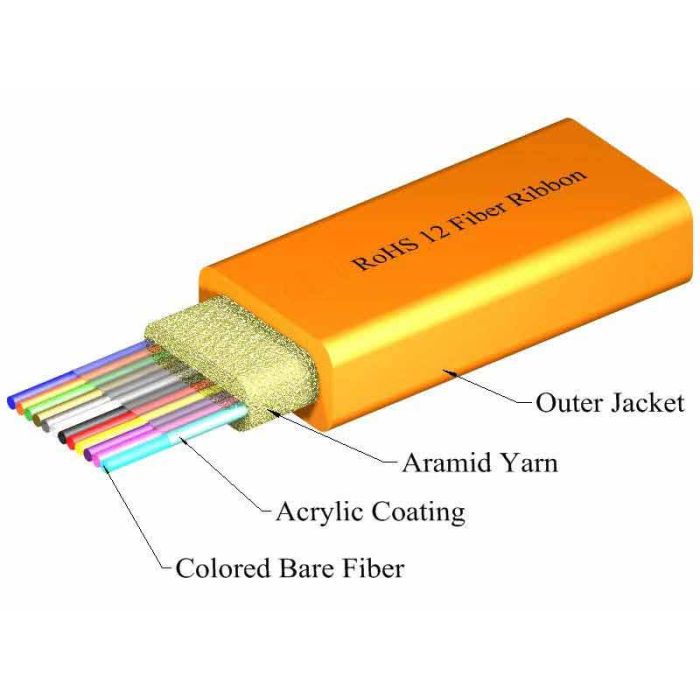

The TLC Ribbon Cable is designed for indoor applications, featuring a 12-fiber construction encased in a plenum-rated outer jacket. This cable utilizes 50/125um OM2 ClearCurve multimode fiber and incorporates aramid yarn for tensile strength, ensuring compatibility with standard fiber optic termination hardware.

Key Features

• 12-Fiber Ribbon Configuration: The cable architecture utilizes a ribbon format that allows for mass fusion splicing, streamlining high-density cable terminations.
• ClearCurve Bend-Insensitive Fiber: Built with OM2 50/125um ClearCurve fiber, which reduces signal loss in tighter installation environments.
• Plenum-Rated Jacket: The outer jacket is constructed from plenum-rated material, making it suitable for installation in air-handling spaces as defined by standard building codes.
• Aramid Strength Member: Integrated aramid yarns provide necessary longitudinal strength to protect the fibers during pulling and routing.
• Peelable Ribbon Material: The ribbon matrix is engineered to peel cleanly from the glass fibers, facilitating efficient connectorization and splicing.

Technical Specifications
