Overview

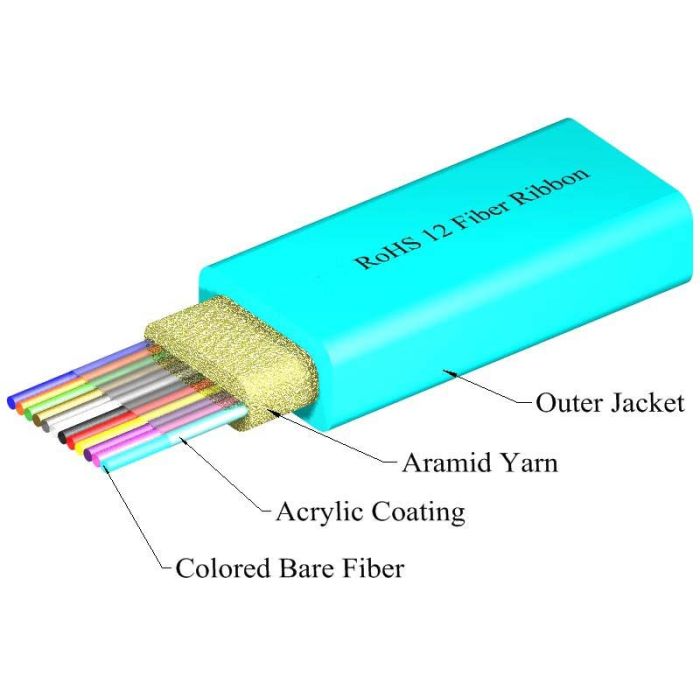

The Light Connection (TLC) Ribbon Cable is an engineered fiber optic solution designed for high-density applications. Featuring a 12-fiber construction, this cable utilizes 50/125um OM4 ClearCurve multimode fiber, known for its enhanced bend-insensitive performance, making it ideal for tight spaces and complex routing environments.
Constructed with aramid yarn strength members for structural integrity and a durable plenum-rated outer jacket, this cable is purpose-built for indoor environments requiring NEC compliance. Its ribbon design facilitates efficient mass fusion splicing and rapid termination, significantly reducing deployment time for contractors and data center operators.
Key Features
-
High-Density Ribbon Design
Features 12 fibers in a ribbon format, enabling efficient mass fusion splicing for reduced labor time. -
Bend-Insensitive Performance
Uses ClearCurve fiber technology to minimize signal loss in tight-bend installations. -
Plenum-Rated Jacket
Jacket material is fire-retardant and smoke-resistant, complying with stringent building plenum safety standards. -
Aramid Strength Members
Integrated aramid yarn provides tensile strength to protect fibers during installation. -
Industry Compatibility
Design is compatible with all current standard industry termination products and splicing equipment. -
Standard Color Coding
Features 12 TIA-standard colors for simplified fiber identification and network management.
Applications
- Data Center high-density trunking
- Intra-building backbone networks
- Mass fusion splicing environments
- Plenum-rated pathways and spaces
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | The Light Connection |
| Part Number | M50RB12C4NPA |
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM4) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum (OFNP) |
| Strength Member | Aramid Yarn |
| Compliance | RoHS, REACH |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor plenum applications. Please refer to our outdoor-rated cable inventory for external plant requirements.
Does this cable include footage markers?
Yes, the standard surface print includes construction details, NEC rating, fiber type, and integrated footage markers.
Can I order this with custom print?
Yes, custom print options can be accommodated upon request.
What is the fiber count?
This specific part number features 12 fibers.
Is this cable compatible with standard mass fusion splicers?
Yes, the ribbon construction is designed for compatibility with standard industry fusion splicing and termination equipment.
