Overview

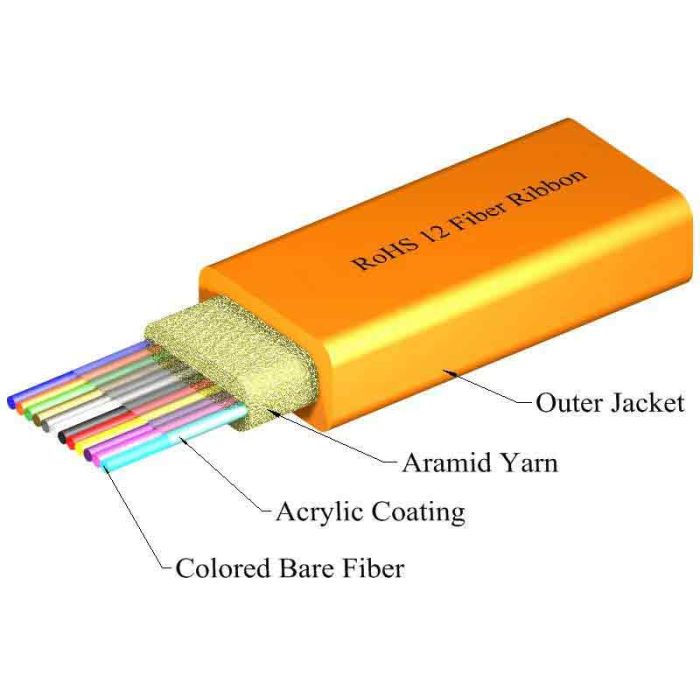

The Light Connection (TLC) Ribbon Cable is an industrial-grade fiber optic solution designed for high-density environments. This 12-fiber multimode cable features a 62.5/125μm core, utilizing Infinicor300 fiber optimized for reliable performance in local area networks and data center backbones.
Constructed with an aramid strength member for mechanical reinforcement, the cable is encased in a plenum-rated outer jacket, making it suitable for air handling spaces. The ribbon design allows for rapid mass fusion splicing, significantly reducing installation time compared to loose-tube alternatives. All materials are compliant with RoHS and REACH standards for environmental safety.
Key Features
-
High-Density Ribbon Design
Features 12 fibers arranged in a ribbon format, enabling efficient mass fusion splicing and reduced installation times. -
Plenum Rated
Constructed with a fire-retardant plenum jacket, making the cable safe for installation in air-handling ducts and plenums. -
Aramid Strength Member
Integrated aramid yarn provides high tensile strength and protection during cable pulling operations. -
Infinicor300 Fiber
High-quality 62.5/125μm multimode fiber provides consistent optical transmission characteristics. -
Industry Standard Color Coding
Fibers are color-coded according to TIA standards for simple, error-free identification and termination. -
Compatibility
Designed to work seamlessly with all current industry-standard termination and splicing hardware.
Applications
- Data Center Backbones
- High-Density Enterprise LANs
- Plenum-rated pathways and air handling spaces
- Mass fusion splicing environments
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5/125μm |
| Fiber Grade | Infinicor300 |
| Cable Type | Ribbon |
| Jacket Material | Plenum (PVC) |
| Strength Member | Aramid Yarn |
| Compliance | RoHS, REACH |
Frequently Asked Questions
What is the benefit of ribbon cable over tight-buffer?
Ribbon cable allows for mass fusion splicing, where all 12 fibers can be spliced simultaneously, drastically reducing the labor time required for high-fiber-count installations.
Can this cable be used in ceiling plenums?
Yes, this cable features a plenum-rated jacket, which is specifically designed to meet fire safety codes for installation in air-handling spaces.
Are the fibers color-coded?
Yes, the fibers utilize standard TIA color coding to facilitate easy identification during termination.
What is the core size of this fiber?
This is a 62.5/125μm multimode fiber.
Can I order this with custom print?
Yes, custom printing can be accommodated. Contact your representative for details on surface print customization.
