TLC Ribbon Cable, 12 Fiber, Singlemode 9/125um, Plenum, Yellow (per meter)

Overview

The Light Connection (TLC) 12-fiber ribbon cable is designed for high-density networking environments where space-efficient routing and rapid termination are essential. This cable features Corning® SMF-28® Ultra fiber, providing high-performance singlemode connectivity for demanding data center and enterprise applications.

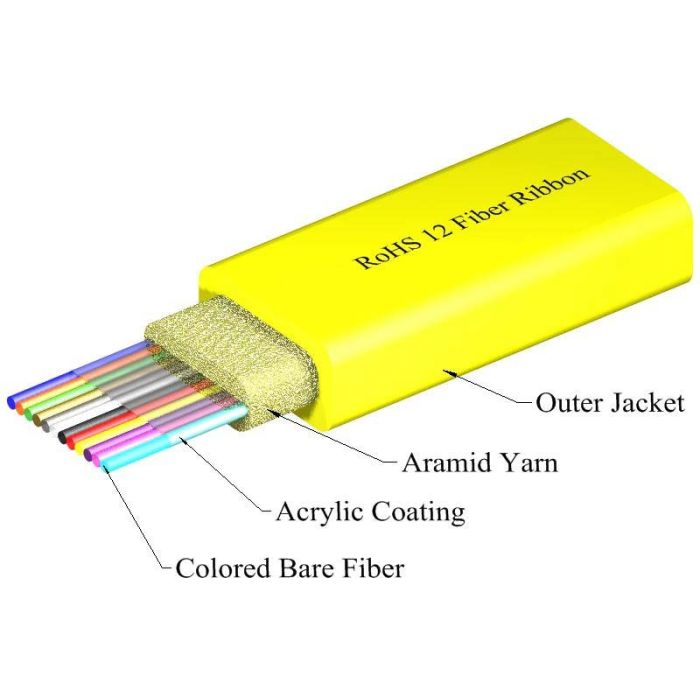

Constructed with an aramid strength member and a robust plenum-rated jacket, this cable is engineered for safety and durability in indoor environments. The ribbon design allows for quick, mass-fusion splicing, significantly reducing installation time and complexity for network technicians.

Key Features

• 12-Fiber Ribbon Configuration
  Facilitates efficient, high-density fiber management and supports rapid mass-fusion splicing.
• Corning® SMF-28® Ultra Fiber
  Utilizes industry-standard, high-performance glass for optimal signal transmission.
• Plenum-Rated Jacket
  Suitable for installation in air-handling spaces, meeting strict fire safety requirements.
• Aramid Strength Member
  Provides internal reinforcement to protect the fibers from tensile stress during installation.
• TIA-Standard Color Coding
  Available in 12 standard colors for intuitive, accurate identification of fiber strands.
• Easy-Peel Ribbon Material
  Allows for clean and simple stripping of the ribbon matrix to minimize damage to fiber coatings.
• Broad Compatibility
  Compatible with a wide range of current industry-standard termination products and enclosures.

Applications

• Data center backbones
• High-density enterprise networks
• Central office distribution
• Mass-fusion splicing environments
• Indoor plenum spaces

Technical Specifications

Frequently Asked Questions

Is this cable suitable for outdoor use?
No, this cable is designed with a plenum-rated jacket for indoor environments. It is not rated for outdoor or OSP (Outside Plant) installations.

Can I order this cable with custom colors?
Yes, custom colors are available via special order to meet specific project identification requirements.

What is the primary benefit of the ribbon design?
The primary benefit is the ability to perform mass-fusion splicing, which significantly speeds up termination processes compared to individual fiber splicing.

Does this cable include footage markers?
Yes, the standard surface print includes construction details, the NEC rating, fiber type, and continuous footage markers.

Is the fiber compatible with other singlemode equipment?
Yes, it utilizes standard 9/125um SMF-28® Ultra fiber, which is compatible with all standard singlemode network hardware.
