Overview

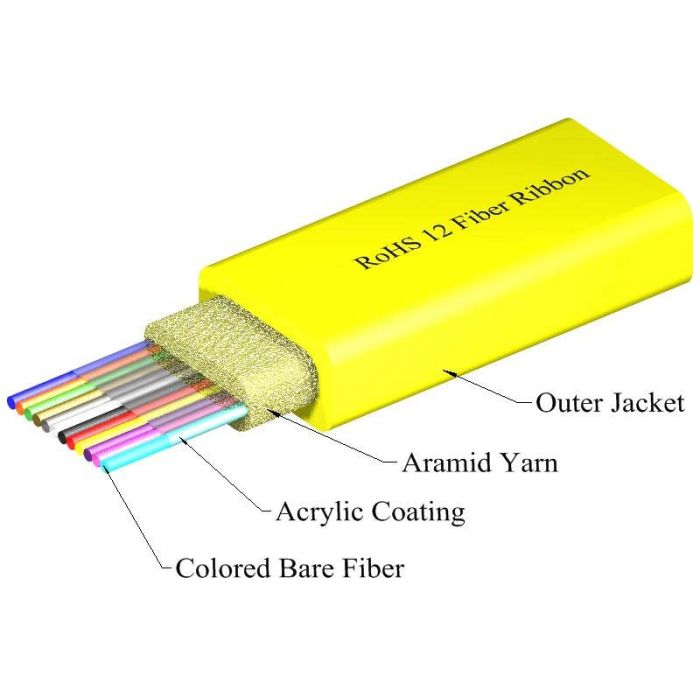

The Light Connection (TLC) Ribbon Cable is a high-density, multi-fiber solution designed for space-constrained environments in data centers and telecommunications networks. It features a 12-fiber count, utilizing high-quality Corning® SMF-28® Ultra fiber to provide superior signal transmission and compatibility with modern network infrastructure.
Engineered for indoor use, this cable is constructed with an aramid strength member to ensure tensile durability during installation, protected by a flame-retardant PVC riser-rated jacket. Its design allows for easy stripping of the ribbon material, facilitating efficient termination and splicing in professional networking environments.
Key Features
-
High-Density Ribbon Design
Features 12 fibers arranged in a single ribbon, enabling rapid mass fusion splicing and reduced installation time. -
Corning® SMF-28® Ultra Fiber
Utilizes industry-standard singlemode fiber for optimal performance and backward compatibility. -
Riser-Rated (OFNR) Jacket
Meets stringent fire safety standards for vertical installations between building floors. -
Aramid Strength Member
Provides essential tensile reinforcement to prevent damage during cable pulls. -
Standard Color Coding
Fibers follow TIA standard color schemes to ensure accurate identification and rapid field termination. -
Easy-Peel Ribbon Material
Designed for clean separation, reducing the risk of fiber damage during stripping.
Applications
- High-density data center backbone cabling
- Central office and headend installations
- Vertical riser applications in enterprise buildings
- Telecommunications distribution networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | The Light Connection (TLC) |
| Fiber Count | 12 |
| Fiber Type | Singlemode 9/125um (Corning® SMF-28® Ultra) |
| Jacket Material | PVC |
| Fire Rating | Riser (OFNR) |
| Jacket Color | Yellow |
| Compliance | RoHS, REACH |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this specific version is rated for Riser (OFNR) indoor installations. Outdoor-rated versions are available separately.
Does this cable use standard TIA color coding?
Yes, it features 12 TIA standard colors for easy identification of individual fibers.
Is the ribbon easy to separate for splicing?
Yes, the ribbon material is designed to peel easily, allowing for efficient termination with industry-standard mass fusion splicers.
Can this be used for vertical cabling?
Yes, the riser-rated jacket allows this cable to be installed in vertical building shafts.
