Overview

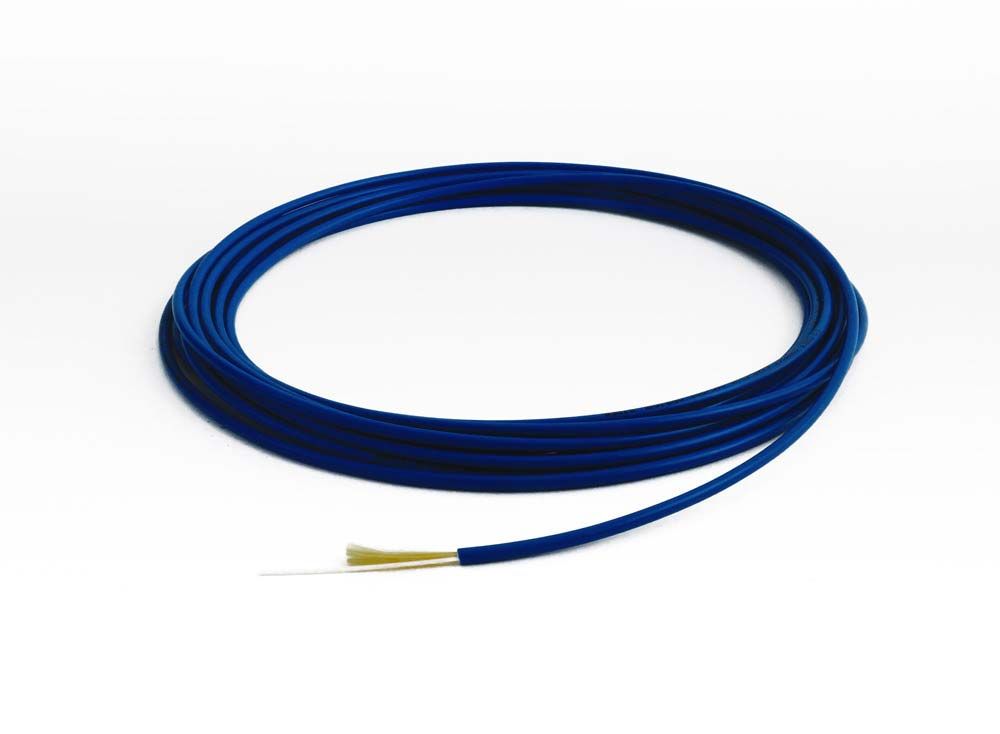

The TLC Simplex Cable is a high-performance fiber optic solution designed for robust indoor networking environments. Featuring a 1.6mm diameter and utilizing premium Corning SMF-28 Ultra singlemode fiber, this cable is engineered for applications requiring high signal integrity and precision. It is constructed with a single tight-buffered optical fiber protected by aramid yarn and encased in a durable, riser-rated PVC outer jacket.
This cable is ideal for use in internal building infrastructures where fire safety standards are paramount. Built by The Light Connection, an ISO 9001-2015 certified facility, the cable ensures reliable performance and compliance with global environmental standards.
Key Features
-
Corning SMF-28 Ultra Fiber
Provides exceptional signal performance and compatibility with existing fiber networks. -
1.6mm Compact Diameter
Optimized for high-density patching and installation in space-constrained environments. -
Riser-Rated PVC Jacket
Complies with necessary fire safety standards for vertical installation pathways within buildings. -

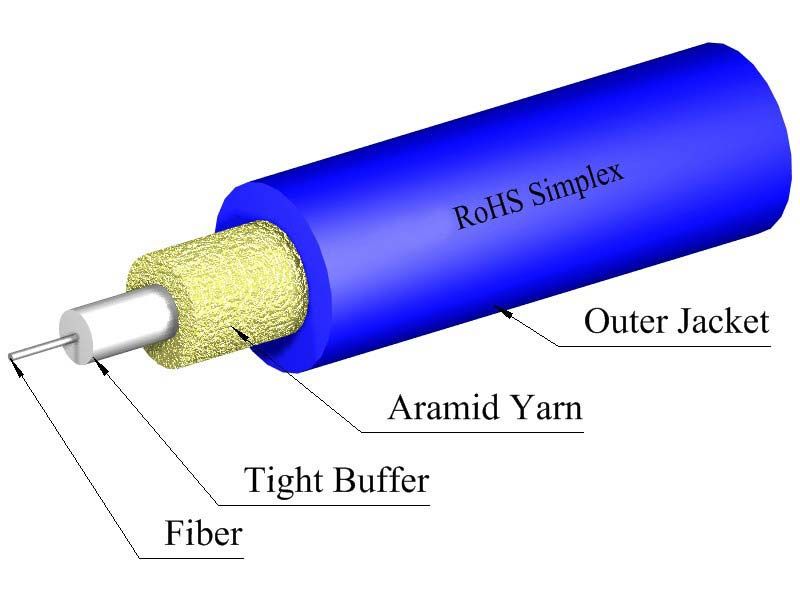

Tight-Buffered Construction
Ensures easy termination and protection of the fiber strand during handling. -
Aramid Yarn Reinforcement
Offers high tensile strength to prevent damage during cable installation and pulling. -
RoHS and REACH Compliant
Materials meet stringent EU safety and environmental regulations.
Applications
- Premise wiring
- Fiber optic patch cord fabrication
- Internal data center cross-connects
- Vertical riser applications
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | The Light Connection (TLC) |
| Fiber Type | Singlemode (9/125um) |
| Fiber Grade | Corning SMF-28 Ultra |
| Cable Type | Simplex |
| Outer Diameter | 1.6mm |
| Jacket Material | Riser-Rated PVC |
| Color | Blue |
| Standards | RoHS, REACH, ISO 9001-2015 |
Frequently Asked Questions
What does the riser rating mean?
A Riser-rated cable is designed to be installed in vertical shafts and non-plenum spaces, meeting specific fire safety requirements to prevent the spread of flames between floors.
Is this cable suitable for outdoor use?
No, this cable is designed for indoor use. Its PVC jacket is not rated for exposure to environmental conditions found in outside plant applications.
Can I order this in custom colors?
Yes, custom colored jackets and custom printing on the cable jacket are available upon request.
What is the fiber count?
This is a simplex cable, meaning it contains a single fiber strand.
Is the fiber compatible with industry-standard connectors?
Yes, the 9/125um Corning SMF-28 Ultra fiber is compatible with all standard singlemode fiber optic connectors.
