Overview

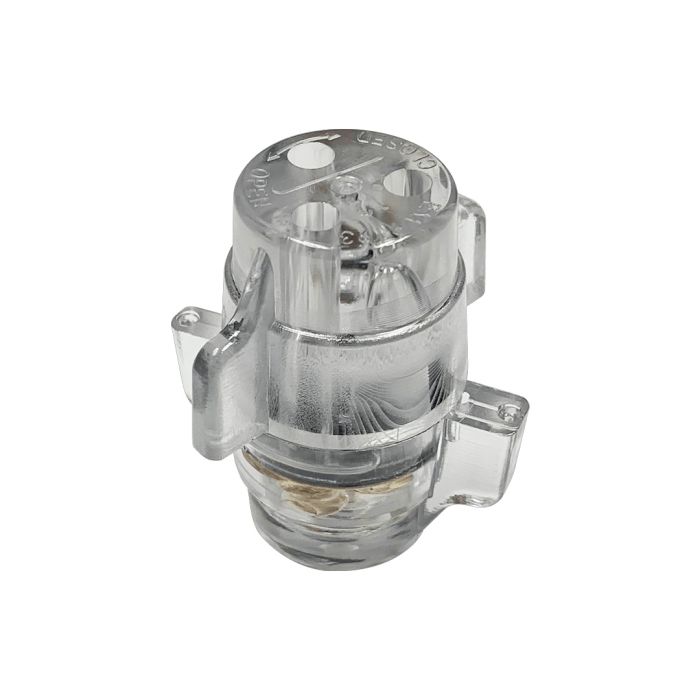

The Trident Locking Barrel Connector (12 Gauge) is a specialized electrical component designed for efficient, reliable wire joining in challenging environments. Featuring an innovative twist-and-lock mechanism, this connector facilitates quick installation without the need for manual wire stripping.
Engineered for durability, the connector utilizes waterproof construction that resists degradation from exposure to moisture, oxidation, rust, and various chemicals. It is ideal for field applications where a secure, long-term connection is required under harsh conditions.
Downloads
Key Features
-
Waterproof Construction
Protects the connection from moisture, preventing corrosion and ensuring long-term signal integrity. -
Tool-Free Installation
Features a twist-and-lock design that eliminates the need for wire stripping, significantly reducing labor time. -
Chemical Resistance
Engineered to withstand exposure to harsh chemicals, making it suitable for industrial environments. -
Broad Wire Gauge Compatibility
Versatile design accommodates wire gauges ranging from 10 to 14 AWG for project flexibility. -
Secure Locking Mechanism
Provides a high-tension lock that ensures the wires remain firmly in place, even under vibration or stress.
Applications
- Field wire terminations
- Industrial electrical projects
- Harsh environment networking
- Outdoor cable splicing
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | LBC12 |
| Wire Gauge Compatibility | 10-14 AWG |
| Installation Method | Twist-and-Lock (90°) |
| Environmental Rating | Waterproof |
Frequently Asked Questions
Does this connector require wire stripping?
No, the connector utilizes an IDC (Insulation Displacement Connector) design that makes contact with the wire without stripping the jacket.
What wire gauges are compatible with this model?
This specific connector is compatible with wire gauges from 10 to 14 AWG.
How do I install the wire?
Simply insert the wires into the barrel and twist 90 degrees to lock the wires into position.
Is this connector suitable for outdoor use?
Yes, the construction is waterproof and resistant to rust and oxidation, making it suitable for outdoor environments.
Does it provide a vibration-proof connection?
Yes, the internal locking mechanism provides a tight, secure fit designed to keep wires firmly in place.
