Overview

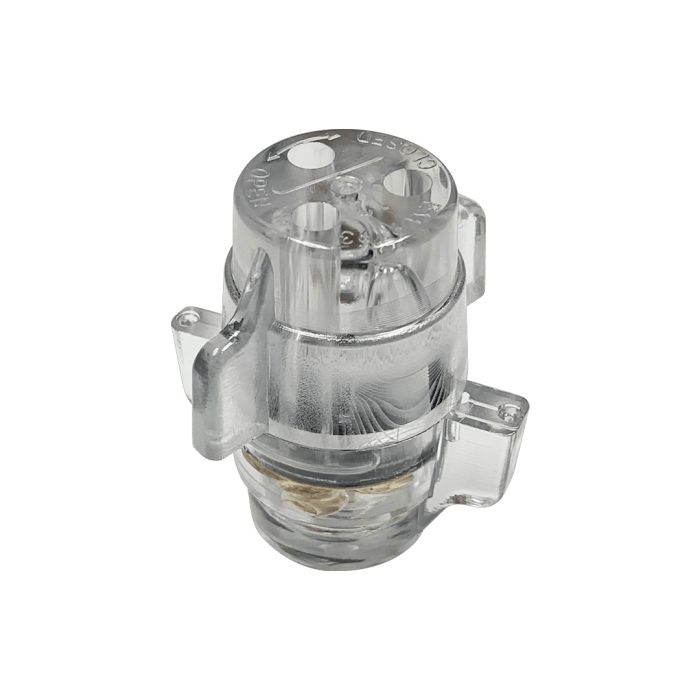

The Trident Locking Barrel Connector (AWG IDC 14 Gauge) is an insulation displacement connector (IDC) engineered for efficient, reliable wire joining without the need for manual stripping. This connector features a unique twist-and-lock mechanism that ensures a secure, permanent connection in a variety of wiring applications.
Designed for performance in demanding conditions, this connector features waterproof construction, making it resistant to water, oxidation, rust, and chemical degradation. It provides a tightly locked connection that remains stable even when subject to movement or vibration, making it an ideal choice for outdoor or industrial environments.
Key Features
-
Insulation Displacement Design
Connects wires without requiring the removal of insulation, saving time and reducing the risk of conductor damage during installation. -
Waterproof Construction
Protects the connection from environmental factors such as water, chemicals, and oxidation, ensuring long-term signal integrity. -
Twist-and-Lock Mechanism
Allows for a 90-degree twist-to-lock installation, providing a secure, high-contact-pressure connection. -
Wide Wire Compatibility
Designed to accommodate wire gauges from 10 to 14 AWG, offering flexibility for various electrical and networking installation requirements. -
Corrosion Resistance
Materials prevent degradation from exposure to harsh environments, extending the operational life of the connection point. -
Vibration-Proof Stability
Maintains a tight, continuous electrical contact that is impervious to physical disturbances and fills replacements.
Applications
- Outside plant (OSP) telecommunications wiring
- Outdoor lighting and control systems
- Industrial automation and sensor connections
- Landscape and irrigation control wiring
- Harsh environment electrical terminations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Trident |
| Part Number | LBC14 |
| Connector Type | Locking Barrel (IDC) |
| Wire Gauge Compatibility | 10 to 14 AWG |
| Termination Method | Insulation Displacement (Twist-to-Lock) |
| Environmental Protection | Waterproof |
Frequently Asked Questions
Does this connector require me to strip the wire insulation?
No, the IDC (Insulation Displacement Connector) technology allows you to insert the wires directly without stripping, as the internal contacts penetrate the insulation upon locking.
What wire gauges can I use with this model?
This specific model is designed to work with wire gauges ranging from 10 to 14 AWG.
How do I secure the wire once it is inserted?
Simply insert the wires into the barrel and twist the connector 90 degrees to lock the wires firmly into place.
Is this connector suitable for outdoor use?
Yes, the connector features a waterproof construction resistant to water, oxidation, and chemicals.
Will the connection come loose over time?
No, the locking barrel design provides a tightly locked, secure connection that is resistant to movement and vibration.
