Overview

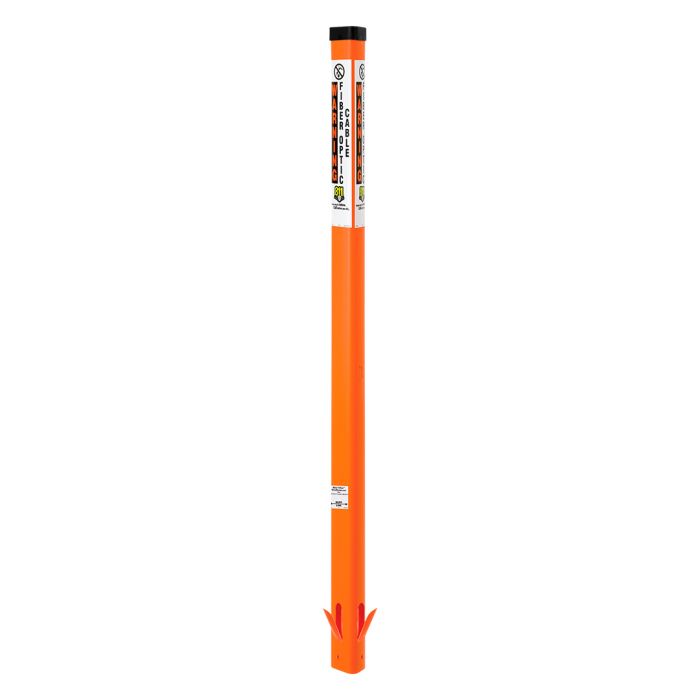

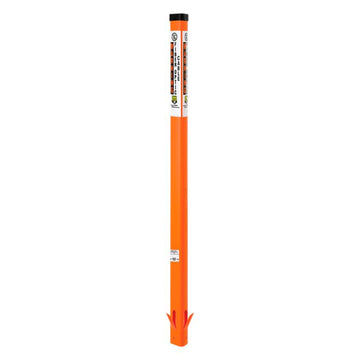

The TriView 5-Term Test Station™ is an advanced utility marker post designed for reliable pipeline and utility monitoring. Featuring a 72-inch height and a high-visibility orange base with a protective black cap, this unit ensures clear site identification in diverse field environments. The station is engineered with 360-degree visibility, allowing utility technicians to identify warning messages from any direction.
Constructed from RhinoPoly®, a proprietary blend of durable thermoplastics, the TriView is built to withstand harsh outdoor conditions. It is UV-stable and designed for long-term service life. The system integrates the patented TriGrip Anchor™ to provide superior soil retention, ensuring the post remains securely locked in the ground despite ground movement or environmental stressors.
Key Features
-
360-Degree Visibility
The post design allows for warning messages to be viewed from all angles, improving site safety and awareness. -
RhinoPoly® Construction
Manufactured from a proprietary thermoplastic blend that offers exceptional durability and impact resistance. -
TriGrip Anchor™
A patented anchoring system that provides a robust lock into the ground, preventing pull-out or shifting. -
UV Stable Material
The material composition resists degradation from long-term exposure to sunlight, ensuring color retention and structural integrity. -
11-Hole Terminal Pattern
Features an industry-standard hole pattern for flexible configuration of multiple terminals to suit specific site requirements. -
Stainless-Steel Terminals
Equipped with two internal stainless-steel terminals as standard for reliable electrical connectivity. -
Removable Cap
The design includes a removable cap for easy access to internal components during inspections or maintenance.
Applications
- Pipeline monitoring
- Utility line identification
- Ground-level electrical monitoring
- Hazardous area marking
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Rhino |
| Part Number | TVTI72OB5 |
| Height | 72 inches |
| Base Color | Orange |
| Cap Color | Black |
| Material | RhinoPoly® Thermoplastic |
| Terminal Count | 2 internal stainless-steel terminals |
| Terminal Pattern | 11-hole pattern (1 inch on center) |
| Warranty | 10-year outdoor warranty |
Frequently Asked Questions
What is the purpose of the 11-hole pattern?
The standard 11-hole pattern allows users to install multiple terminals or accessories in various custom configurations.
Is the post resistant to sunlight?
Yes, the unit is constructed with UV-stable materials designed for 10+ years of outdoor use.
How does the anchor system function?
It uses the patented TriGrip Anchor™ design to lock the post securely into the ground, reducing the risk of removal or movement.
Are decals included with the post?
No, decals for the TriView test station are sold separately.
Can I access the internal terminals after installation?
Yes, the test station features a removable cap that provides quick and easy access to the internal terminal components.
