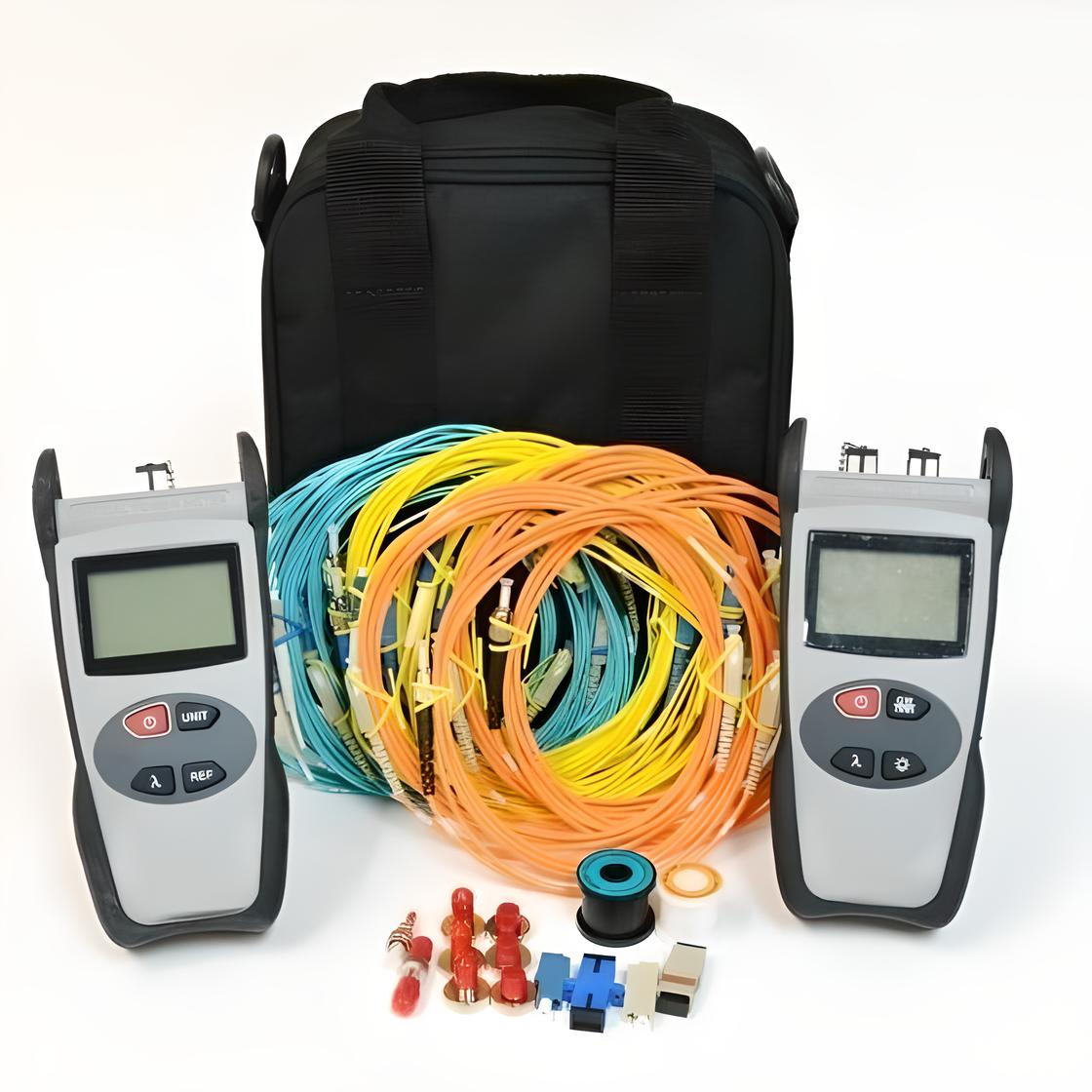

Two-Piece Test Kit: E-Series Power Meter with SM/MM Light Source (850/1300/1310/1550nm) & Reference Cords/Adapters

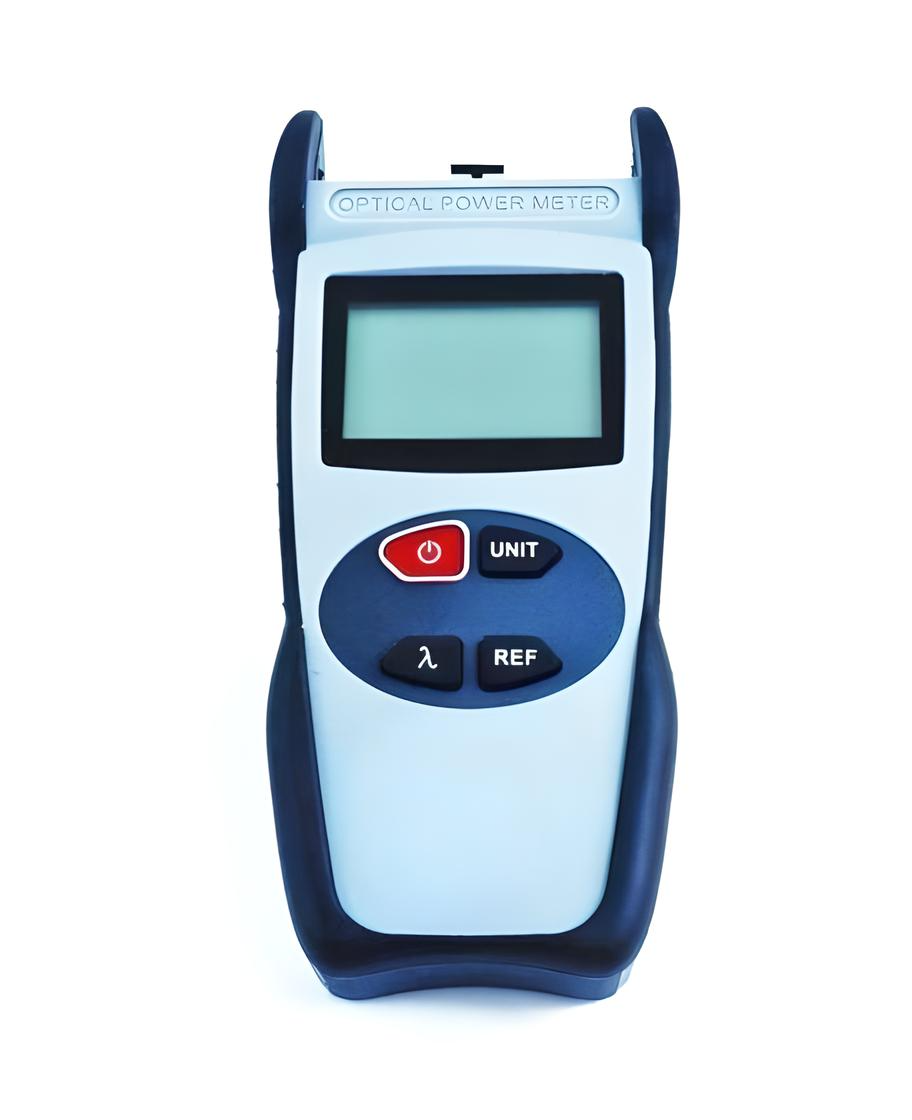

Power Meter

This power meter is meant to meet the high demands of fiber optic testing. It can be used for the absolute power measurement and relative measurement
of the link loss in dB. Its compact size, user friendly interface, broad power measurement range and precision makes it a high performance testing device ideal

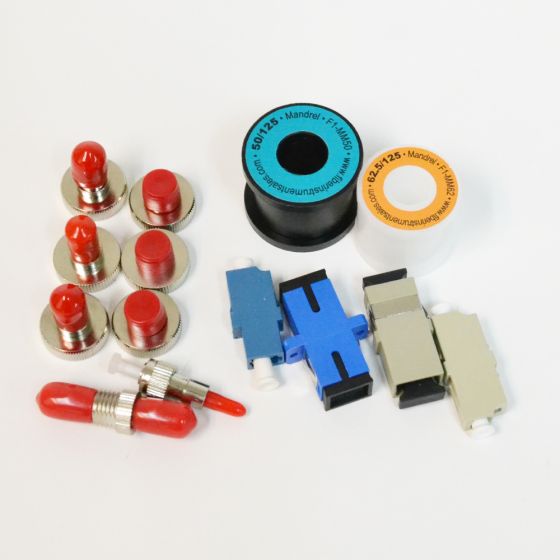

for network testing. Different style adapter caps are included.

• 0.01dB Resolution

• Zero Set Reference Storage Ability at Each Wavelength

• 10 minute Auto Shut Off, 40-Hour Battery Life

• Battery Level Indicator

• Protective Carrying Case

• Convenient Backlight screen

• 3 Alkaline AA Batteries

Light Source

This light sources include a dual wavelength multi-mode or single mode light source. When used with the our Power Meter, together they provide accurate test
solutions for fiber optic networks. Interchangable adapters allow flexibility with reference cords.

SPECIFICATIONS

Optical Power Meter
Wavelengths:  850, 1300, 1310, 1490, 1550, 1625nm
Detector:  InGaAs Dynamic
Dynamic Range: -70dBm to +6dBm
Typical for Singlemode: CATV Model -45dBm to +23dBm
Accuracy:  ±5%
Operating Temp. : -10° to 60°C
Battery Alkaline:  3xAA , 1.5v
Dimensions:  8” L x 3 1/2”W x 2” D

Optical Light Source

LED: 850nm & 1300nm
Laser:  1310nm & 1550nm
Output Power:  -7dBm
Modulation Modes:  Continuous Wave, 270, 1kHz, 2kHz
Operating Temp.:  -10° to 56°C
Battery:  Alkaline, 3xAA , 1.5v
Dimensions:  8” L x 3 1/2”W x 2” D
