Overview

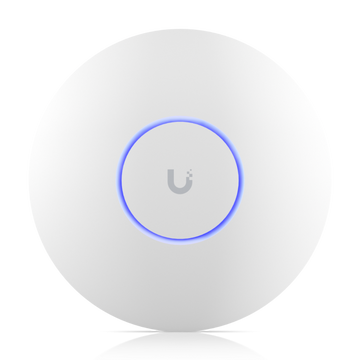

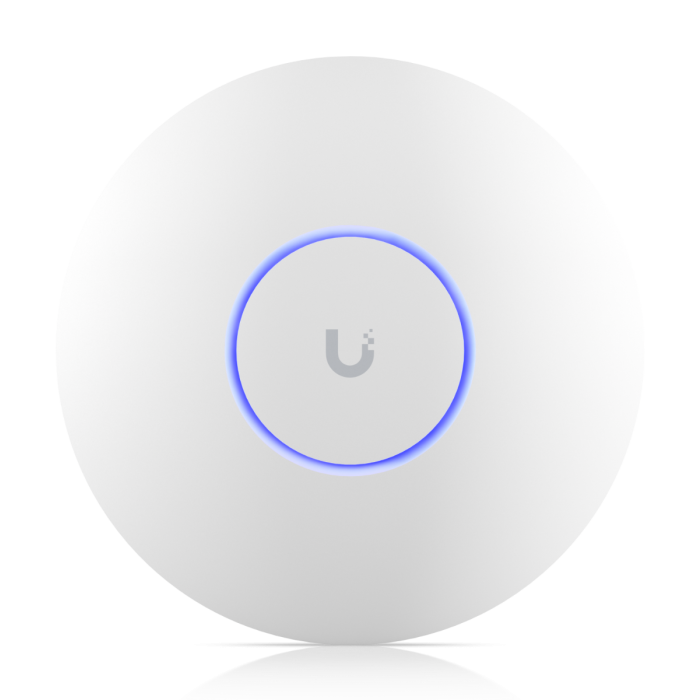

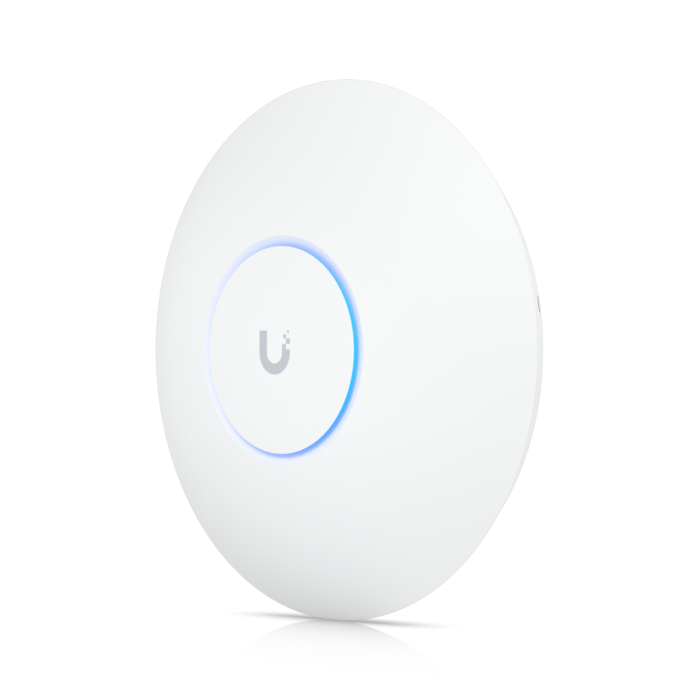

The Ubiquiti Compact Access Point (U6-Pro) is a high-performance, ceiling-mounted WiFi 6 access point specifically engineered for large office environments. It provides reliable connectivity for high-density deployments, supporting aggregate throughput rates of up to 5.3 Gbps across both 2.4 GHz and 5 GHz frequency bands.
Constructed for professional indoor deployment, this access point offers a coverage area of approximately 140 m² (1,500 ft²) and is capable of managing over 350 concurrently connected devices. The unit is powered via Power over Ethernet (PoE), simplifying installation by integrating power and data delivery through a single cable.
Key Features
-
WiFi 6 Support
Operates on both 2.4 GHz and 5 GHz bands to provide high-efficiency wireless networking in busy environments. -
High Aggregate Throughput
Features a 5.3 Gbps aggregate throughput rate to support data-intensive applications and high-bandwidth users. -
4x4 MIMO Technology
Utilizes advanced multi-input multi-output technology to increase capacity and signal reliability for connected devices. -
PoE Powered
Utilizes Power over Ethernet for streamlined installation and efficient cable management. -
High Device Capacity
Capable of supporting 350+ simultaneously connected devices without degradation in performance. -
Compact Form Factor
Designed for aesthetic, unobtrusive ceiling mounting in professional settings.
Applications
- Large corporate office networks
- Enterprise campus environments
- High-density commercial spaces
- Data center management offices
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6-Pro |
| Part Number | U6PRO |
| WiFi Standard | WiFi 6 |
| Throughput | 5.3 Gbps aggregate |
| Port | (1) GbE RJ45 (PoE In) |
| Coverage Area | 140 m² (1,500 ft²) |
| Device Capacity | 350+ devices |
| MIMO | 4x4 MIMO |
| Dimensions | 7.76" x 1.38" |
| Weight | 1.32 lb (with mount) |
Frequently Asked Questions
What is the maximum number of devices this unit can support?
The U6-Pro is designed to support 350+ simultaneously connected devices.
How is the unit powered?
The device is powered using Power over Ethernet (PoE) via its GbE RJ45 port.
What WiFi standard does this device support?
This device supports the WiFi 6 standard across both 2.4 GHz and 5 GHz bands.
Is this access point designed for ceiling mounting?
Yes, it is a ceiling-mounted unit optimized for professional indoor environments.
What is the throughput of this access point?
It features an aggregate throughput rate of 5.3 Gbps.
