Overview

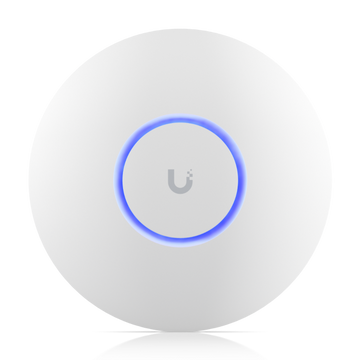

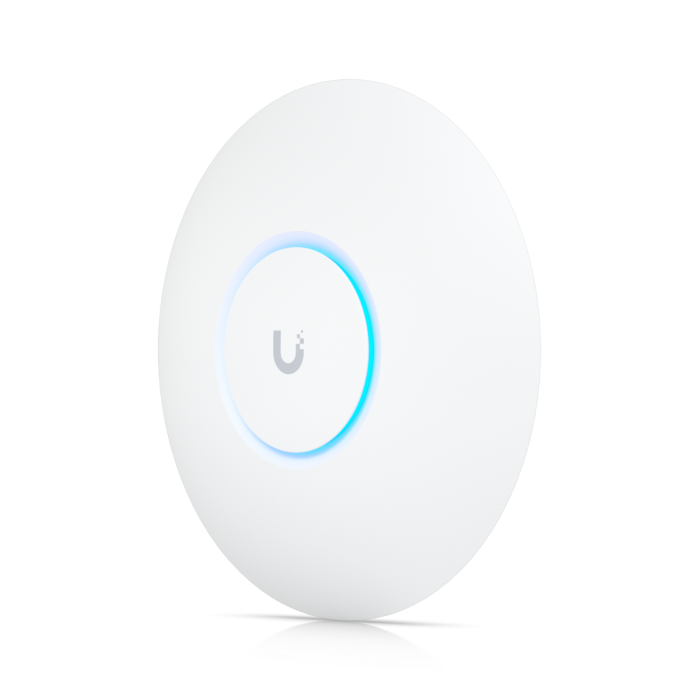

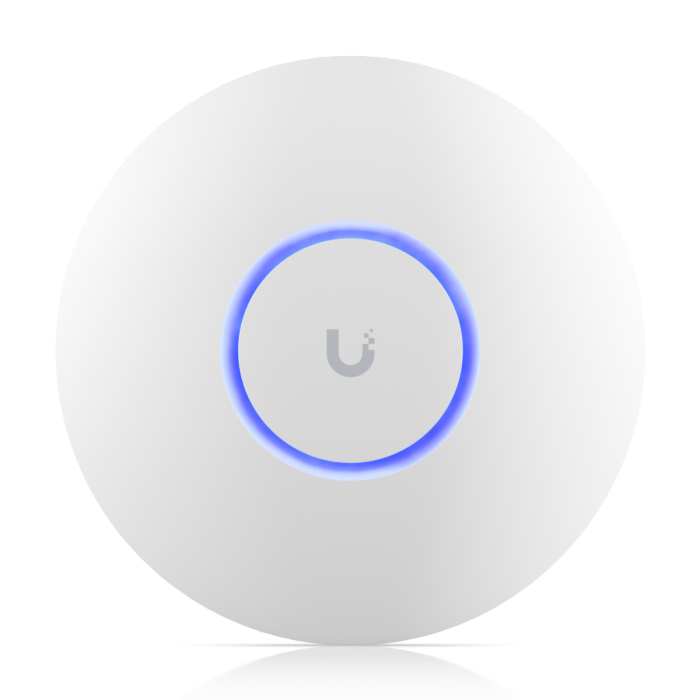

The Ubiquiti Compact Access Point U6+ is a high-performance wireless solution designed to deliver reliable connectivity in professional environments. Engineered to improve upon the U6 Lite, this access point features advanced dual-band WiFi 6 technology to provide increased capacity and efficiency for modern, high-density networks.
This compact device is ideal for small to medium-sized business applications, offering expansive coverage and the ability to support numerous concurrent client devices. It utilizes a single Gigabit Ethernet input with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable.
Key Features
-
WiFi 6 Support
Features dual-band 802.11ax capability, enabling faster speeds and better performance in congested environments. -
High-Throughput Performance
Delivers an aggregate throughput rate of 3.0 Gbps to handle bandwidth-intensive tasks effectively. -
Wide Coverage Area
Provides reliable wireless coverage reaching up to 140 m² (1,500 ft²). -
High Device Density
Supports 300+ simultaneously connected devices, making it suitable for busy professional environments. -
PoE Powered
Equipped with a Gigabit PoE RJ45 input for streamlined deployment using existing network infrastructure. -
Compact Form Factor
Features a space-saving design with dimensions of 6.3" x 1.3" for discreet mounting.
Applications
- Small and medium-sized office networks
- Retail environments
- Hospitality and public access areas
- Modern high-density data spaces
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6+ |
| Technology | WiFi 6 (802.11ax) |
| Frequency Bands | Dual-band (2.4 / 5 GHz) |
| Aggregate Throughput | 3.0 Gbps |
| MIMO Support | 2x2 MIMO |
| Connection Capacity | 300+ devices |
| Coverage Area | 140 m² (1,500 ft²) |
| Connectivity Input | 1x Gigabit Ethernet, PoE RJ45 |
| Dimensions | 6.3" x 1.3" |
| Weight | 0.91 lb |
Frequently Asked Questions
Does this unit require an external power supply?
No, it is powered using PoE (Power over Ethernet) through the RJ45 port.
How many devices can connect to this access point?
The U6+ is designed to support 300+ connected devices simultaneously.
Is this access point dual-band?
Yes, it supports both 2.4 GHz and 5 GHz frequency bands.
What is the maximum throughput of the U6+?
The aggregate throughput rate is 3.0 Gbps.
How large is the coverage area?
This device provides effective coverage for approximately 140 m² (1,500 ft²).
