Overview

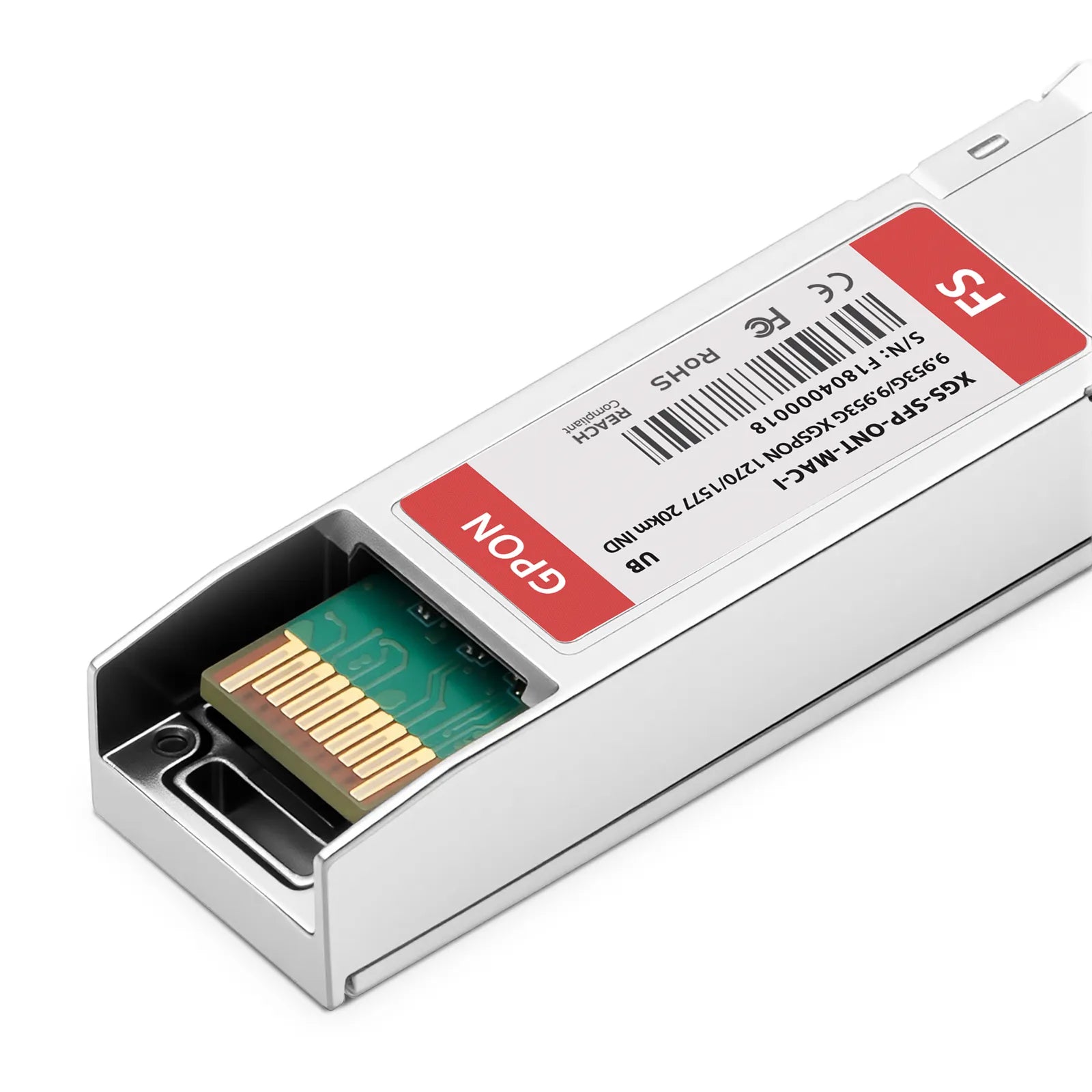

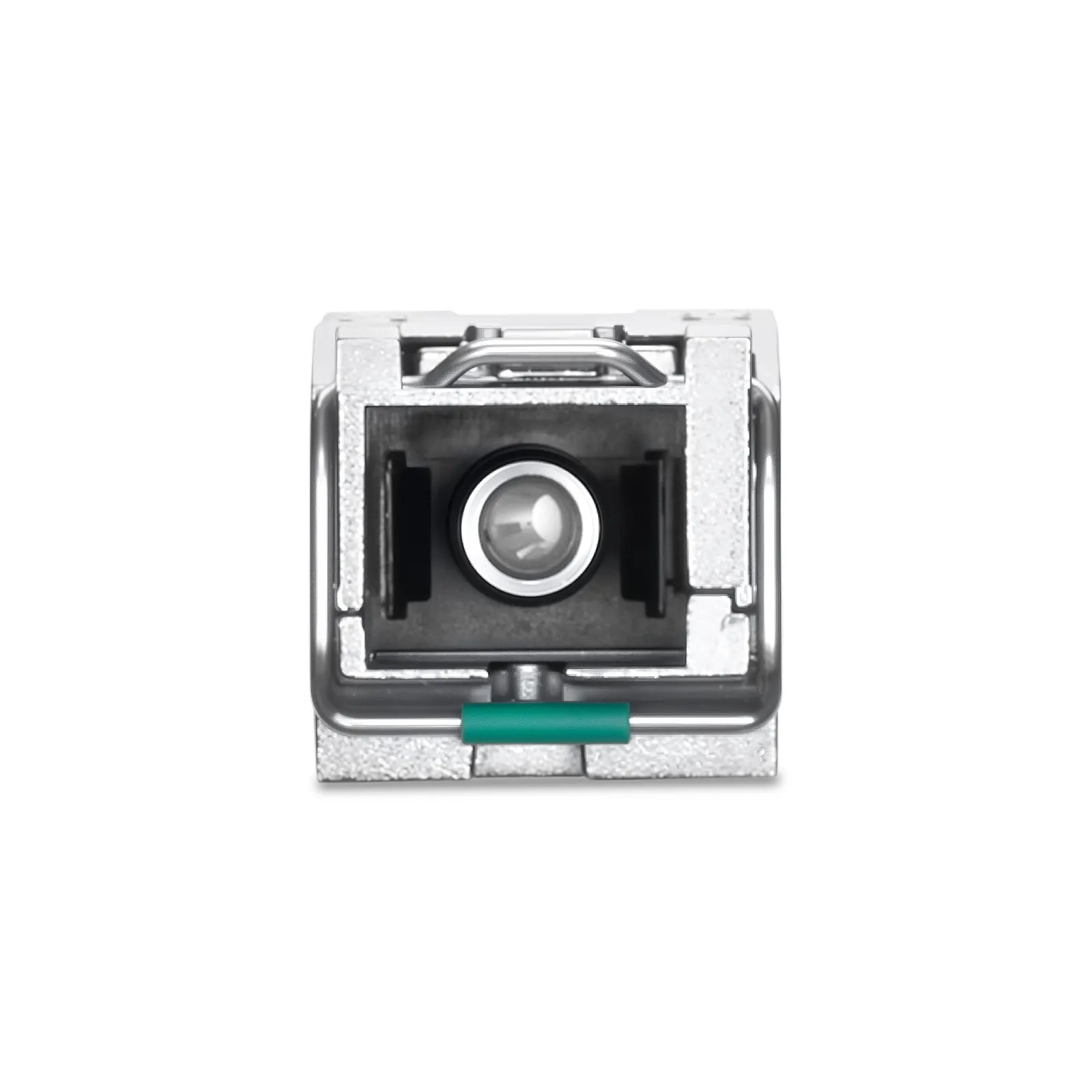

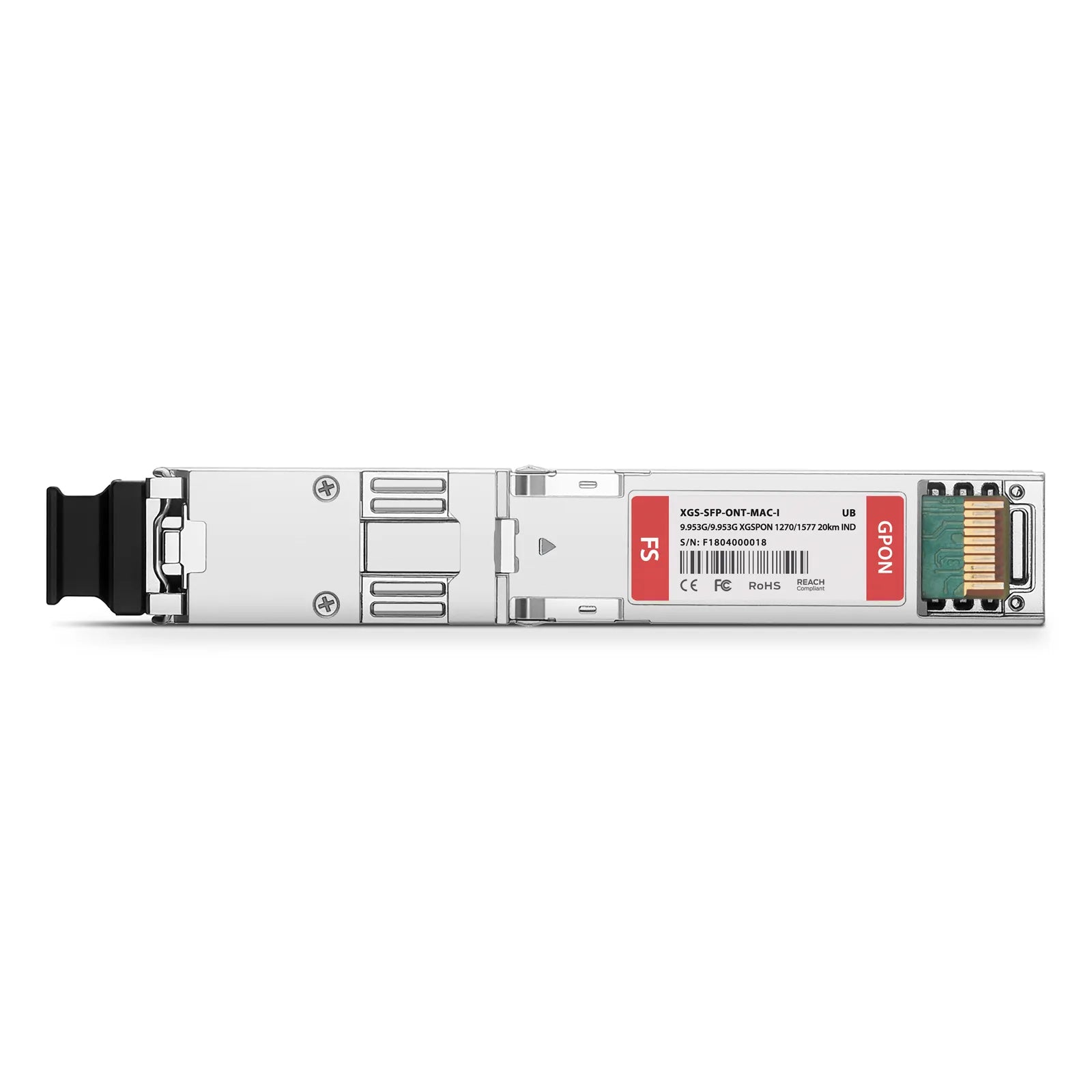

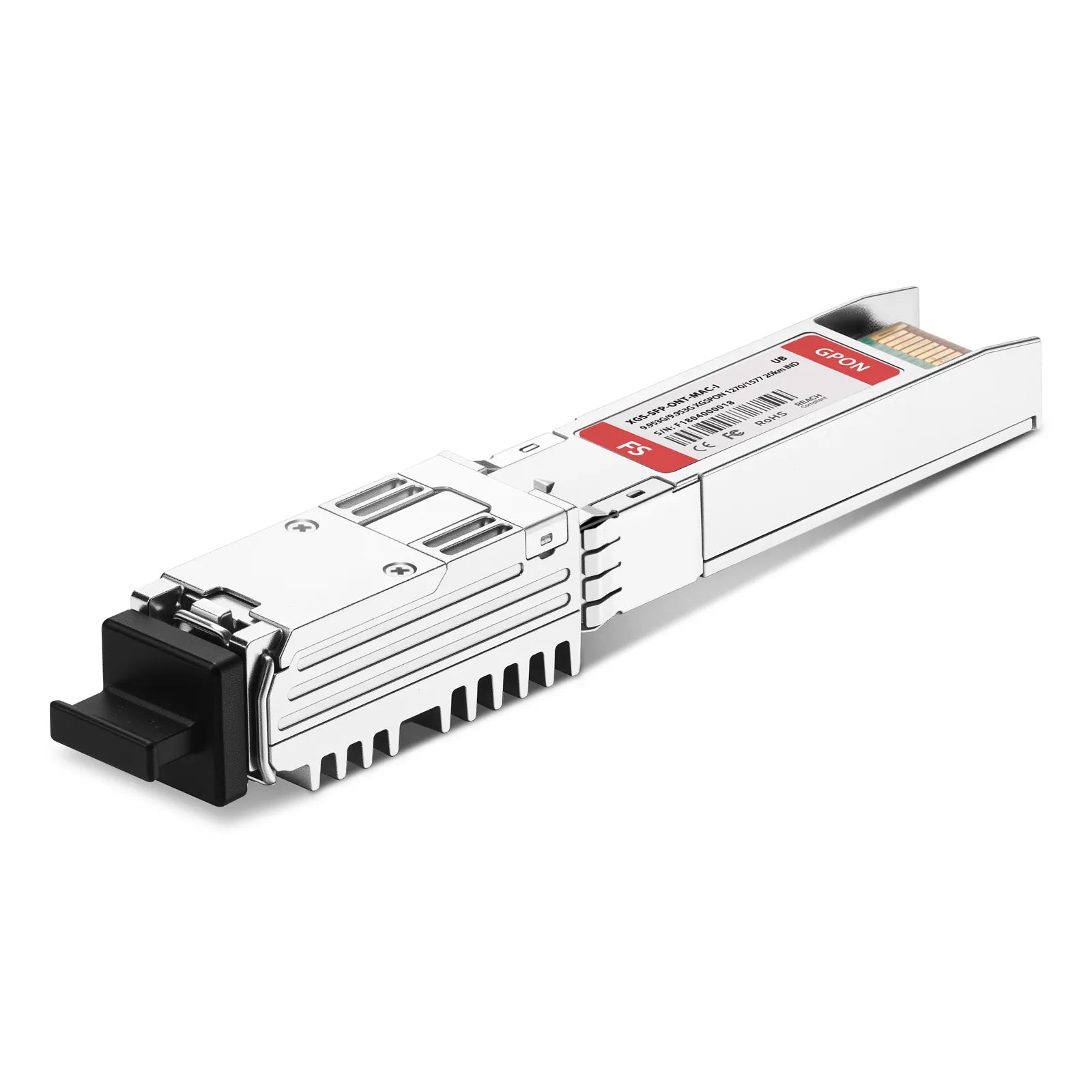

The XGS-SFP-ONT-MAC-I is an SFP+ transceiver module engineered for 10-Gigabit capable symmetric passive optical network (XGS-PON) systems. It utilizes bidirectional transmission over a single-mode optical fiber with an integrated XGSPON MAC and OMCI stack to support full FCAPS management functionality. This module provides a symmetric data rate of 9.953 Gbps for both upstream and downstream traffic, facilitating network connectivity over distances up to 20km.

Key Features

• Integrated Management Interfaces: Includes both Web GUI and SSH support, allowing for remote network supervision, configuration of key parameters, and maintenance from any location.
• Industrial-Grade Temperature Range: Operates reliably within an ambient temperature range of -40°C to 85°C, making it suitable for deployment in harsh outdoor environments.
• Symmetric 10G Data Transmission: Enables a 9.953 Gbps upstream and downstream throughput to meet high-bandwidth requirements in FTTx and wireless backhaul applications.
• Standard-Compliant Architecture: Fully compliant with ITU-T G.9807.1 and SFP+ MSA standards, ensuring interoperability with standard XGS-PON OLT equipment.

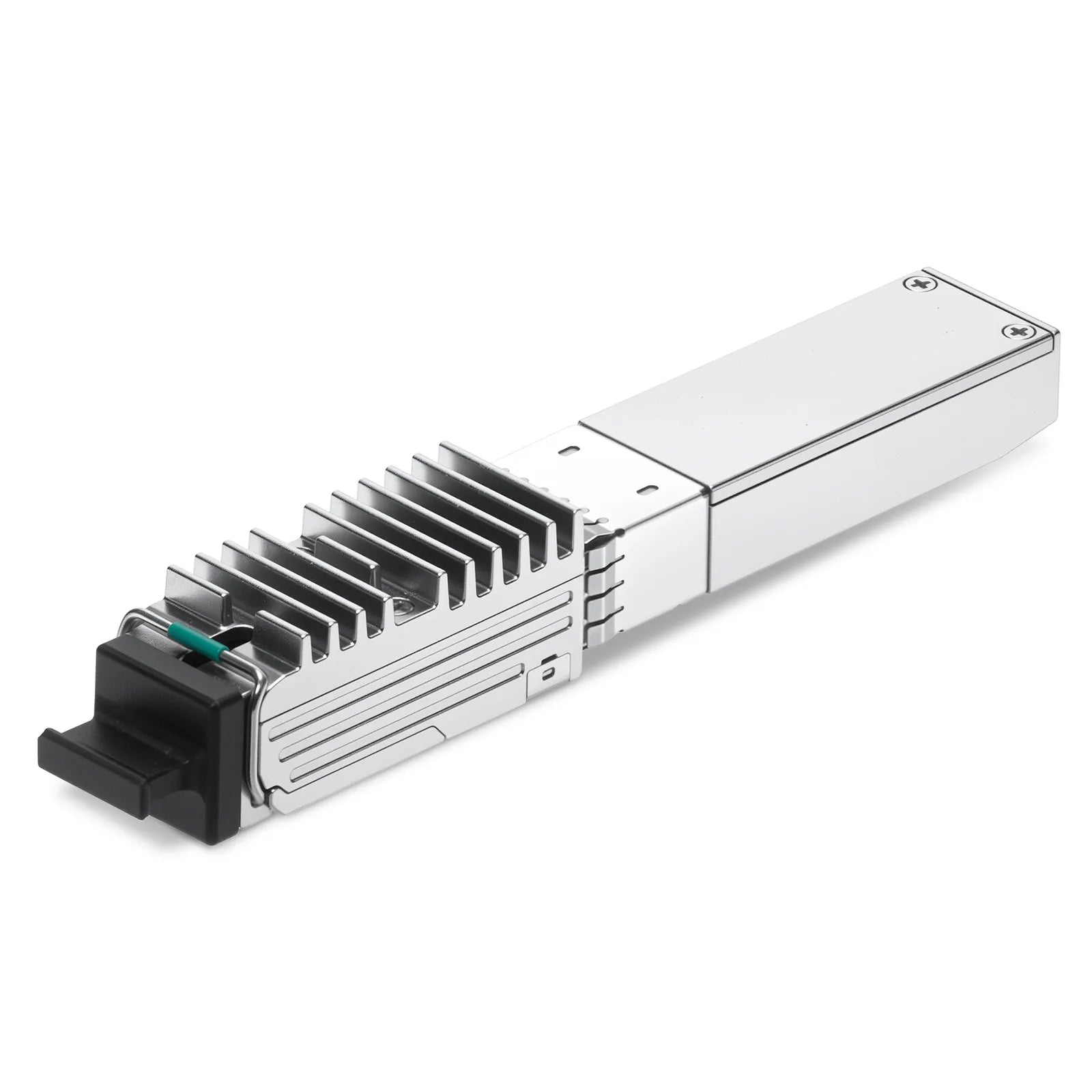

• TO-Can Hermetic Packaging: Utilizes a TO-can package design to provide airtight protection and efficient heat dissipation for the internal DFB laser and APD receiver components.
