Overview

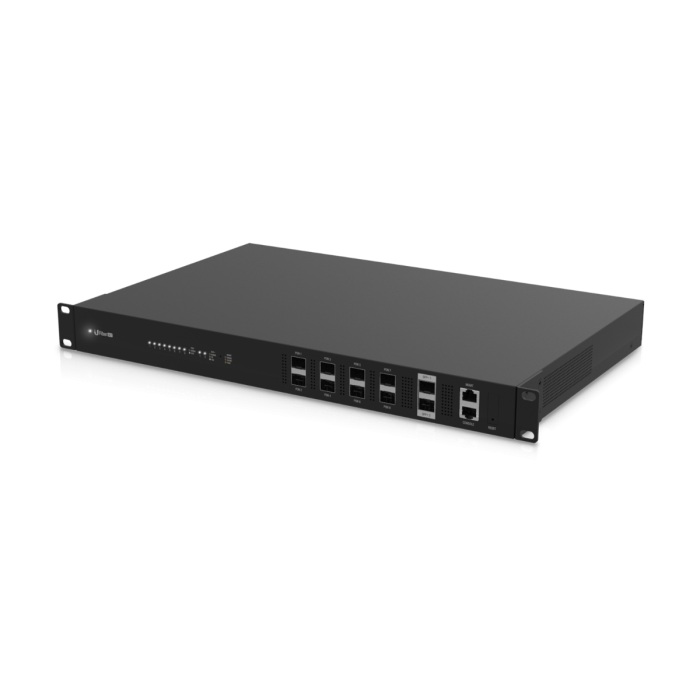

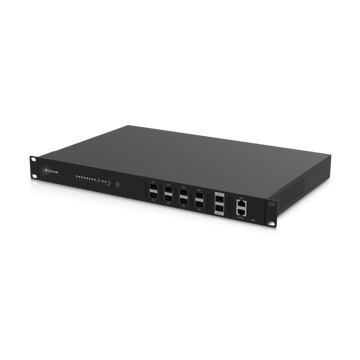

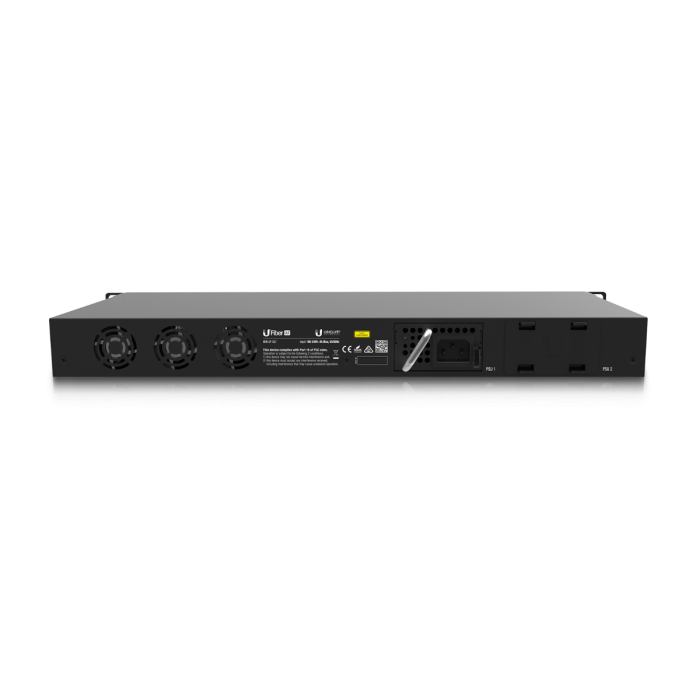

The Ubiquiti Eight-Port GPON Optical Line Terminal (OLT) is a high-capacity fiber management device designed to support robust fiber internet services for service providers and large-scale deployments. Engineered for efficiency and reliability, this OLT manages up to 1,024 clients across its eight ports, providing 128 clients per individual port.
This terminal is built for professional network environments, featuring a 1U rack-mountable chassis that facilitates easy integration into standard server racks. With integrated power redundancy support and high-speed uplink capabilities, it ensures consistent network availability and performance in demanding deployment scenarios.
Key Features
-
High Client Capacity
Supports up to 1,024 clients total, allowing for scalable subscriber growth. -
Eight GPON Ports
Provides eight dedicated GbE GPON ports for flexible network architecture. -
10G SFP+ Uplinks
Equipped with two 10G SFP+ ports for high-speed network connectivity and backhaul. -
Rack-Mount Design
Compact 1U form factor ensures efficient use of rack space in data centers or enclosures. -
Power Redundancy
Supports redundant power configurations to minimize downtime during electrical faults. -
Long-Range Connectivity
Establishes stable fiber links at distances up to 20 km, suitable for diverse geographic coverage. -
High Stream Capacity
Features a throughput capacity of 2.488 Gbps downstream and 1.244 Gbps upstream.
Applications
- Fiber-to-the-Home (FTTH) networks
- Enterprise fiber broadband distribution
- Multi-tenant building fiber connectivity
- ISP service edge management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | UFOLT |
| Form Factor | 1U Rack Mount |
| GPON Ports | 8 |
| Uplink Ports | 2 x 10G SFP+ |
| Client Capacity | 1,024 total (128 per port) |
| Downstream Capacity | 2.488 Gbps |
| Upstream Capacity | 1.244 Gbps |
| Max Link Distance | 20 km |
Frequently Asked Questions
Are SFP modules included with the OLT?
No, SFPs are not included and must be purchased separately.
What is the maximum number of clients per port?
The OLT supports up to 128 clients per GPON port.
Does this device support power redundancy?
Yes, it supports power redundancy for increased reliability.
What is the physical size of the unit?
It is designed as a 1U rack-mountable unit.
What is the maximum reach of the GPON links?
The terminal supports fiber links of up to 20 km.
