Overview

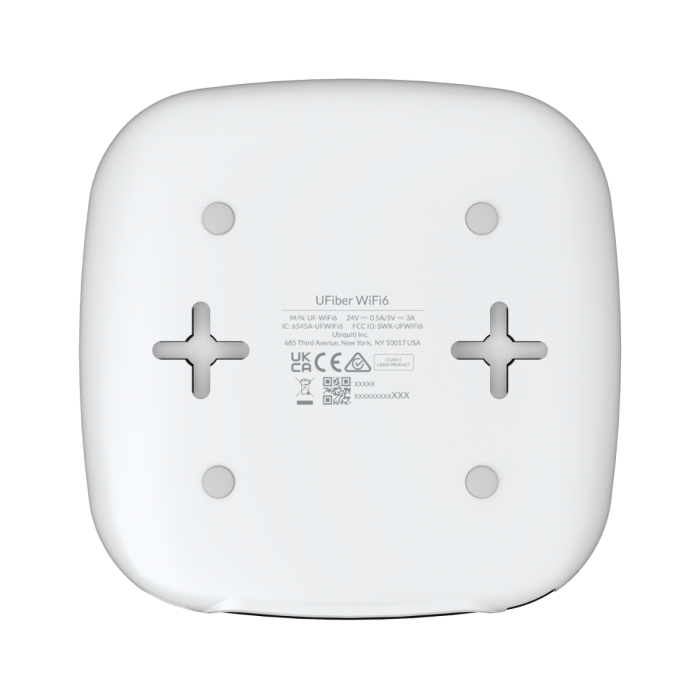

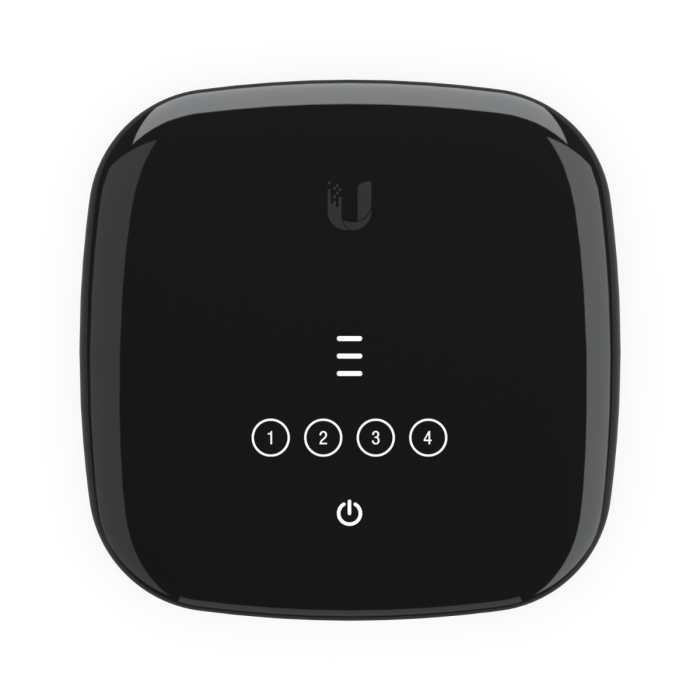

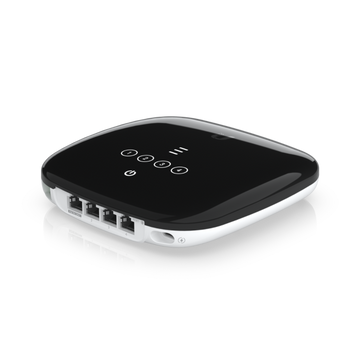

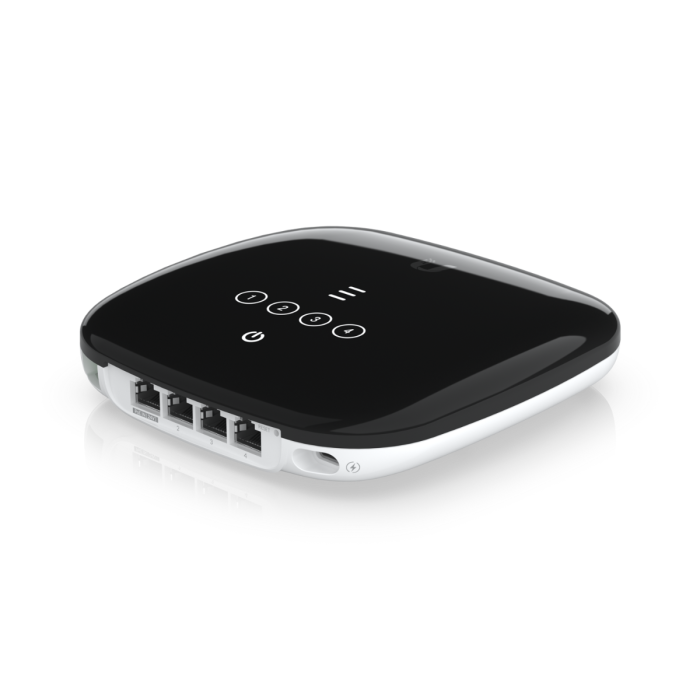

The Ubiquiti GPON Customer-Premises Equipment (CPE) with WiFi6 support is a high-performance networking device designed to deliver high-speed fiber-to-the-home (FTTH) connectivity. This unit integrates a GPON WAN port, a 4-port Gigabit Ethernet switch, and advanced WiFi6 wireless capabilities into a single, compact, wall-mountable enclosure.
Engineered for residential and small office environments, the device supports robust data transmission over distances up to 20 km. With its integrated dual-band WiFi6, it provides an aggregate throughput of 1.5 Gbps, ensuring efficient data handling for modern high-bandwidth applications.
Key Features
-
GPON WAN Interface
Features an SC/APC optical connector for secure and reliable fiber network termination. -
WiFi6 Wireless Networking
Dual-band WiFi support with 1.5 Gbps aggregate throughput for high-speed wireless connectivity. -
4-Port Gigabit Switch
Includes four integrated GbE RJ45 LAN ports to easily connect local wired devices. -
High Uplink/Downlink Speeds
Supports data transmission speeds of 2.4 Gbps uplink and 1.2 Gbps downlink. -
Long-Range Capability
Maintains stable network links over fiber runs of up to 20 km. -
Compact Design
Measured at 141.5mm x 140.8mm x 31.65mm for efficient, space-saving installation. -
Wall Mountable
Includes mounting options for clean, professional installation in residential or office spaces.
Applications
- Fiber-to-the-Home (FTTH) deployments
- Residential internet service provisioning
- Small office/home office (SOHO) network infrastructure
- GPON optical network management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | UFWIFI6 |
| WAN Interface | (1) GPON Port |
| Optical Connector | SC/APC |
| LAN Ports | (4) GbE RJ45 |
| Max Transmission Distance | 20 km |
| Uplink Speed | 2.4 Gbps |
| Downlink Speed | 1.2 Gbps |
| WiFi Throughput | 1.5 Gbps (Aggregate) |
| Dimensions | 141.5mm x 140.8mm x 31.65mm |
| Mounting | Wall Mountable |
Frequently Asked Questions
What type of fiber connector does the WAN port use?
The GPON WAN port uses an SC/APC optical connector.
How many wired devices can I connect?
The device includes an integrated 4-port Gigabit Ethernet switch for wired connections.
What is the maximum distance supported for the fiber link?
The device supports fiber links up to 20 km in length.
Is this device wall mountable?
Yes, it is designed to be wall-mounted for convenience.
What are the wireless throughput capabilities?
It features dual-band WiFi6 with an aggregate throughput rate of 1.5 Gbps.
