Overview

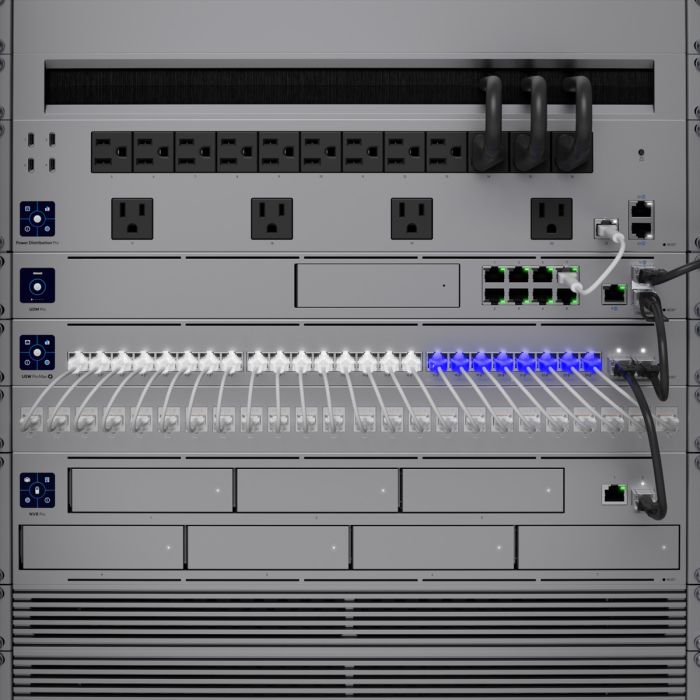

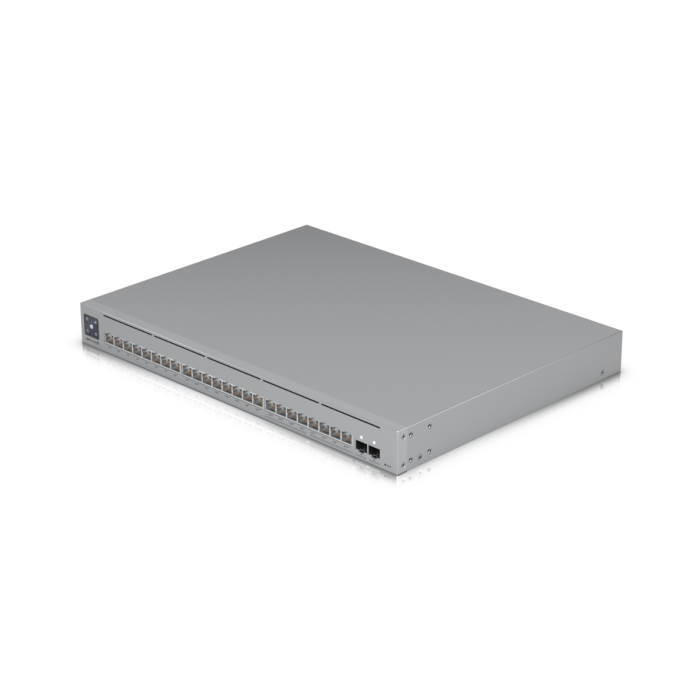

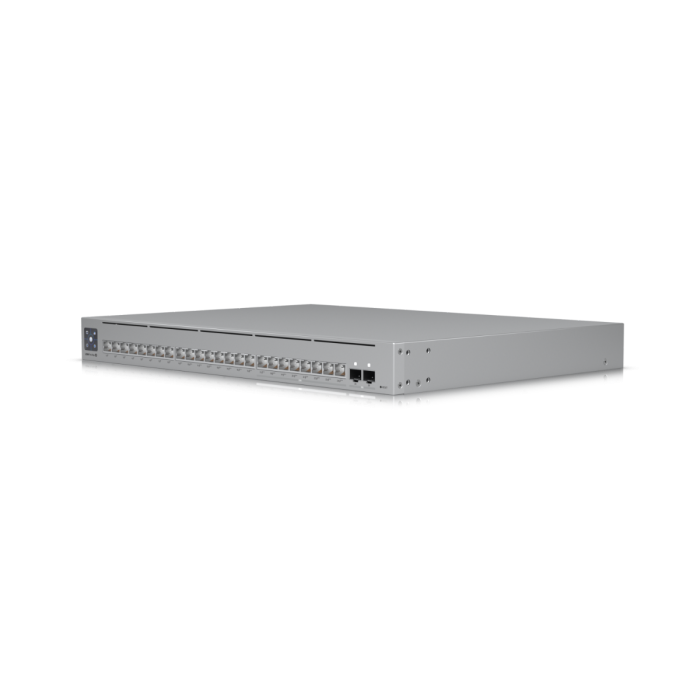

The Ubiquiti MAX 24 PoE Switch is a high-performance, Layer 3 managed network switch designed to support intensive connectivity requirements in modern data environments. It features advanced Etherlighting technology, which illuminates ports to provide instant visual status of port location, network speed, and native VLAN configuration when utilized with compatible Etherlighting patch cables.
This managed switch offers a versatile port configuration including 16 Gigabit Ethernet ports and 8 multi-gigabit 2.5 GbE ports, all featuring robust Power over Ethernet (PoE) capabilities. Built for demanding enterprise environments, it includes dual 10G SFP+ uplinks for high-speed connectivity and supports DC power backup, ensuring mission-critical reliability and uptime.
Key Features
-
Etherlighting Ports
Integrated port illumination provides real-time visual feedback on link speed, status, and VLAN assignments. -
High-Speed PoE++ Output
Supports modern high-power devices with PoE, PoE+, and PoE++ standards for flexible deployment. -
Multi-Gigabit Support
Features eight 2.5 GbE ports to accommodate high-bandwidth access points and network hardware. -
10G SFP+ Uplinks
Includes two 10G SFP+ ports for high-capacity network backhaul and stack connectivity. -
Advanced Layer 3 Management
Designed for complex network routing and management via the UniFi Network Controller software. -
Redundant Power Ready
Equipped with a DC power input to support redundant power systems for increased operational safety.
Applications
- Enterprise campus and office networking
- High-density wireless access point deployment
- VoIP telephony systems
- IP surveillance and security camera networks
- Data center management and switching
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Part Number | USWPROMAX24POE |
| Gigabit Ethernet Ports | 16 |
| 2.5 GbE PoE++ Ports | 8 |
| 10G SFP+ Ports | 2 |
| Total PoE Availability | 400W |
| Total Throughput | 56 Gbps (non-blocking) |
| Switching Capacity | 112 Gbps |
| Power Input | 100-240V AC, 50/60Hz |
| DC Input | USP-RPS DC Input |
| Dimensions | 4 x 12.8 x 1.7" |
| Weight | 11.5 lb |
Frequently Asked Questions
Does this switch support Layer 3 routing?
Yes, it is a Layer 3 capable switch managed via the UniFi Network software.
What is the maximum PoE power per port?
The switch supports up to 60W per port on the PoE++ standard.
Can this switch be used with redundant power supplies?
Yes, it includes a dedicated USP-RPS DC input for power backup.
What is Etherlighting?
Etherlighting is a feature that allows ports to illuminate to show speed, link status, and VLAN assignments when using compatible cables.
Is the power supply modular?
The unit features a universal 100-240V AC input and a DC input for external power backup.
