Overview

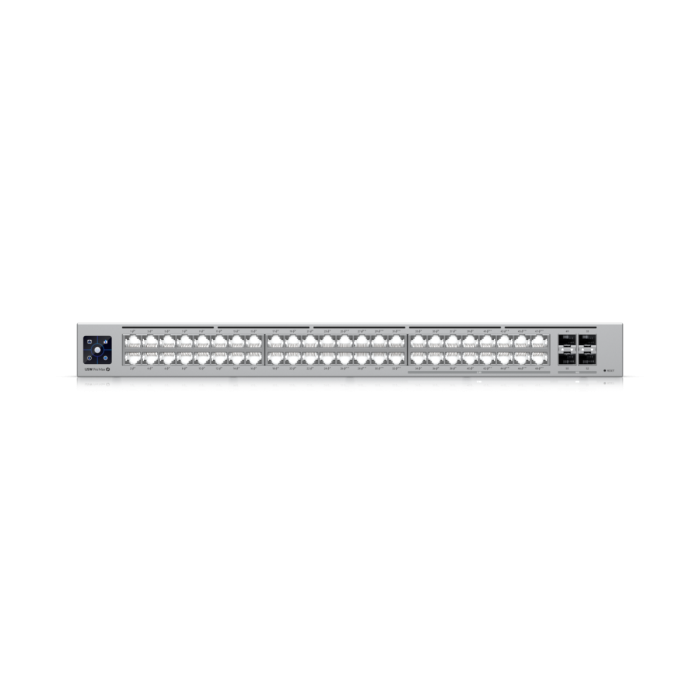

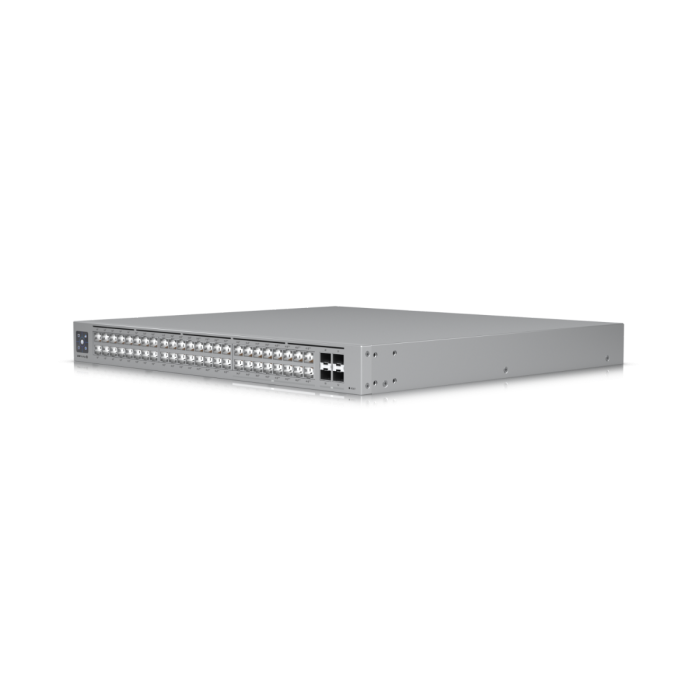

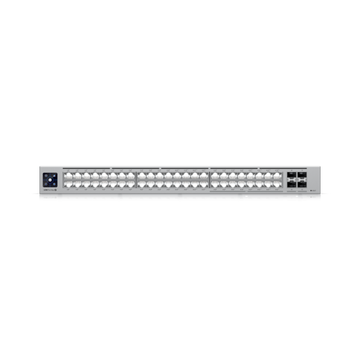

The Ubiquiti MAX 48 PoE Switch is a high-capacity, Layer 3 managed network switch designed for demanding enterprise and data center environments. This professional-grade device features intelligent Etherlighting ports that simplify cable management by illuminating to indicate port location, network speed, and native VLAN status when utilized with compatible patch cables.
Engineered for versatility, the switch supports a wide array of connectivity options, including 2.5 GbE and Gigabit Ethernet ports, supplemented by 10G SFP+ uplinks. With 720W of total PoE availability, it is optimized to power a diverse range of network hardware, such as access points, cameras, and VoIP phones, while supporting DC power backup for increased operational reliability.
Key Features
-

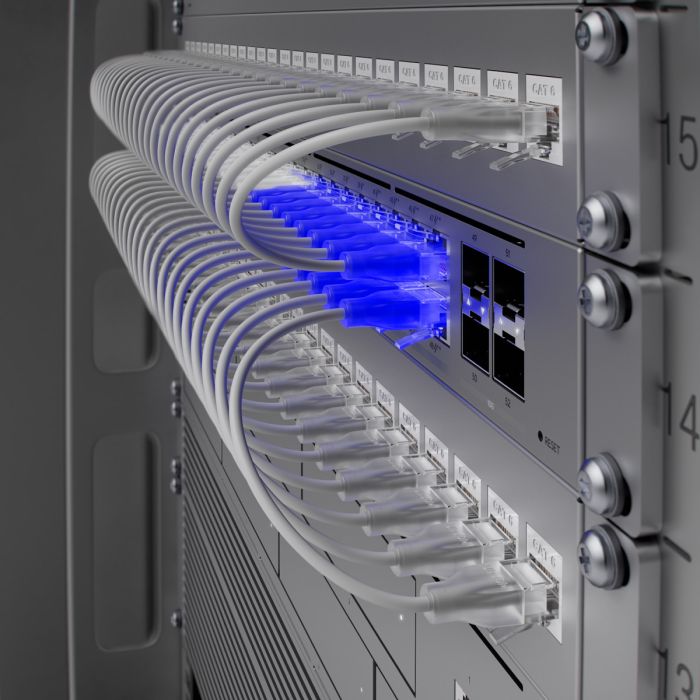

Etherlighting Technology
Integrated port illumination provides visual feedback for port location, link speeds, and VLAN identification, enhancing management efficiency. -
High-Density Connectivity
Equipped with 16 x 2.5 GbE ports and 32 x GbE ports, ensuring sufficient capacity for modern network infrastructures. -
10G SFP+ Uplinks
Features 4 dedicated 10G SFP+ ports to facilitate high-speed fiber backbone connections. -
Flexible PoE Capabilities
Supports PoE+ and PoE++ standards to power high-draw peripheral devices across different port configurations. -
Total PoE Budget
Provides a substantial 720W of total PoE power, accommodating complex device deployments. -
Redundant Power Support
Includes DC power backup compatibility to ensure network uptime during power fluctuations or failures. -
Layer 3 Management
Advanced switching features managed through the intuitive UniFi Network interface (version 8.0.24 or later).
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | USWPROMAX48POE |
| Total Ports | 48 |
| 2.5 GbE Ports | 16 (8 PoE+, 8 PoE++) |
| GbE Ports | 32 (24 PoE+, 8 PoE++) |
| SFP+ Ports | 4 (10G) |
| Total PoE Availability | 720W |
| Switching Capacity | 224 Gbps |
| Throughput | 112 Gbps (non-blocking) |
| Dimensions | 4 x 15.7 x 1.7 inches |
| Weight | 13.9 lb |
| Power Input | 100-240V AC, 50/60Hz; USP-RPS DC Input |
Frequently Asked Questions
What is Etherlighting?
Etherlighting is a port illumination feature that allows for easy identification of port speed, link status, and VLAN membership, requiring compatible patch cables.
Does this switch support redundancy?
Yes, this switch is DC power backup ready and includes a USP-RPS DC input for increased reliability.
What software is required for management?
The switch is managed via the UniFi Network controller, version 8.0.24 or later.
How much PoE power is available?
The switch provides a total PoE budget of 720W, with support for PoE, PoE+, and PoE++ standards.
Can I use SFP+ modules with this switch?
Yes, the switch features 4 dedicated 10G SFP+ ports for high-speed uplink connectivity.
