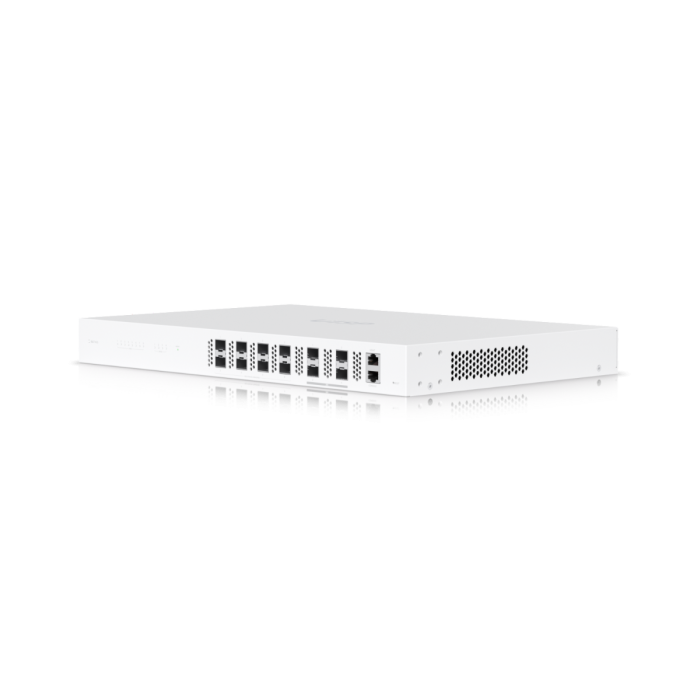

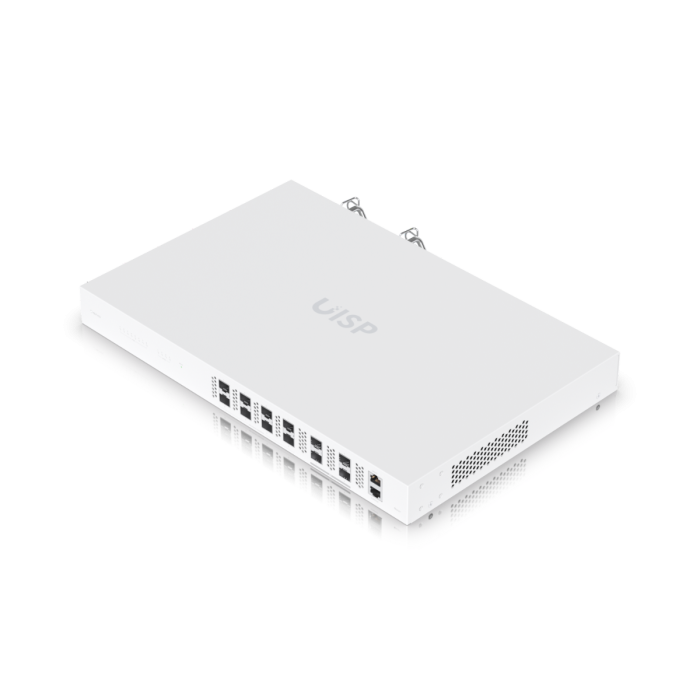

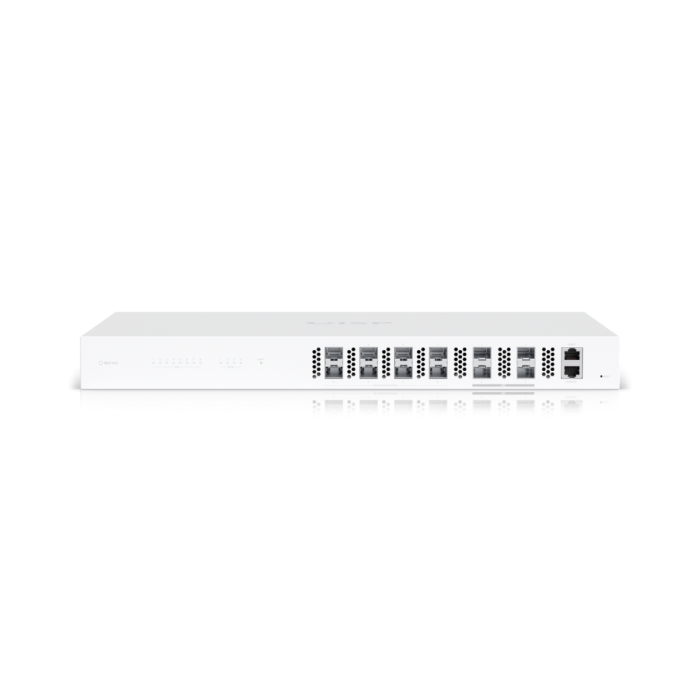

Ubiquiti UISP Fiber OLT XGS (2-Pack)

Overview

The Ubiquiti UISP Fiber OLT XGS is a high-capacity optical line terminal designed to support demanding fiber-to-the-premise (FTTP) deployments. Providing 10 Gbps bi-directional capacity per port, this device is engineered to deliver high-speed uplink and downlink connectivity to a large-scale subscriber base, supporting up to 2,048 clients across its eight XGS-PON ports.

Housed in a compact 1U rack-mount chassis, the OLT is designed for professional data center and central office environments. It features flexible management options, including out-of-band and in-band Ethernet, an RJ45 serial console port, and built-in Bluetooth for streamlined configuration. With support for AC/DC power module redundancy, it ensures consistent operation for critical network infrastructure.

Key Features

• High Capacity PON Ports
  Features (8) XGS/XG/GPON ports providing 10 Gbps bi-directional capacity, enabling high-bandwidth service delivery to end users.
• Versatile Uplink Connectivity
  Equipped with (4) 1/10/25G SFP28 uplink ports, facilitating high-speed integration into existing core network architectures.
• Large Subscriber Support
  Capable of managing up to 2,048 clients, making it suitable for dense residential or commercial network coverage.
• Rack-Mount Form Factor
  Designed as a 1U unit, allowing for efficient use of rack space in standard telecommunications cabinets.
• Redundant Power Support
  Supports AC/DC power module redundancy, increasing the reliability and uptime of the terminal.
• Integrated Management Interfaces
  Includes Ethernet out-of-band and in-band options, plus a serial console port for versatile deployment and troubleshooting access.

Applications

• High-speed residential fiber internet (FTTH/FTTP)
• Commercial network infrastructure
• Multi-dwelling unit (MDU) connectivity
• 10G service provisioning in dense urban environments

Technical Specifications

Frequently Asked Questions

Are SFP modules included with the OLT?
No, SFPs are sold separately.

How many clients can this OLT support?
The device supports a total capacity of 2,048 clients across its eight PON ports.

Is the power supply redundant?
Yes, the device features support for AC/DC power module redundancy.

Can I use the SFP28 ports at mixed speeds?
No, the four SFP28 ports do not support mixed speed configurations when set to 25 Gbps mode.

Is this unit rack-mountable?
Yes, it is designed for 1U rack-mount installation.
