Overview

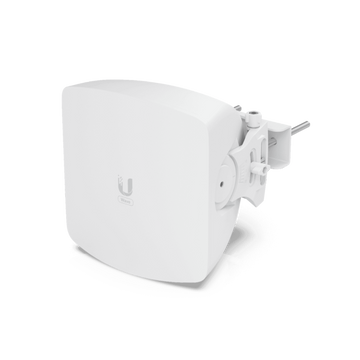

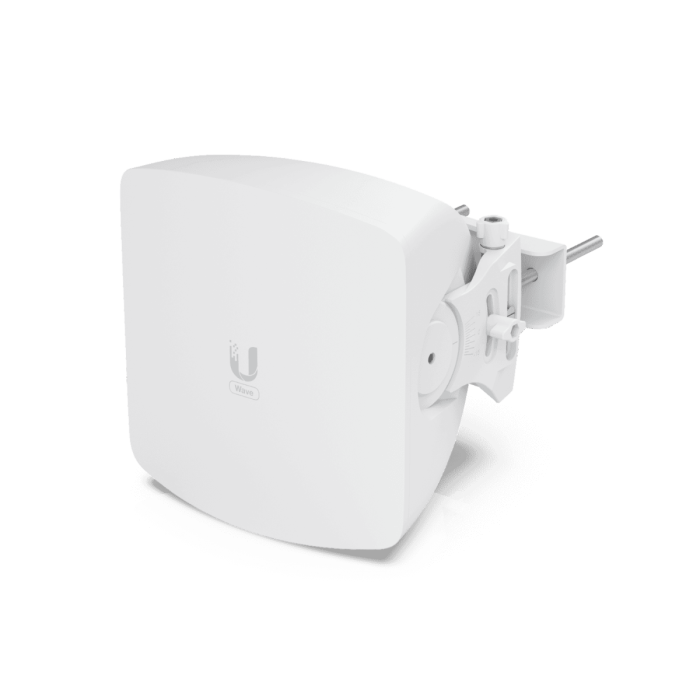

The Ubiquiti Wave Access Point is a high-performance 60 GHz wireless device designed to provide high-capacity, long-range connectivity for PtMP (Point-to-Multipoint) deployments. It serves as a central hub in a wireless network, enabling reliable data transmission for service providers and enterprise applications.
Engineered for versatility, this unit features a primary 60 GHz radio supporting up to 5.4 Gbps throughput, paired with a 5 GHz weather-resilient backup radio to maintain connectivity during adverse atmospheric conditions. Housed in a durable enclosure, it is suitable for outdoor pole-mounted environments, offering 30-degree sector coverage and integrated GPS and Bluetooth functionality for simplified installation and management.
Key Features
-
60 GHz Primary Radio
Delivers up to 5.4 Gbps maximum throughput (2.7 Gbps duplex) for high-speed data transmission. -
5 GHz Backup Radio
Ensures network availability and stability during challenging weather conditions. -
30° Sector Coverage
Provides precise beamforming to effectively serve multiple client locations within a focused area. -
Multi-Gigabit WAN Interfaces
Includes one 2.5 GbE port and one 10G SFP+ port for high-bandwidth backhaul connectivity. -
High Client Capacity
Supports up to 15 client devices simultaneously, optimizing network efficiency. -
Integrated GPS & Bluetooth
Facilitates streamlined device setup, precise timing, and management tasks.
Applications
- WISP (Wireless Internet Service Provider) backhaul and distribution
- Enterprise-grade wireless network expansion
- High-speed connectivity for remote or underserved locations
- PtMP (Point-to-Multipoint) campus networking
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | WaveAP |
| Main Radio Throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Operating Frequency | 60 GHz / 5 GHz |
| Coverage | 30° Sector |
| WAN Ports | (1) 2.5 GbE, (1) 10G SFP+ |
| Client Capacity | 15 clients |
| Features | Integrated GPS, Bluetooth |
Frequently Asked Questions
What is the maximum link range for clients?
The system supports Wave Long-Range clients up to 8 km and Wave Nano clients up to 5 km.
Does this unit include a backup radio?
Yes, it features a 5 GHz radio designed to provide connectivity during inclement weather.
How many clients can connect to this access point?
The Wave Access Point supports a capacity of up to 15 clients.
What networking interfaces are available?
The device is equipped with one 2.5 GbE port and one 10G SFP+ port for high-performance WAN connectivity.
Is GPS included?
Yes, the unit features integrated GPS for timing and management.
