Overview

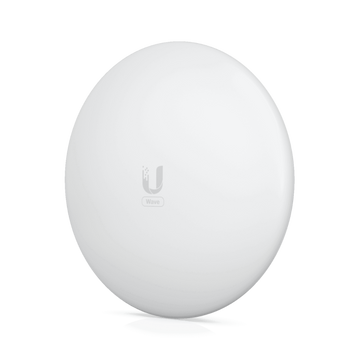

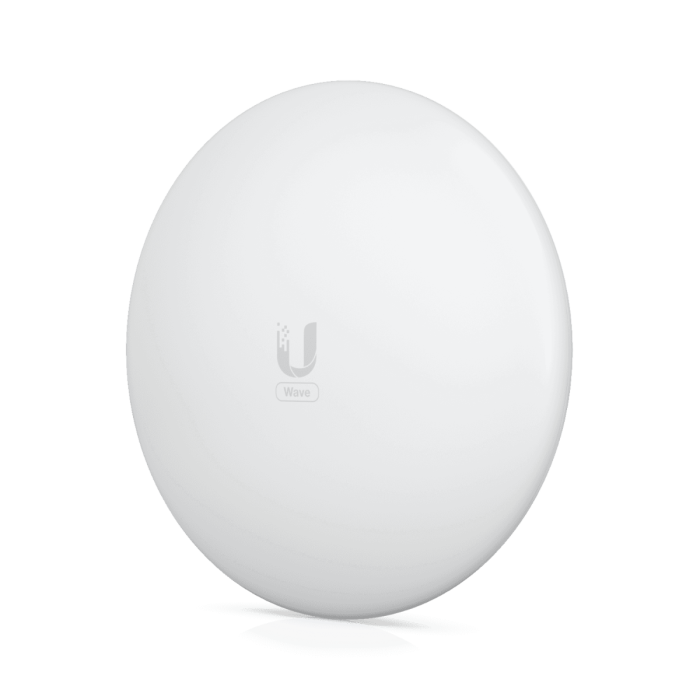

The Ubiquiti Wave Long Range (Wave LR) is a high-performance, point-to-point wireless bridge designed for long-distance, high-capacity data transmission. It is engineered to provide robust network connectivity in challenging environments where fiber installation is impractical or cost-prohibitive.
Equipped with a 2 Gbps total throughput capacity and an integrated 5 GHz backup radio, the Wave LR ensures consistent, weather-resilient operation. The device features a precision alignment mount for accurate installation and integrates GPS and Bluetooth functionality for simplified deployment and management.
Key Features
-
2 Gbps Throughput
Delivers up to 2 Gbps of total capacity (1 Gbps duplex) for high-bandwidth applications. -
5 GHz Backup Radio
Features an 800+ Mbps weather-resilient backup radio to maintain connectivity during adverse conditions. -
GbE RJ45 Port
Includes a Gigabit Ethernet RJ45 interface for reliable network integration. -
Precision Alignment Mount
Enables precise adjustment to ensure optimal link stability and performance. -
Integrated GPS
Provides precise synchronization for high-density network deployments. -
Integrated Bluetooth
Simplifies the configuration and management process via mobile devices.
Applications
- Long-range point-to-point wireless bridging
- Backhaul for remote sites
- Wireless network expansion where fiber is unavailable
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Part Number | WAVELR |
| Max Throughput | 2 Gbps (1 Gbps duplex) |
| Backup Radio | 5 GHz (800+ Mbps) |
| Interface | (1) GbE RJ45 port |
| Wave AP Link Range | 8 km |
| Wave AP Micro Link Range | 6 km |
Frequently Asked Questions
What is the maximum throughput of the Wave Long Range?
It supports up to 2 Gbps total capacity, with 1 Gbps duplex.
Does this device have a backup radio?
Yes, it includes a 5 GHz 800+ Mbps weather-resilient backup radio for reliable operation.
What is the maximum link range with the Wave AP?
The device supports a link range of up to 8 km when used with the Wave AP.
Does the unit come with mounting hardware?
Yes, it includes a precision alignment mount for accurate installation.
Is Bluetooth support included?
Yes, the unit features integrated Bluetooth for easy configuration.
