Overview

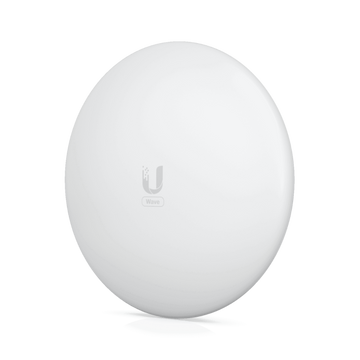

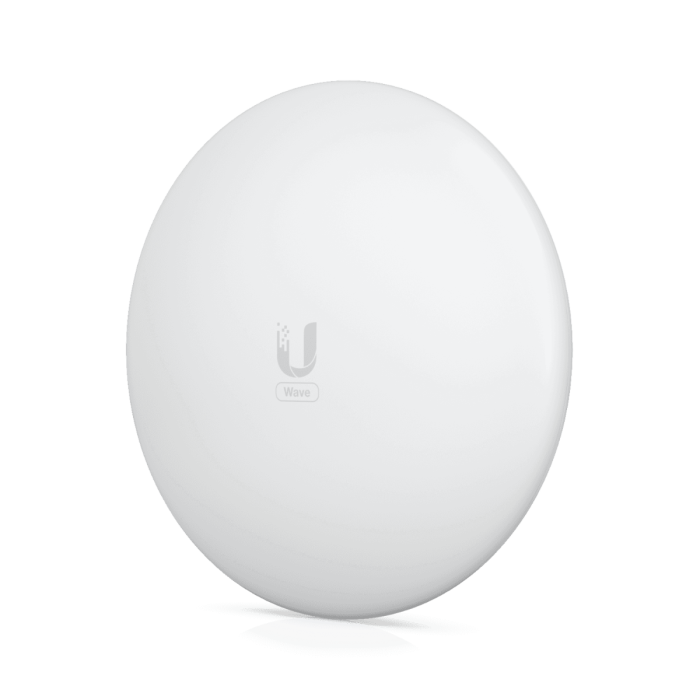

The Ubiquiti Wave-Nano is a high-performance wireless bridge designed for point-to-multipoint (PtMP) network deployments. It provides robust, high-capacity connectivity for demanding data environments, delivering up to 2 Gbps maximum throughput and 1 Gbps duplex operation. Engineered for resilience, the device includes a 5 GHz 800+ Mbps weather-resilient backup radio to ensure consistent network uptime during adverse conditions.
This compact unit is equipped with an integrated GPS and Bluetooth for simplified configuration and precise network alignment. Featuring a Gigabit Ethernet RJ45 port, the Wave-Nano is constructed for integration into modern professional networking infrastructures, providing stable wireless links over significant distances.
Key Features
-
High Throughput
Delivers up to 2 Gbps maximum throughput, supporting high-bandwidth applications. -
Weather-Resilient Backup
Integrated 5 GHz 800+ Mbps radio provides reliable performance during weather-related signal degradation. -
Gigabit Connectivity
Equipped with a dedicated GbE RJ45 port for high-speed data transmission. -
Integrated GPS
Built-in GPS functionality aids in accurate device placement and network synchronization. -
Bluetooth Configuration
Features integrated Bluetooth for efficient and quick on-site device setup. -
Versatile Link Range
Supports varying distances depending on the paired AP, extending network reach up to 5 km.
Applications
- Point-to-Multipoint (PtMP) network deployments
- Wireless backhaul for data networks
- High-speed internet distribution in rural or underserved areas
- Data center to edge infrastructure connectivity
Compatibility
Wireless Access Points- Wave AP (5 km link range)
- Wave AP Micro (4 km link range)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | Wave-Nano |
| Part Number | WAVENANO |
| Max Throughput | 2 Gbps (1 Gbps duplex) |
| Backup Radio | 5 GHz 800+ Mbps |
| Connectivity | (1) GbE RJ45 port |
| Integrated Features | GPS, Bluetooth |
Frequently Asked Questions
What is the maximum link range of the Wave-Nano?
The link range is dependent on the paired access point: up to 5 km with the Wave AP and 4 km with the Wave AP Micro.
Does the device include a backup radio?
Yes, it includes a 5 GHz 800+ Mbps weather-resilient backup radio for consistent performance.
What type of network port does it use?
It features one Gigabit Ethernet (GbE) RJ45 port.
Is GPS included?
Yes, the unit features integrated GPS for precise alignment and synchronization.
What is the maximum throughput?
The device supports a maximum throughput of 2 Gbps.
