Overview

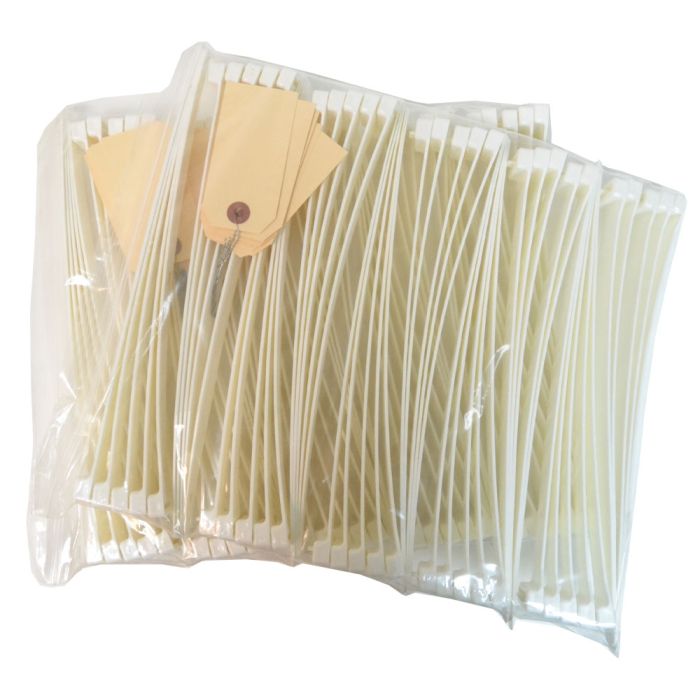

The Universal Cable Tie Wrap is a specialized cable management solution designed to protect sensitive communications cabling. Unlike standard thin zip ties, which can be easily over-cinched and cause performance-degrading macrobends in fiber optic cables or signal-attenuating deformation in copper data cables, this wide-format tie provides a broader surface area to distribute pressure evenly.
Designed for versatile installation, these ties are fully re-enterable and adjustable, making them suitable for active data center environments, telecommunications closets, and cable routing applications. Their robust construction ensures long-term management of cable bundles without risking damage to the internal integrity of the network cabling.
Key Features
-
Wide Surface Area
Features a 1-inch width to prevent over-cinching and protect fiber optic cabling from macrobends. -
Reusable Design
Fully re-enterable and adjustable mechanism allows for easy additions or removals of cables from the bundle. -
Broad Bundle Capacity
Supports a maximum bundle diameter of 2.5 inches for versatile cable management. -
Communication Optimized
Specifically engineered to avoid crosstalk issues common with deformed copper cabling. -
Durable Construction
Designed with a 0.08-inch thick main strap for balanced strength and flexibility.
Applications
- Data center fiber cable routing
- Telecommunications cable management
- Copper network cable bundling
- High-density rack and cabinet organization
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | BTWWH100 |
| Length | 12 inches |
| Main Strap Width | 1 inch |
| Head Width | 1.3 inches |
| Strap Thickness | 0.08 inches |
| Head Thickness | 0.4 inches |
| Max Bundle Diameter | 2.5 inches |
| Color | White |
| Quantity per Pack | 100 |
Frequently Asked Questions
Are these cable ties reusable?
Yes, the ties are fully re-enterable and adjustable for future cable moves, adds, and changes.
Can these be used with fiber optic cables?
Yes, they are designed to prevent the over-cinching and macrobends that commonly occur with thinner, traditional plastic zip ties.
What is the maximum bundle size?
These ties accommodate a maximum cable bundle diameter of 2.5 inches.
Will these cause crosstalk in copper cables?
No, the wider design prevents the deformation and crushing of copper cables that typically lead to crosstalk issues.
