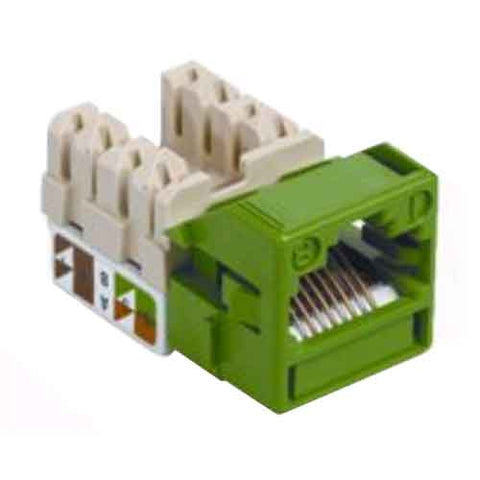

1-Port Mod Jack 8W8P 110 T568A/B CAT5e IP1, Green
Dimensions | |
Depth | 30.48 mm|1.20 in |
Height | 20.32 mm|0.80 in |
Width | 20.32 mm|0.80 in |
Electrical Specifications | |
ANSI/TIA Category | 5e |
Contact Resistance Variation, maximum | 20 mOhm |
Contact Resistance, maximum | 100 mOhm |
Current Rating | 1.5 A @ 20 °C 1.5 A @ 68 °F |
Dielectric Withstand Voltage, RMS, conductive surface | 1500 Vac @ 60 Hz |
Dielectric Withstand Voltage, RMS, contact-to-contact | 1000 Vac @ 60 Hz |
Insulation Resistance, minimum | 500 MOhm |
Environmental Specifications | |
Flammability Rating | UL 94 V-0 |
Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
Relative Hæmidity | Up to 95%, non-condensing |
Safety Standard | cUL|UL |
Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
General Specifications | |
Cable Type | U/UTP (unshielded) |
Color | Green |
Brand | Uniprise? |
Package, quantity | 100 |
Product Type | Outlet |
Mechanical Specifications | |
Conductor Gauge, solid | 22 AWG|24 AWG|26 AWG |
Conductor Gauge, stranded | 22 AWG|24 AWG |
Conductor Type | Solid|Stranded (7 strands) |
Material Type | Copper alloy|High-impact, flame retardant, thermoplastic |
Outlet/Module Contact Plating | Precious metals |
Plug Insertion Life, minimum | 750 times |
Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
Plug Retention Force, minimum | 30 lbf|133 N |
Rear Termination Contact Plating | Precious metals |
Rear Termination Type | IDC |
Wiring | T568A|T568B |
