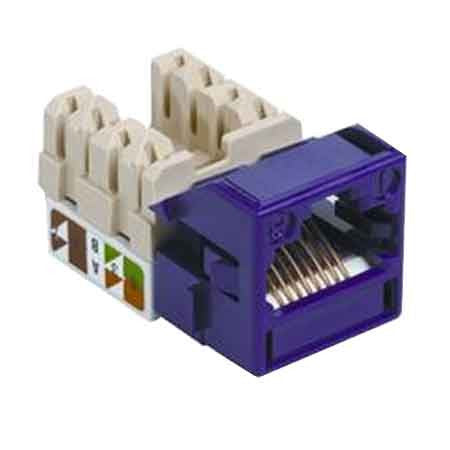

1-Port Mod Jack 8W8P 110 T568A/B CAT5e IP1, Violet
| Dimensions | |
| Depth | 30.48 mm|1.20 in |
| Height | 20.32 mm|0.80 in |
| Width | 20.32 mm|0.80 in |
| Electrical Specifications | |
| ANSI/TIA Category | 5e |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating | 1.5 A @ 20 °C 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| Environmental Specifications | |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Hæmidity | Up to 95%, non-condensing |
| Safety Standard | cUL|UL |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| General Specifications | |
| Cable Type | U/UTP (unshielded) |
| Color | Violet |
| Brand | Uniprise? |
| Package, quantity | 100 |
| Product Type | Outlet |
| Mechanical Specifications | |
| Conductor Gauge, solid | 22 AWG|24 AWG|26 AWG |
| Conductor Gauge, stranded | 22 AWG|24 AWG |
| Conductor Type | Solid|Stranded (7 strands) |
| Material Type | Copper alloy|High-impact, flame retardant, thermoplastic |
| Outlet/Module Contact Plating | Precious metals |
| Plug Insertion Life, minimum | 750 times |
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 30 lbf|133 N |
| Rear Termination Contact Plating | Precious metals |
| Rear Termination Type | IDC |
| Wiring | T568A|T568B |
