Overview

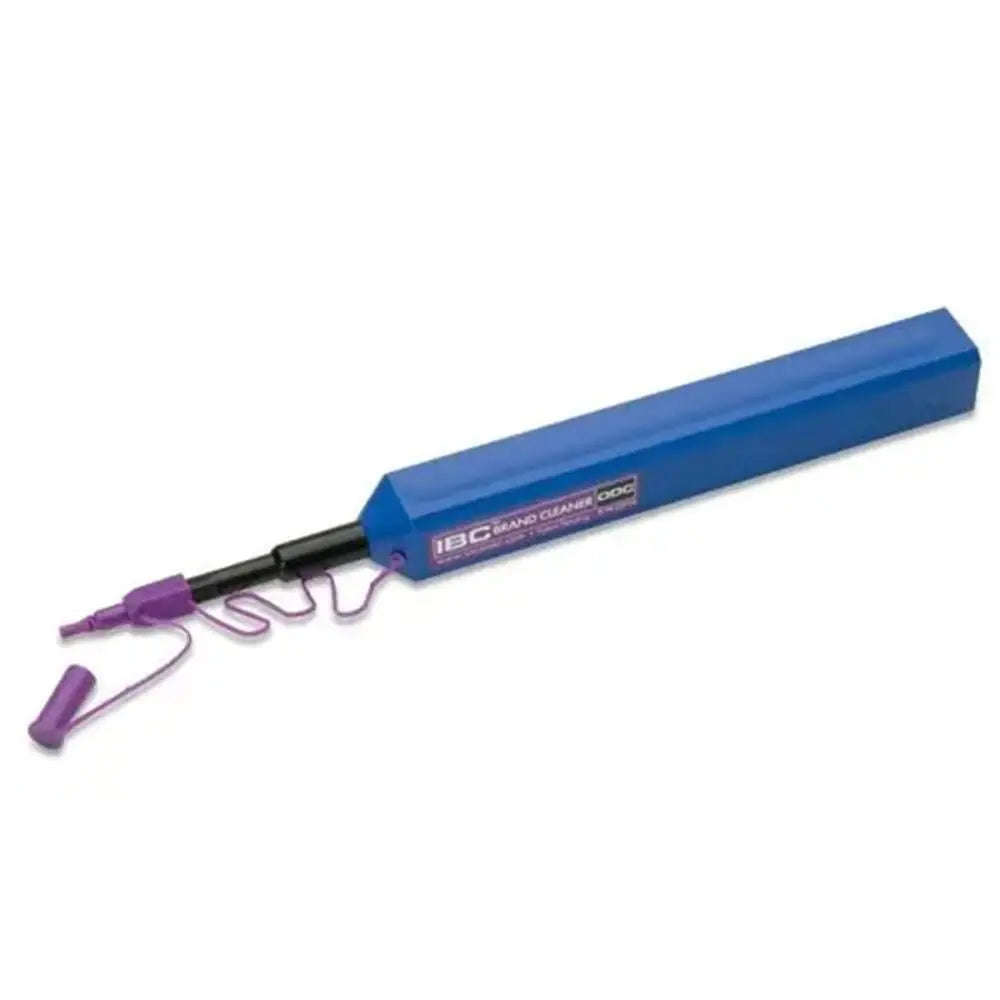

The US Conec 12910 IBC™ Brand Cleaner H125 is a high-performance, push-style cleaning tool designed for 1.25mm fiber optic connectors. Engineered to support both standard commercial LC and MU connectors as well as specialized harsh-environment systems, this tool provides a versatile solution for maintaining signal integrity in demanding industrial and field environments.
This device features an extendable nozzle that adjusts from 61mm to 87mm, allowing technicians to reach recessed connector endfaces behind panels or within complex hardware. The dry cleaning strand effectively removes contaminants such as dust, oils, and lint without the need for solvent, and the integrated anti-static system prevents post-cleaning debris attraction.
Key Features
-
Extendable Cleaning Tip
Adjusts between 61mm and 87mm to accommodate recessed connectors and various equipment depths. -
Audible Engagement Indicator
A distinct click confirms the cleaning strand has been fully engaged, ensuring consistent results. -
Solvent-Free Dry Cleaning
Uses a dry, non-fraying cloth strand to lift debris without leaving chemical residue. -
Anti-Static Design
Minimizes the attraction of dust and particles to the connector endface after cleaning. -
Tethered Dust Cap
Integrated lanyard prevents loss of the protective cap during field use. -
High-Capacity Disposable Unit
Delivers over 525 cleaning cycles, offering long-term value for maintenance tasks.
Applications
- Cable assembly manufacturing
- Field installation and maintenance

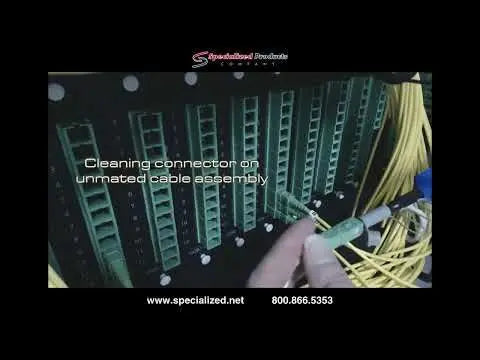

- Cleaning connectors behind patch panels or in-situ
- Harsh-environment connector systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Part Number | 12910 |
| Model | H125 |
| Ferrule Size | 1.25mm |
| Cleaning Capacity | 525+ cleans |
| Tip Length | 61mm (standard) / 87mm (extended) |
| Overall Length | 189mm (standard) / 215mm (extended) |
| Supported Connectors | LC, MU, ARINC 800, ODC, MXL38999, LuxCis, MIL-PRF-64266 (NGCON), Neutrik opticalCON |
| Standards | IEC 61300-3-35, RoHS compliant |
Frequently Asked Questions
Does this tool require solvent?
No, the IBC H125 utilizes a specialized dry cleaning strand and requires no solvents.
How many cleans does one unit provide?
Each tool provides 525+ cleaning engagements.
Can this be used on unmated cables?
Yes, it is designed for both in-situ connectors (behind a panel) and unmated cable assemblies.
What connector types are compatible?
The tool is compatible with 1.25mm LC/MU connectors and various harsh-environment systems like ARINC 800, ODC, and Neutrik opticalCON.
Is the tip length adjustable?
Yes, the cleaning tip extends from 61mm to 87mm to reach deeply recessed endfaces.
