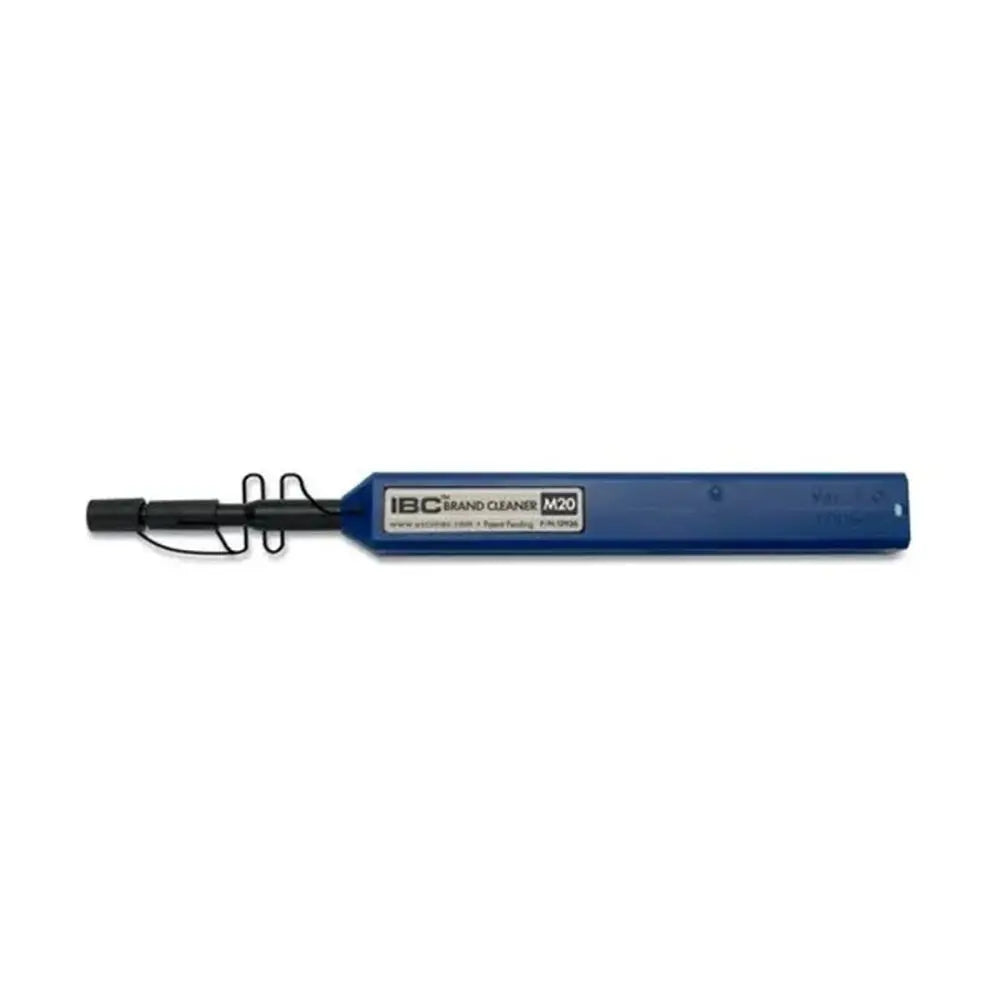

US Conec 12926 IBC Cleaner M20 with SMPTE Adapter, 2.0mm 304M/358M

Overview

The US Conec 12926 IBC™ Brand Cleaner M20 with SMPTE Adapter is a specialized push-style, disposable cleaning tool designed for harsh-environment 2.0mm fiber optic connector systems. It is engineered to reach recessed ferrules in SMPTE 304M and SMPTE 358M broadcast camera connectors, as well as MIL-PRF-28876 connectors, without requiring the removal of the connector sleeve.

This cleaner utilizes a non-fraying dry cleaning strand to effectively remove contaminants including dust, skin oils, salt water, and other residues. An integrated anti-static system helps minimize the re-attraction of contaminants to the connector endface, ensuring reliable performance in both factory cable assembly environments and field installations.

Key Features

• Recessed Ferrule Access
  Designed to reach ferrules deeply recessed within SMPTE 304M connectors without sleeve removal, saving technician time.
• Extendable Design
  The tool extends from 164mm to 199mm to provide extra reach when cleaning connectors in tight or deep panel configurations.
• Audible Engagement Indicator
  An audible click confirms that the tool is fully engaged and the cleaning cycle is complete, ensuring consistent results.
• Advanced Cleaning Strand
  Uses a dry, non-fraying cloth to lift contamination off the fiber endface rather than spreading it.
• Anti-Static System
  Produces a clean endface by minimizing static charge buildup, preventing immediate re-contamination by airborne dust.
• High Capacity
  Each disposable unit provides over 525 cleaning engagements, offering long-term value for field technicians.
• Integrated Dust Cap

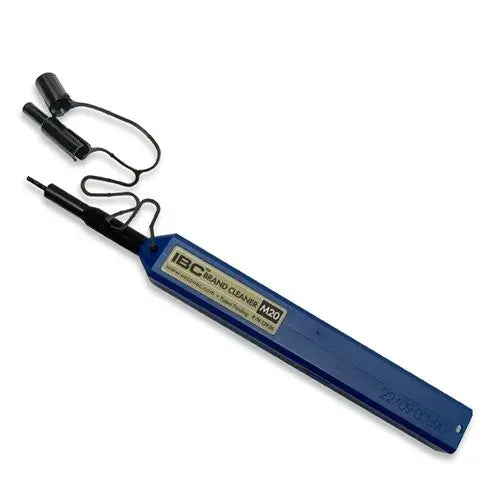

  Features a tethered dust cap so the cap cannot be lost during field use.

Applications

• Broadcasting camera connector maintenance
• Cable assembly manufacturing
• Field installation and repair
• Harsh environment fiber network maintenance

Technical Specifications

Frequently Asked Questions

Does this tool require any cleaning solvents?
No, the IBC M20 cleaner uses a dry cleaning method and should be used without any solvents.

Can I use this on standard LC or SC connectors?
No, this model is specifically sized for 2.0mm ferrule systems like SMPTE and MIL-PRF connectors. Please use appropriate 1.25mm or 2.5mm IBC cleaners for standard connectors.

Is the tip replaceable?
No, this is a disposable, single-unit tool designed for over 525 cleanings.

Does the cleaner work for both unmated and in-situ connectors?

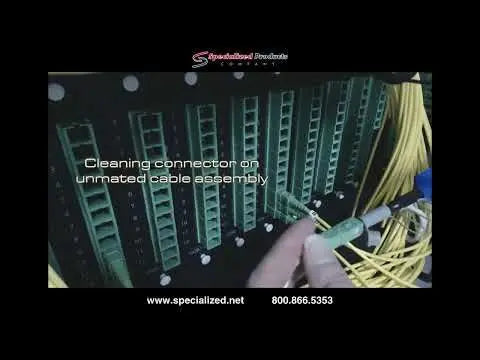

Yes, it is designed for both unmated cable assemblies and for cleaning connectors installed behind a panel.

What kind of contaminants does it remove?
It removes common debris such as Arizona road dust, skin oils, salt water, alcohol residue, hand lotion, and graphite.
