Overview

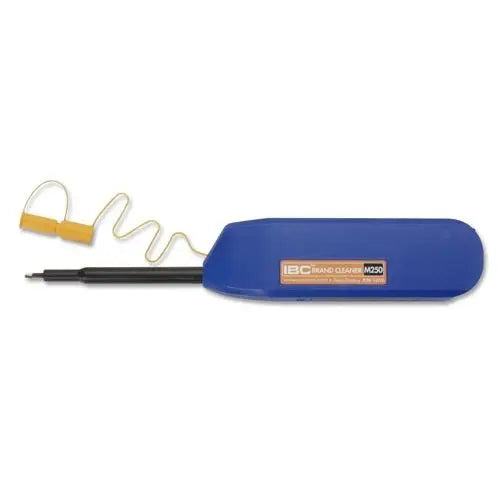

The US Conec 13310 IBC Brand Cleaner M250 is a precision-engineered, push-style cleaning tool designed for 2.5mm fiber optic connectors. It is specifically built to clean end-faces for connector types including SC, ST, FC, E2000, and TFOCA.
This dry-cleaning tool effectively removes various contaminants such as Arizona road dust, skin oils, salt water, alcohol residues, and lint. It is ideal for use in data centers, field installations, and manufacturing environments, allowing for cleaning of connectors within adapters or patch panels as well as unmated ferrules.
Key Features
-
Push-Style Operation
Simple single-action cleaning mechanism reduces time required for end-face maintenance. -
2.5mm Ferrule Compatibility
Designed for universal compatibility with common SC, ST, FC, E2000, and TFOCA connectors. -

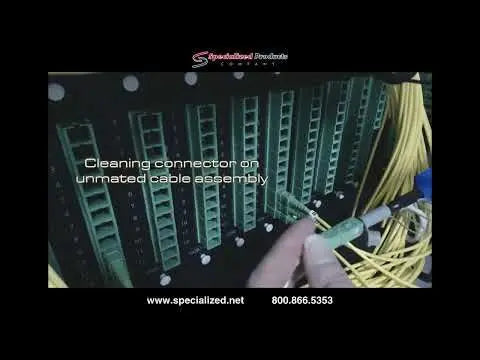

Adapter and Unmated Cleaning
Versatile design allows for cleaning connectors inside adapters or exposed connector tips. -
High Capacity
Provides over 525 cleaning cycles per unit, lowering the cost per clean. -
Anti-Static System
Reduces static charge during the cleaning process to minimize re-attraction of airborne contaminants. -
Audible Confirmation
Mechanical click sound indicates the cleaning stroke has been completed. -
Non-Fraying Cleaning Strand
High-purity cleaning material ensures no secondary debris is left on the ferrule surface.
Applications
- Data center fiber infrastructure maintenance
- Telecommunications field service
- Fiber optic cable termination and testing
- Industrial harsh-environment connector cleaning (TFOCA)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Part Number | 13310 |
| Compatible Connector Size | 2.5mm |
| Supported Connectors | SC, ST, FC, E2000, TFOCA |
| Cleans Per Unit | 525+ |
| Cleaning Method | Dry (No alcohol required) |
| Compliance | IEC 61300-3-35, RoHS |
Frequently Asked Questions
Is this tool compatible with APC connectors?
Yes, the 2.5mm IBC cleaner is compatible with both UPC and APC polished connectors.
Does this tool require cleaning solvents?
No, it is a dry cleaning tool and should be used without any solvent or cleaning fluid.
Can I use this for LC connectors?
No, this tool is specific to 2.5mm ferrules. LC connectors require a 1.25mm cleaning tool.
How do I know when the cleaning strand is empty?
The tool will stop advancing the cleaning strand, indicating it has reached its full cycle capacity.
Can the cleaner be used behind a bulkhead?
Yes, the extended nozzle is designed to reach connectors installed inside adapters or patch panels.
