Overview

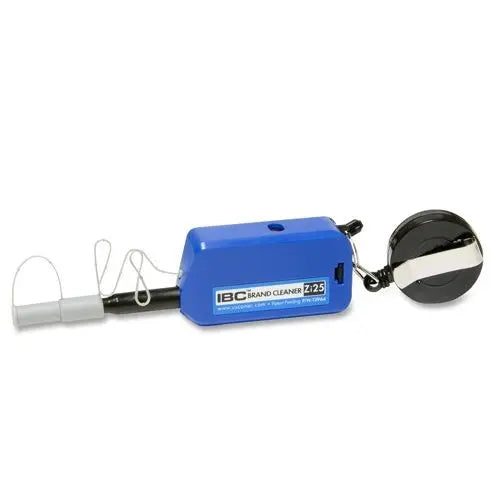

The US Conec 13964 IBC™ Brand Cleaner Zi25 is a specialized push-style cleaning tool designed for harsh-environment 2.5mm fiber optic connector systems. It is engineered to effectively clean SC, ST, FC, and E2000 connectors, supporting both PC and APC polishes, as well as plug and socket termini.
This cleaner features a retractable zipcord lanyard for improved accessibility in field environments. It is ideal for cleaning connectors loaded in bulkhead adapters, installed behind panels, or on unmated cable assemblies. The tool utilizes a non-fraying dry cleaning cloth and an anti-static system to lift contaminants while minimizing the attraction of further debris, providing over 525 cleans per unit.
Key Features
-
Push-Style Mechanism
Simple one-click operation provides consistent, repeatable cleaning for improved fiber end-face inspection results. -
Retractable Pull Lanyard
Keeps the cleaning tool secured to the technician, preventing loss in field or data center environments. -
Anti-Static Cleaning System
Minimizes the potential for static-induced debris attraction after the cleaning process. -
Broad Compatibility
Suitable for 2.5mm ferrules including SC, ST, FC, and E2000 connector types. -
Versatile Application
Effective for cleaning connectors in bulkheads, hard-to-reach panels, or exposed cable assemblies. -
Non-Fraying Cloth
Ensures that no residual material or lint is left behind during the cleaning of the connector end-face. -
Audible Engagement
Provides an audible click to confirm the cleaning cycle has been fully completed. -
High Capacity
Delivers over 525 cleaning cycles per unit, reducing the need for frequent replacements.
Applications
- Data Center fiber maintenance
- Harsh environment fiber network installations
- Bulkhead adapter cleaning

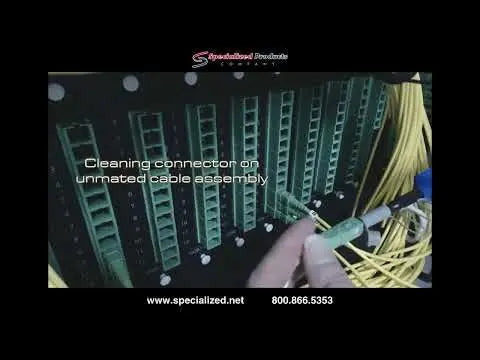

- Unmated connector cable assemblies
- Telecommunications infrastructure maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Model | 13964 (Zi25) |
| Ferrule Size | 2.5mm |
| Compatibility | SC, ST, FC, E2000 |
| Polishes | PC and APC |
| Cleaning Capacity | 525+ cleans |
| Standards Compliance | IEC 61300-3-35, RoHS |
Frequently Asked Questions
What types of residue can this tool remove?
It effectively removes skin oil, alcohol, distilled water, salt water, vegetable residue, hand lotion, Arizona road dust, graphite, and T-shirt lint.
Is this cleaner suitable for APC connectors?
Yes, the Zi25 is designed to clean both PC and APC polished connectors.
How many cleans can I get from one tool?
Each Zi25 unit provides a minimum of 525 cleaning cycles.
Does this tool require any cleaning solvents?
No, it uses a non-fraying dry cleaning cloth and does not require the use of external cleaning fluids.
What is the purpose of the lanyard?
The integrated pull lanyard allows the cleaner to be attached to the user or equipment, ensuring it remains within reach during field operations.
