Overview

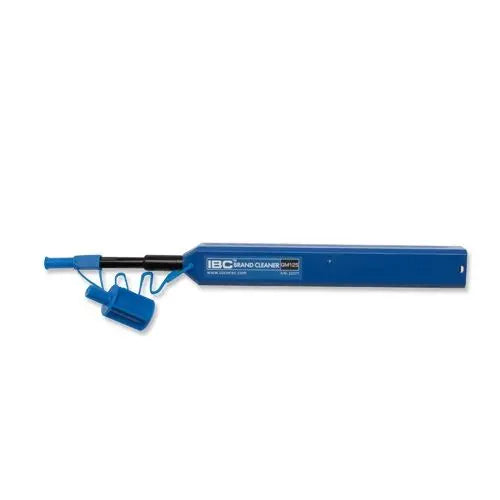

The US Conec 22277 IBC™ Brand Cleaner QM125 is a specialized push-style cleaning tool designed for harsh-environment Q-ODC-2 Mini plug and socket connectors. This device is engineered to maintain 1.25mm ferrule endfaces in both laboratory and field environments, ensuring optimal optical performance.
The cleaner features a unique telescoping nozzle that allows technicians to transition between a 51 mm standard reach and an 86 mm extended reach for cleaning ports recessed behind panels. Built with a dry, non-fraying cleaning strand, it requires no solvents and includes an anti-static system to reduce the attraction of airborne contaminants after use.
Key Features
-
Telescoping Nozzle
Features a push-button mechanism to extend the nozzle from 51 mm to 86 mm, facilitating in-situ cleaning of deep-set panels. -
Versatile Application

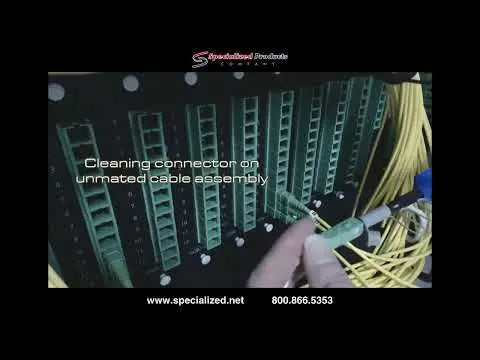

Designed for both in-situ panel connectors and unmated cable assemblies, providing a single-tool solution for technicians. -
Anti-Static Design
Integrates an anti-static system to minimize dust and debris attraction following the cleaning process. -
Dry Cleaning Technology
Uses a dry, non-fraying strand that requires no liquid solvents, leaving no chemical residue. -
Audible Engagement
Provides an audible click to confirm that the tool has been fully engaged during the cleaning cycle. -
High Capacity
Each unit is rated for 525+ cleaning cycles per cleaner. -
Standard Compliance
Tested to meet IEC 61300-3-35 cleanliness criteria and RoHS environmental standards.
Applications
- Harsh-environment fiber optic links
- Q-ODC-2 Mini connector maintenance
- Cable assembly manufacturing
- Field installation and troubleshooting
Package Contents
- US Conec 22277 IBC QM125 Cleaner
- Attached Lanyard with Dust Cap
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Model | QM125 |
| Part Number | 22277 |
| Ferrule Size | 1.25mm |
| Compatible Connectors | Q-ODC-2 Mini |
| Cleans per Unit | 525+ |
| Standard Reach | 51 mm |
| Extended Reach | 86 mm |
| Compliance | IEC 61300-3-35, RoHS |
Frequently Asked Questions
Does this cleaner require solvent?
No, it utilizes a dry cleaning strand and is designed to operate without the use of solvents.
How do I switch to extended mode?
Depress the black release button on the side of the unit and pull the nozzle forward to shift to the 86 mm reach.
Can I use this on non-mini connectors?
The QM125 is specifically designed for 1.25mm ferrule Q-ODC-2 Mini interfaces; refer to the manufacturer documentation for compatibility with other connector types.
Is the dust cap attached?
Yes, the dust cap is tethered to the cleaner body by a durable lanyard to prevent loss.
Is the unit reusable?
No, the US Conec 22277 is a disposable tool designed for 525+ cleaning cycles.
