Overview

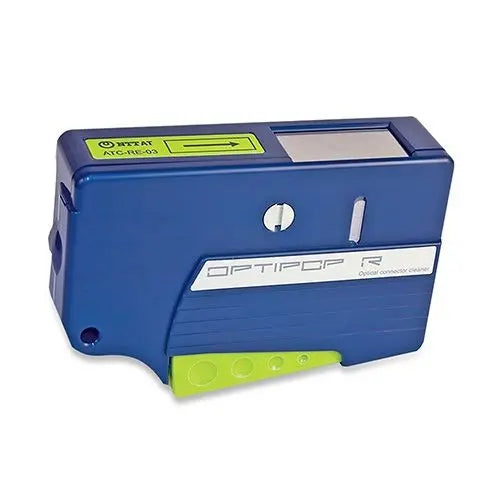

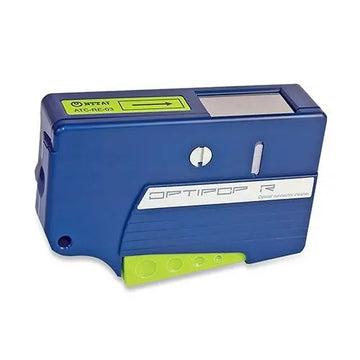

The US Conec 6339 OPTIPOP R is a refillable, single-slot dry cloth cassette cleaner designed specifically for unmated male multi-fiber connectors. It is engineered to effectively remove dust, oils, and other common contaminants from male MPO, MMC, and TMT cable assembly endfaces.
Ideal for both factory production lines and field installation environments, this cleaner utilizes a tightly woven, lint-free washing cloth to ensure a pristine optical surface. The integrated anti-static system further enhances cleaning efficiency by minimizing the attraction of airborne contaminants to the connector face during use.
Key Features
-
Dry Cloth Cleaning
Uses a lint-free cloth that removes contaminants without the need for solvents, ensuring a clean and dry connector endface. -
Refillable Design
Reduces long-term operational costs by allowing the use of replacement cleaning reels (sold separately). -
Multi-Fiber Compatibility
Specifically engineered for male connectors with guide pins, including MTP, MPO, and MMC/TMT interfaces. -
Anti-Static System
Minimizes the potential for static charge, preventing contaminants from being attracted back to the fiber endface. -
High Capacity
Provides over 400 cleaning operations per cassette, supporting high-volume usage in both field and lab settings. -
Standards Compliant
Meets stringent industry requirements, including IEC 61300-3-35 for fiber optic cleaning and inspection.
Applications
- Data center fiber backbone maintenance
- Factory-floor connector endface preparation
- Field termination and cleaning of multi-fiber assemblies
- Testing and inspection of MPO/MTP-based infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Model | 6339 |
| Cleaning Method | Dry Cloth |
| Capacity | 400+ cleans |
| Refillable | Yes (compatible with 6232 reels) |
| Supported Connectors | Male MTP, MPO, MMC, TMT (with guide pins) |
| Standards | IEC 61300-3-35, NTT-AT ATC-RE-03 |
Frequently Asked Questions
Is this cleaner suitable for female connectors?
No, this model is specifically designed for male connectors with guide pins. For other connector types, please consult the product range.
Are the cleaning reels replaceable?
Yes, the unit is designed to be used with replaceable cleaning reels (Model 6232) to reduce waste.
Does the cleaner require alcohol or other solvents?
No, the OPTIPOP R system uses a dry cloth mechanism and is designed to operate without the need for chemicals.
How many cleans can I get from one reel?
Each cassette reel provides more than 400 cleanings.
What standards does this tool meet?
It is compliant with IEC 61300-3-35 and adheres to NTT-AT reference standards.
