Overview

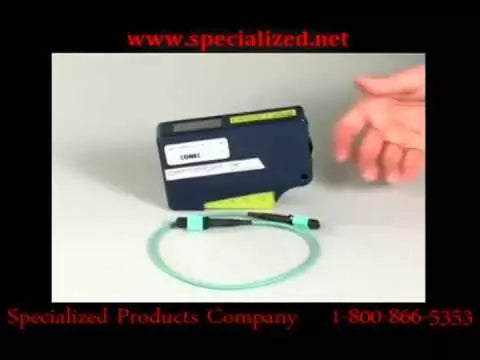

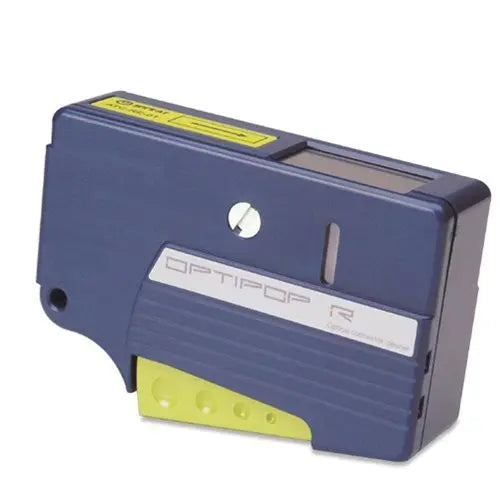

The US Conec 6340 OPTIPOP R Cleaning Cassette is a specialized, refillable dry-cloth cleaning system engineered for fiber optic maintenance. This single-slot cassette is designed specifically for cleaning unmated male MTRJ connectors that feature guide pins, making it an essential tool for both factory production lines and field installations.
Constructed with a high-density, washed cleaning cloth, the tool effectively removes common contaminants such as dust, oils, and particulate matter without leaving behind lint or debris. The integrated anti-static system further enhances cleaning efficacy by preventing static-induced re-attraction of contaminants to the connector endface, ensuring reliable optical signal integrity.
Key Features
-
Refillable Cassette Design
Uses replaceable cleaning reels to reduce long-term operational costs and waste. -
Dry Cleaning Technology
Eliminates the need for chemical solvents, ensuring safe use in diverse environments. -
Anti-Static Properties
Minimizes static attraction, preventing immediate re-contamination of the connector endface. -
High-Capacity Cleaning
Provides over 400 cleaning cycles per cassette for extended field utility. -

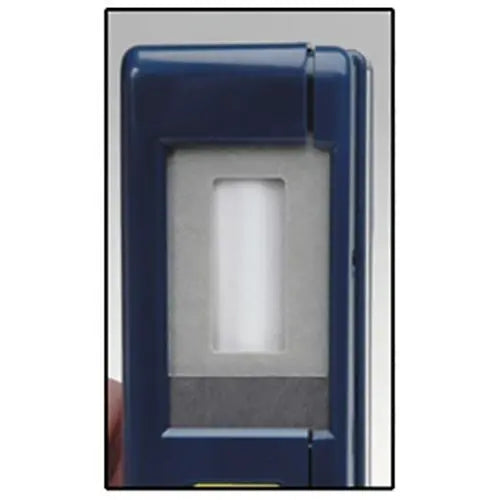

Lint-Free Cloth
Uses a premium, tightly woven cloth that does not leave behind residual fibers during the cleaning process. -
Precision Engineering
Optimized for male MTRJ connectors, ensuring complete coverage of the connector endface.
Applications
- Fiber optic cable assembly manufacturing
- Field installation of MTRJ connector systems
- Data center maintenance and routine inspection
- Central office fiber networking upkeep
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | US Conec |
| Model | 6340 |
| Connector Type | MTRJ (Male) |
| Capacity | 400+ cleans |
| Standard Compliance | IEC 61300-3-35 |
Frequently Asked Questions
Is the cloth inside the cassette refillable?
Yes, the unit is refillable. Replacement reels (Part #6232) are available and sold separately.
Can I use this for female MTRJ connectors?
This model (6340) is specifically designed for male MTRJ connectors with guide pins.
Does this require any solvents for cleaning?
No, the system is a dry-cleaning process, eliminating the need for hazardous chemicals.
How many cleans can I get from one cassette?
Each cassette provides at least 400 cleaning cycles.
Is this tool compliant with industry standards?
Yes, it is compliant with IEC 61300-3-35, ensuring high-quality performance for critical network applications.
