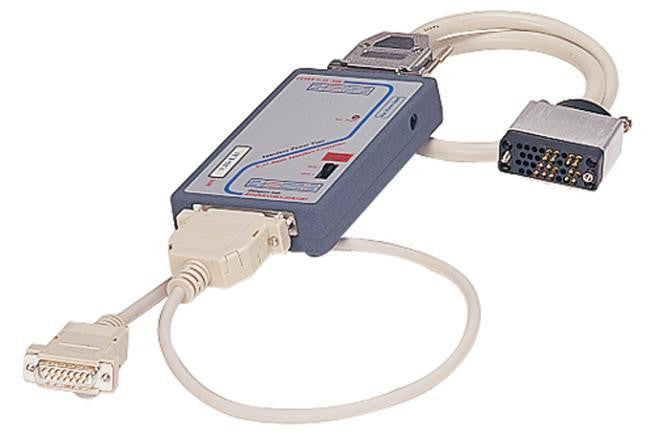

V.35 MB34 male (female opt) to X.21 DB15 male interface powered converter

CTC Union Part No.: V35-X21IP-MMM

  • $ 209.00 or



The V35-X21IP-MMM is a self powered interface converter (extracts operating power from interface itself)that allows full conversion between V.35 and X.21 interface. The converter can operate without any external power supply, getting his voltage from operating interfaces. Device is very simple to install, only DCE/DTE selection switch must be set appropriately for smooth operation.

Features of V35-X21IP-MMM interface converter

  • Baud Rate: up to 2Mbps
  • DCE/DTE device setting switch
  • self powered converter

Technical specifications

  • Connectors: V.35 MB34 male connector (optional female V35 MB34 connector available, please contact us)
  • via adapter cable, X.21 DB15 male connector via adapter cable
  • (two different data cables are used together with this converter)
  • LEDs: Signal status, DTE/DCE mode, External DC power
  • Power: Interface powered or external 9V DC/600mA power acceptable
  • Temperature: 0-50§C (Operating), 20-70§C (Storage)
  • Humidity: 5%-90% non-condensing
  • Power consumption: less than 5W
  • Dimensions: 80mm x 140mm x 25mm
  • Weight: 150g
