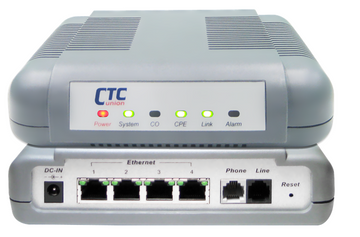

VDSL2 LAN Extender - VDSL2 DMT Ethernet modem with 4 port 10/100BaseTX switch
Move your mouse over image or click to enlarge

VDSL2 LAN Extender - VDSL2 DMT Ethernet modem with 4 port 10/100BaseTX switch

CTC Union Part No.: VDTU2A-304

  • $ 159.00 or


Product description
The VDTU2A-304 is a VDSL2 bridge modem equipped with an RJ45 POTS interface and four 10/100 Mbps Ethernet ports for local network. The VDTU2A is extremely flexible, working in both symmetric and asymmetric connection modes and adjusting for maximum performance over the copper lines it operates. The maximum throughput is 100/75 Mbps asymmetrical (* - subject to certain conditions of the environment like 24 AWG and low EMI) and still offering a stunning 10Mbps duplex on distances up to 1Km.
The extra benefit of VDTU2A-304 can work over existing POTS lines without any splitter required. Thus, installation of VDSL2 extenders and modems becomes an easy task, no extra wires being required for deployment. A single pair of telephone lines is enough for the VDTU2A-304. The VDTU2A-304 is working in pair with the VDTU2A-301 rack mountable modem
The VDSL2 bridge can be set as CPE or CO operating mode via the front panel DIP switches, a single model can be used in both locations with appropriate settings. The target data rate and SNR margin can also be set on fixed levels by user.
Technical specifications

Interfaces: Four RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and one RJ-45 VDSL2 DMT port
VDSL2 port: DMT, ITU-T G993.1/G993.2 compliant, on-board surge protection, phone line extension for easy handset connection
Operating distance: up to 1.5Km on AWG 26 copper wire
Front LEDs: PWR, System, CO, CPE, Link, Alarm, each TP port Act/Link and Duplex on jack
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Consumption: 6 Watt maximum
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Dimensions(WxDxH): 126mm x 108mm x 28mm
MTBF: 65,000 hours

Products Sheet:
