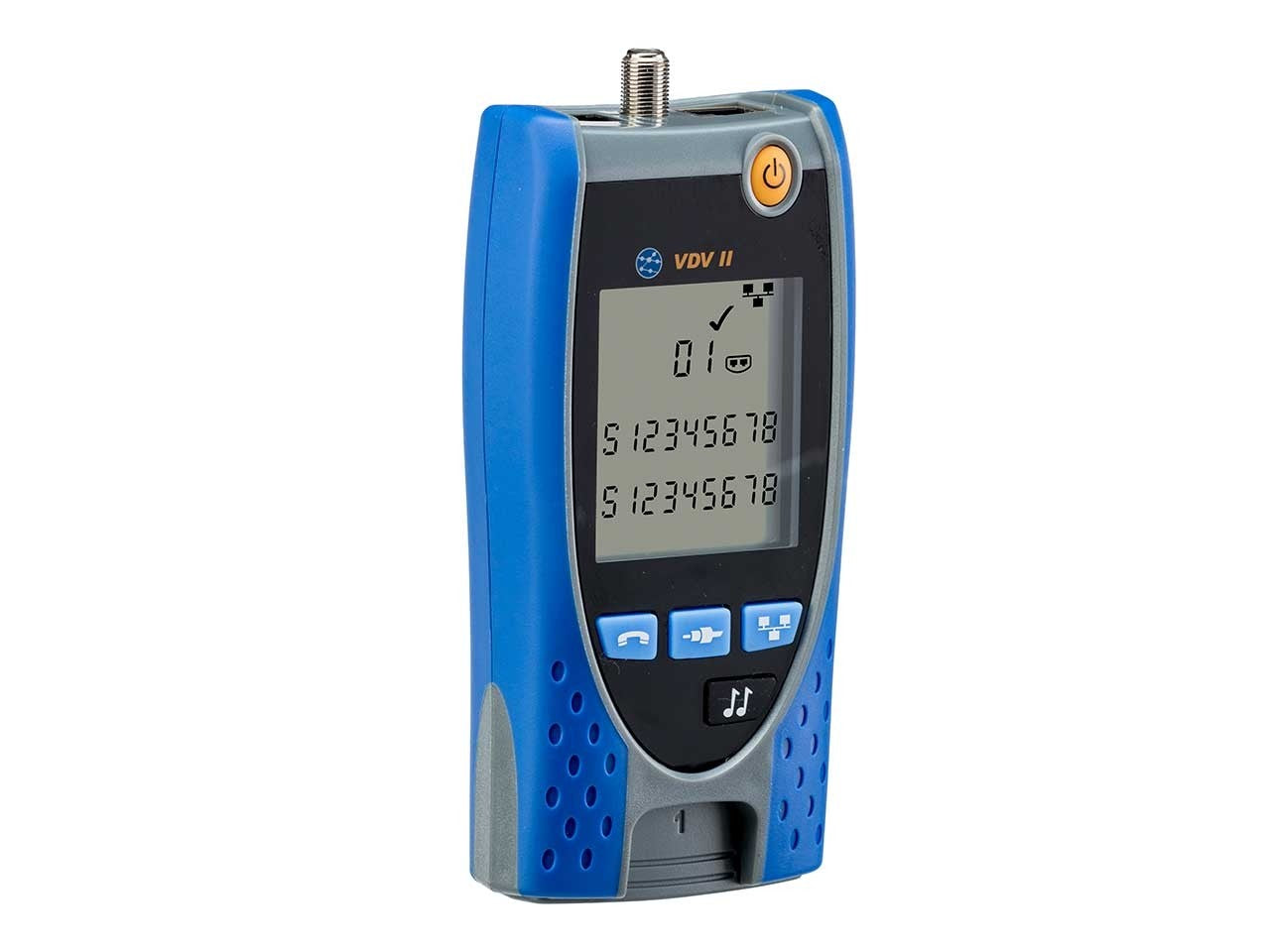

The VDV II Series are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.

• Measures cable length
• Provides distance to fault (TDR)
• Identifies wiring errors instantly
• Determines services running: ISDN, PBX and PoE
• RJ-11, RJ-12, RJ-45 and COAX ports

All the features of the VDV II Plus and...
• Distance to Open / Short (TDR)
• PoE Detection with Voltage Information
• Media Service Detection
• Ethernet Detection with Network Rate and Duplex Information

VDV II Pro – Voice, Data and Video Cable Verifier.
Includes 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ12 to RJ12 cable 100mm, 1 x F-type plug to F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F-type female adaptor, 1 x RCA female to F-type male adaptor, 1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.

Basic Specifications

Dimensions (mm): 160 x 76 x 36

Weight: 0.26 kg

Length Range: 0.3 - 450m /1-1476 ft (Plus and Pro only)

Battery Type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)

Accuracy
The flagship VDV II Pro utilises TDR to accurately measure cable length and provide distance to fault information. TDR’s work by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur.

This speeds up fault finding as well as minimising disruption and potential damage to fixtures and fixings.

Speed
With comprehensive details on faults such as opens, shorts, crossovers and split pairs, VDV II identifies wiring errors instantly. The integrated RJ11/RJ12 (voice), RJ45 (data) and F-Type (video) connectors allow faster testing of most types of low voltage cables by eliminating the need for separate testers or adapters.

Intelligence
Connection issues are not always associated with cable faults, so VDV II Pro has the capability to help identify service related issues. By detecting the presence of voltage and checking polarity, VDV II Pro quickly determines which media service is running over the cable, such as ISDN, PBX and PoE (Power over Ethernet) resulting in faster fault diagnosis.

Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information.

Furthermore, to prevent potentially costly damage to the tester all VDV II’s are smart
enough to know when they have been plugged into an outlet where voltage is present.
