Overview

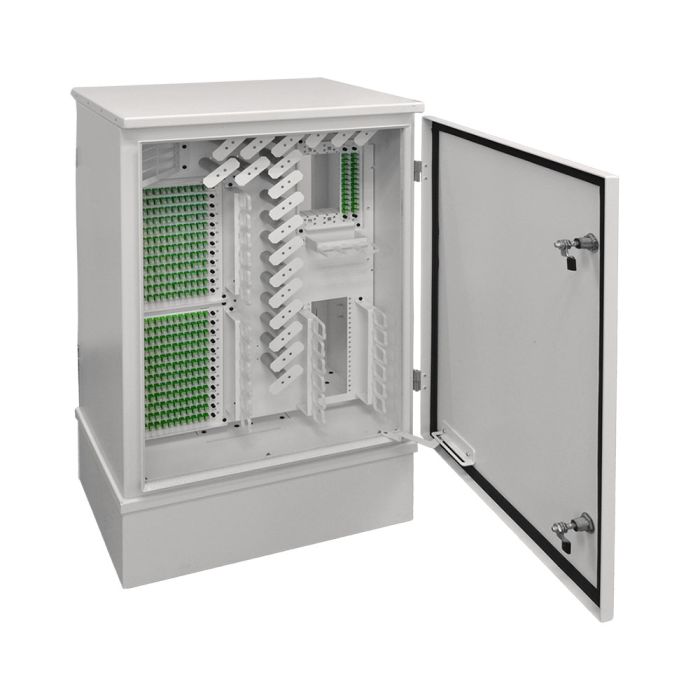

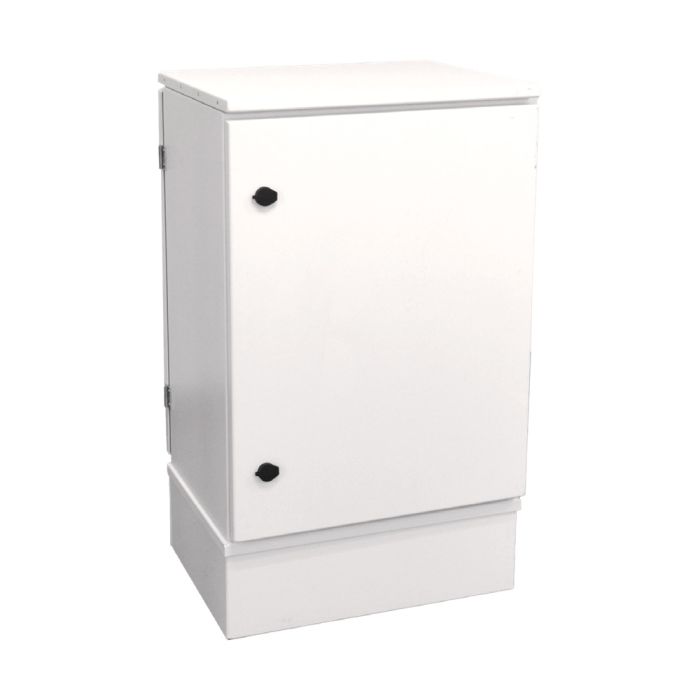

The VERSA Fiber Distribution Cabinet (FDH) is a versatile, scalable platform engineered for efficient FTTX network deployments. This cabinet provides a modular, craft-friendly environment that allows for growth as patching or splicing requirements evolve, ensuring the infrastructure remains future-proof.
Constructed from lightweight, corrosion-resistant aluminum, the cabinet is designed for durability in outdoor environments. It features intuitive, high-density cable management with integrated radius limiters, enabling organized routing for both feeder and distribution cables while maintaining signal integrity. The cabinet is designed to meet GR3125 standards, offering reliable performance for demanding field applications.
Key Features
-
Slide Pack Module
Features a craft-friendly slide-out design that improves access for technicians during installation and maintenance. -
Deployment Flexibility
Supports coexistence capabilities, allowing the network to adapt to various topologies as needed. -
Modular Architecture
Enables a "Grow as you Patch" or "Patch and Splice" configuration, reducing initial capital expenditure. -
Ample Cable Management
Includes intuitive routing pathways with radius limiters to prevent fiber macro-bending and ensure organized cable organization. -
Expandable Design
Features a 20% expansion module to accommodate future network growth. -
Durable Construction
Built from lightweight, corrosion-resistant aluminum with UV and scratch-resistant paint for long service life. -
Front and Rear Access
Equipped with removable front and rear doors to facilitate easier access to internal components. -
Optical Component Support
Designed to integrate various optical components, including WDM modules and splitters.
Applications
- FTTX Network Deployments
- Outside Plant (OSP) Fiber Distribution
- Fiber to the Home (FTTH) Infrastructure
- High-Density Network Patching
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | ZG2-A2-SP24 |
| Material | Lightweight Aluminum (Corrosion Resistant) |
| Color | Cream |
| Operating Temperature | -40°C to +70°C |
| Dimensions (HxWxD) | 34.5in x 25.4in x 19.8in |
| Standards | GR3125 |
| Mounting Options | Pad, Vault, or Pole |
| Locking System | Hex Lock Door System |
Frequently Asked Questions
What is the maximum capacity of the cabinet?
The cabinet supports up to 576 SC ports or 1,152 LC ports, depending on configuration.
Can I install splitters in this cabinet?
Yes, the cabinet is designed for optical component capability and accepts 1x8, 1x16, 1x32, and 1x64 splitter modules.
What are the mounting options?
The cabinet is designed to be installed via pad, vault, or pole mounting.
What is the riser height?
Risers are available in 4-inch, 6-inch, 8-inch, and 12-inch options.
Is the cabinet loaded or unloaded?
This specific part number, ZG2-A2-SP24, is provided unloaded.
