Overview

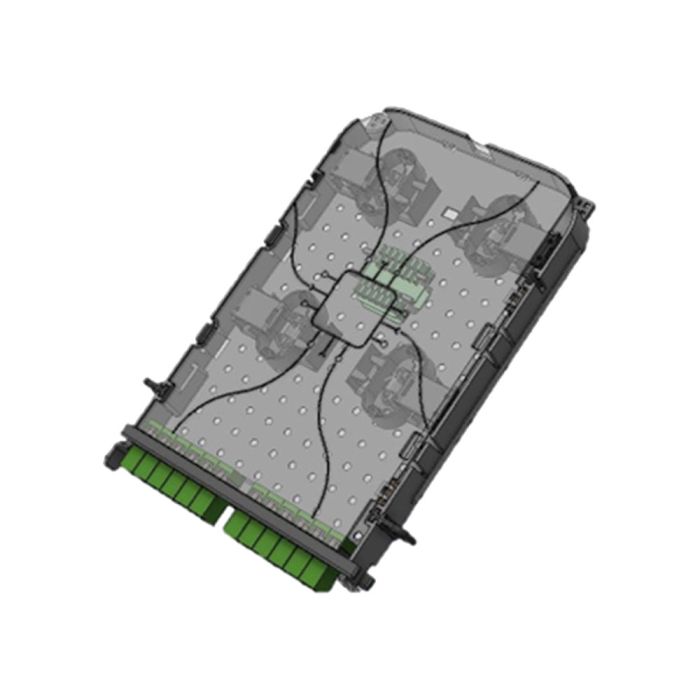

The VERSA Splice Cassette is a versatile fiber management module designed to facilitate both patching and splicing within a compact footprint. Engineered for high-density environments, it supports 12 SC/APC or 24 LC/APC connections, providing a flexible solution for data center and telecommunications infrastructure.
This cassette features a sliding adapter plate that significantly improves craft accessibility, allowing technicians to manage connections and perform maintenance with ease. Integrated slack control spools ensure proper bend radius management, while the modular design supports various configurations including splitter, WDM, and coexistence applications.
Key Features
-

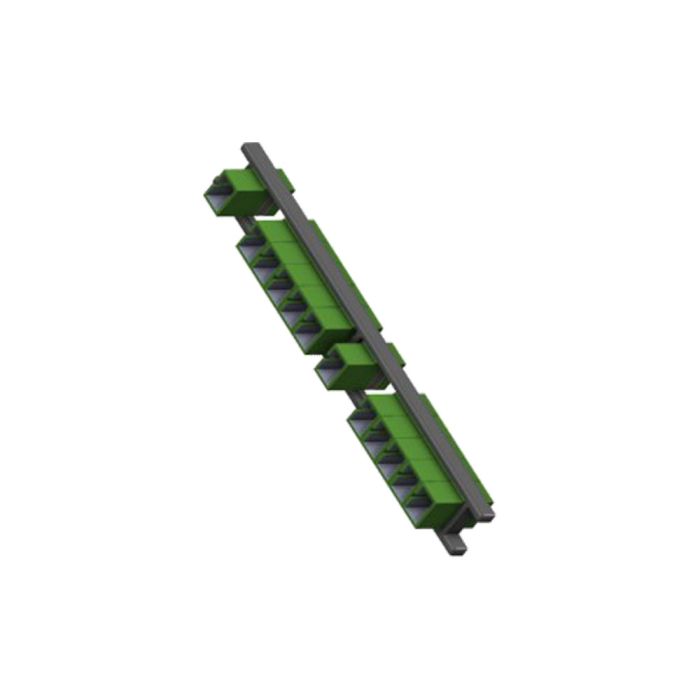

Sliding Adapter Design
The sliding mechanism provides superior craft accessibility for easier termination and inspection. -
High-Density Patching
Supports up to 12 SC/APC or 24 LC/APC fiber connections in a single cassette. -
Integrated Patch and Splice
Combines patching and splicing capabilities in one unit for streamlined network deployment. -
Versatile Configuration
Compatible with splitters, WDM, and coexistence technologies to meet diverse network requirements. -

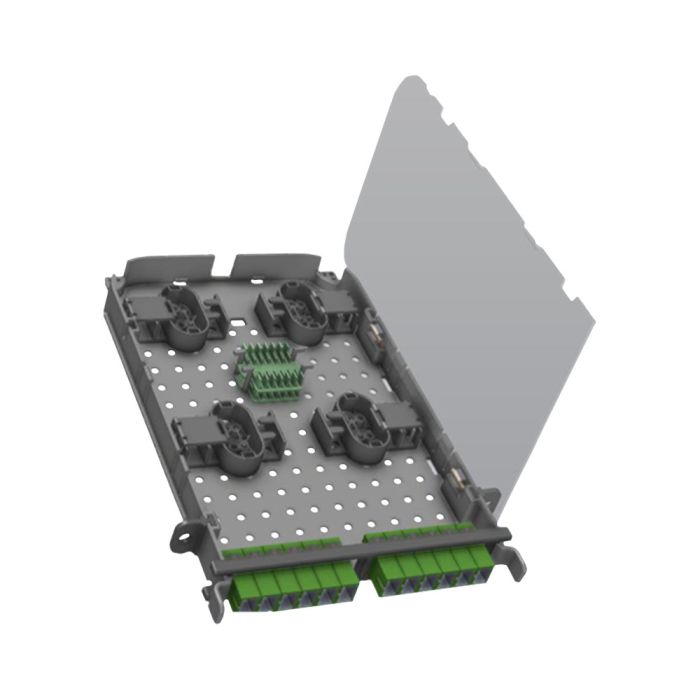

Cable Management
Includes internal slack control spools to maintain proper bend radius and organization. -
Customizable Identification
Optional colored adapters allow for improved circuit identification and network mapping. -
Removable Front Plate
The adapter plate can be removed to offer improved workspace access during installation.
Applications
- Data Center fiber management
- Telecommunications distribution
- Fiber-to-the-x (FTTX)
- Wavelength Division Multiplexing (WDM) systems
- Network coexistence applications
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Zeus |
| Part Number | Z1-VM12SCYA |
| Port Capacity | 12 Port |
| Connector Type | SC/APC |
| Fiber Interface | Loaded with Loose Tube Pigtails |
| Adapter Type | Sliding |
Frequently Asked Questions
What is the capacity of the VERSA cassette?
The cassette supports up to 12 SC/APC or 24 LC/APC connections.
Does this unit support splicing?
Yes, it is designed for combined patch and splice applications.
Can I use this for WDM applications?
Yes, the cassette is compatible with WDM, splitter, and coexistence configurations.
How is cable managed inside the cassette?
The unit includes built-in slack control spools for organized cable management and bend radius protection.
Can I identify circuits using colors?
Yes, the adapters can be specially configured with colors to assist in circuit identification.
