Overview

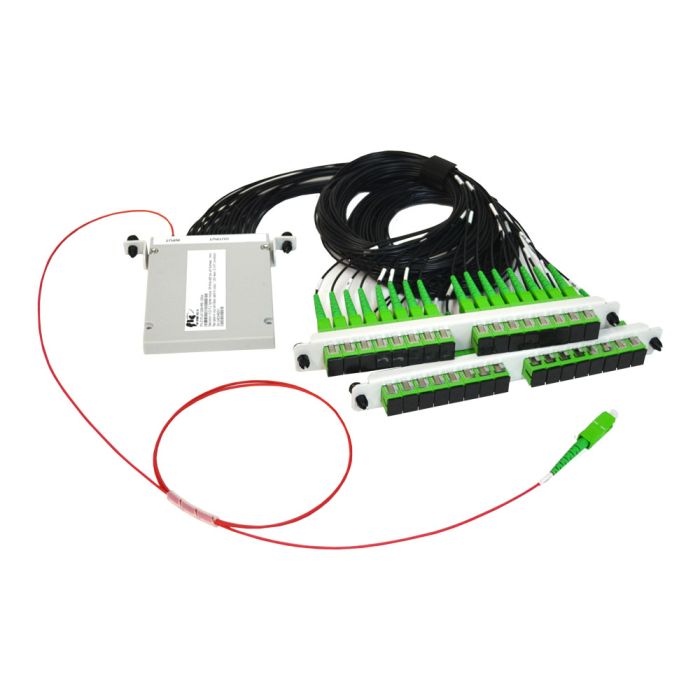

The VERSA Splitter Module is a 1x16 PLC (Planar Lightwave Circuit) component designed for high-density fiber management applications. Housed in a durable off-white ABS box with an integrated bulkhead, this module provides a reliable solution for splitting optical signals in central offices or fiber distribution hubs.
Equipped with 1.6mm ruggedized input and output leads, the module is engineered to withstand demanding installation environments. Its compact, modular design facilitates organized cable routing, ensuring stable optical performance across a wide operating temperature range.
Key Features
-
PLC Splitter Technology
Features a high-precision 1x16 splitter architecture to ensure consistent signal splitting ratios. -
Integrated Bulkhead ABS Enclosure
Provides physical protection for the optical components and simplifies mounting within distribution housings. -
Ruggedized 1.6mm Cabling
Uses 1.6mm input and output tails for enhanced cable durability during routing and management. -
SC/APC Connectivity
Pre-terminated with SC/APC connectors to minimize back-reflection and ensure compatibility with standard networks. -
Broad Wavelength Support
Operates efficiently across the 1260nm to 1650nm range, suitable for standard telecommunications windows. -
Low Insertion Loss
Maintains a maximum insertion loss of 13.8dB (inclusive of connector loss), preserving signal strength. -
Wide Operating Temperature
Certified for performance between -40°C and +85°C, ensuring reliability in outdoor or uncontrolled environments.
Applications
- FTTH (Fiber to the Home) distribution networks
- PON (Passive Optical Network) splitting
- Central Office fiber management
- Fiber Distribution Hubs (FDH)
- Local Area Networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Splitter Type | 1x16 PLC |
| Operating Wavelength | 1260nm – 1650nm |
| Max Insertion Loss | 13.8dB |
| Uniformity | ≤1.2dB |
| PDL | ≤0.3dB |
| Return Loss | ≥55dB |
| Directivity | ≥55dB |
| Lead Length | 1.25m |
| Cable Diameter | 1.6mm |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5%RH to 95%RH |
Frequently Asked Questions
What is the purpose of the 1.6mm tails?
The 1.6mm tails are ruggedized fiber leads designed to provide increased protection for the fiber strands during cable routing and installation management.
Are the connectors included in the insertion loss?
Yes, the specified 13.8dB maximum insertion loss accounts for all internal components and connector losses.
Can this module be used outdoors?
The module is rated for an operating temperature of -40°C to +85°C, making it suitable for deployment in temperature-controlled outside plant enclosures.
What does the 1x16 configuration signify?
This indicates the module splits a single optical input signal into 16 distinct output signals.
What type of polish is on the connectors?
The module is terminated with SC/APC (Angled Physical Contact) connectors, which are designed to reduce back-reflection in sensitive network applications.
