Overview

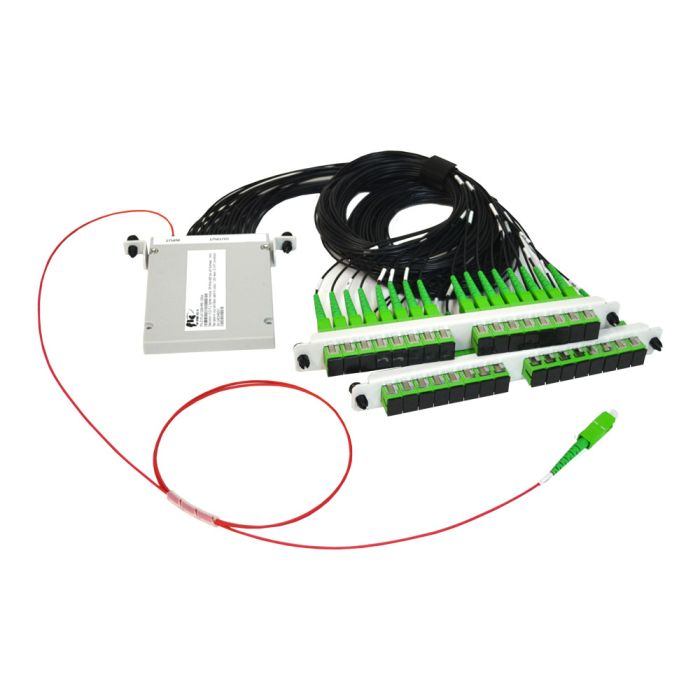

The VERSA Splitter Module is a 1x32 PLC (Planar Lightwave Circuit) component designed for high-density fiber distribution networks. Housed in an off-white ABS box with integrated bulkheads, this module is engineered to manage optical signals efficiently in outside plant or rack-mounted environments. It provides a standardized solution for splitting single-mode fiber signals across multiple endpoints.
This module features 1.6mm ruggedized input and output tails for enhanced durability during installation and routing. The unit includes pre-terminated SC/APC connectors, ensuring low-reflectance performance and compatibility with standard network interfaces. Its construction is optimized for wide temperature ranges and high humidity, making it suitable for demanding operational environments.
Key Features
-
1x32 Split Configuration
Features a high-density PLC design for splitting one input signal into thirty-two distinct outputs. -
SC/APC Connectivity
Utilizes industry-standard SC/APC connectors to maintain high return loss and minimize back-reflections in the link. -
Rugged 1.6mm Tails
Equipped with 1.6mm cable jackets to provide improved protection for the input and output fibers. -
ABS Housing
Constructed with a durable ABS box that includes a bulkhead for secure mounting within enclosures. -
Wide Operating Temperature
Designed to function within a range of -40°C to +85°C for long-term deployment in variable climates. -
Low Insertion Loss
Optimized optical design ensures insertion loss is ≤16.8dB, inclusive of connector losses.
Technical Specifications
| Specification | Value |
|---|---|
| Channel Number | 1x32 |
| Operating Wavelength | 1260nm – 1650nm |
| Insertion Loss | ≤16.8dB |
| Uniformity | ≤1.4dB |
| PDL | ≤0.3dB |
| Return Loss | ≥55dB |
| Directivity | ≥55dB |
| Connector Type | SC/APC |
| Cable Diameter | 1.6mm |
| Lead Length | 1.25m |
| Housing Material | ABS Box |
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | 5%RH to 95%RH |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%RH to 95%RH |
Frequently Asked Questions
What is the maximum insertion loss for this unit?
The maximum insertion loss is ≤16.8dB, which includes the loss for one pair of connectors (max 0.3dB).
What type of connectors are used?
This module is pre-terminated with SC/APC connectors.
Can this be used outdoors?
Yes, the module is rated for an operating temperature range of -40°C to +85°C and 5% to 95% humidity, suitable for various environmental conditions.
What is the cable length?
The module comes with 1.25m input and output leads.
What does the module include?
It includes a 1x32 PLC splitter in an off-white ABS box, 1.6mm input/output cables, and SC/APC connectors.
