Overview

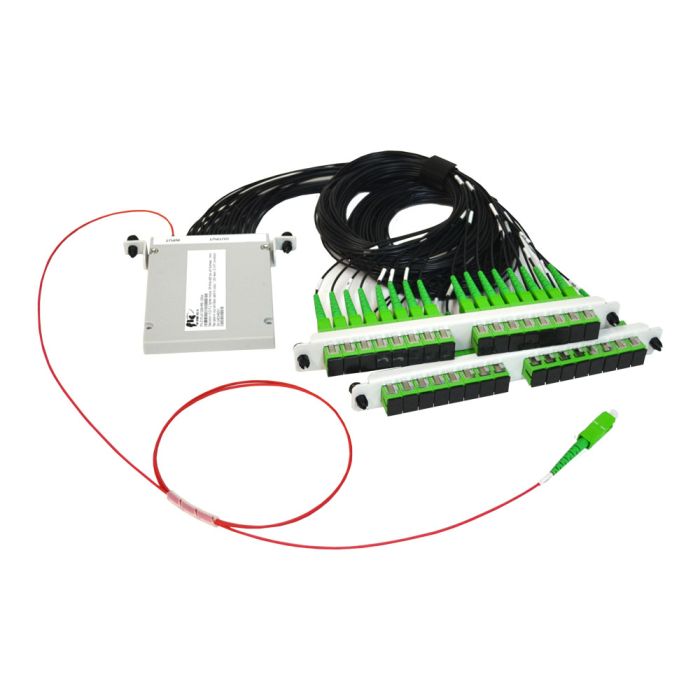

The VERSA Splitter Module is a high-density 1x64 PLC (Planar Lightwave Circuit) optical splitter designed for efficient signal distribution in fiber-to-the-x (FTTX) and other PON network architectures. Encased in a durable off-white ABS box with integrated bulkheads, this module is engineered for ease of mounting and organization within telecommunications enclosures.
The module features ruggedized 1.6mm cabling for both input and output, with distinct red input and black output coloring to simplify installation and troubleshooting. Designed for wide environmental compatibility, it provides consistent signal splitting performance across a broad wavelength range and temperature spectrum.
Key Features
-
1x64 Split Ratio
Provides high-density signal distribution suitable for large-scale PON network deployments. -
LC/APC Connectivity
Features factory-terminated LC/APC connectors to ensure low return loss and reliable mating. -
Color-Coded Cabling
Utilizes red for input and black for output 1.6mm cables for immediate port identification. -
Robust ABS Housing
Features a durable ABS enclosure with integrated bulkhead for secure rack or enclosure mounting. -
Wide Operating Wavelength
Optimized for operation across the 1260nm to 1650nm range, supporting standard telecommunications wavelengths. -
High Environmental Tolerance
Rated for operation from -40°C to +85°C to handle harsh outdoor or central office environments.
Applications
- FTTX and PON networks
- Central office fiber distribution
- Telecommunications enclosures
- Broadband subscriber signal splitting
Technical Specifications
| Specification | Value |
|---|---|
| Channel Number | 1x64 |
| Operating Wavelength | 1260nm - 1650nm |
| Insertion Loss | ≤20.5dB |
| Uniformity | ≤2.0dB |
| PDL | ≤0.3dB |
| Return Loss | ≥55dB |
| Directivity | ≥55dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Operating/Storage Humidity | 5%RH - 95%RH |
| Connector Type | LC/APC |
| Lead Length | 1.25m |
Frequently Asked Questions
What is the maximum insertion loss for this module?
The maximum insertion loss is ≤20.5dB at 1310nm/1550nm, which includes connector loss (max 0.3dB per pair).
Is the input cable color-coded?
Yes, the module features a red input cable and black output cables to prevent patching errors.
What environment is this splitter suitable for?
With an operating temperature range of -40°C to +85°C and humidity tolerance of 5% to 95%, it is suitable for diverse indoor and outdoor environments.
What wavelength range does this PLC support?
The module is designed to operate across a broad range from 1260nm to 1650nm.
Does the splitter come with connectors?
Yes, it is factory-terminated with LC/APC connectors.
