Overview

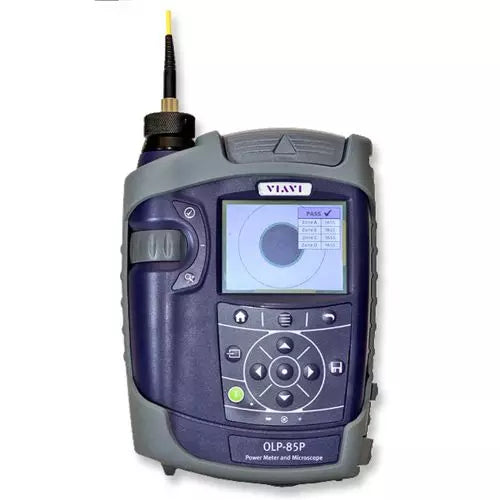

The VIAVI 2308/03 SmartClass™ OLP-85P is an integrated fiber inspection and optical power meter designed for professional field testing. This high-precision tool provides a wide dynamic range of 100dB, enabling accurate optical power measurements across wavelengths from 800 to 1700 nm. It is engineered for critical network maintenance, supporting both auto pass/fail fiber inspection and power measurement in a single, compact, battery-operated device.
Featuring a 3.5-inch color touch screen, the OLP-85P simplifies workflows for technicians by providing clear, visual pass/fail analysis based on user-defined thresholds. The unit includes advanced data management capabilities, allowing for local storage of test results with time stamps and remote control functionality via USB 2.0 and Ethernet connectivity for integration into modern network management systems.
Key Features
-
Integrated Patch-Cord Microscope
Allows for direct inspection of fiber end-faces to ensure clean connections. -
Wide Dynamic Range
Offers a 100dB dynamic range for measuring signal strength with high precision. -
Broad Wavelength Coverage
Supports optical power measurements from 800 to 1700 nm. -
Pass/Fail Analysis
Provides individual threshold settings for power and loss to streamline testing. -
Color Touch Screen
Features a 3.5-inch display for easy navigation and result viewing. -
Remote Connectivity
Supports remote control and data transfer via USB 2.0 and Ethernet. -
Universal Interface
Includes a Universal Push Pull (UPP) adapter compatible with 2.5 mm connectors. -
Data Storage
Enables internal storage of test results with integrated time stamps.
Applications
- Fiber optic network installation and maintenance
- Fiber end-face inspection and cleaning verification
- Optical loss testing and power measurement
- Data center and enterprise network certification
Package Contents
- SmartClass OLP-85P Power Meter
- Soft shoulder case
- One optical adapter
- Alkaline batteries (8x)
- Quick start manual
- Safety instructions
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | 2308/03 |
| Operating Wavelength | 800 to 1700 nm |
| Dynamic Range | 100 dB |
| Measurement Range | -75 to +26 dBm |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Display | 3.5" Color Touch Screen |
| Connectivity | USB 2.0, Ethernet |
| Connector Interface | 2.5 mm UPP Adapter |
Frequently Asked Questions
What is the primary function of the 2308/03 OLP-85P?
It is an optical power meter with an integrated patch-cord microscope used for measuring signal power and inspecting fiber end-faces.
Does this unit come with a 1.25 mm adapter?
No, the unit includes a 2.5 mm UPP adapter. A 1.25 mm UPP adapter is available as an optional accessory.
Can the device perform pass/fail testing?
Yes, it supports individual threshold settings for both power and loss to provide automated pass/fail results.
What power source does it use?
The device is battery-operated and includes 8 alkaline batteries.
Is this device compatible with other VIAVI equipment?
Yes, it is compatible with the OLS-85 optical light source.
