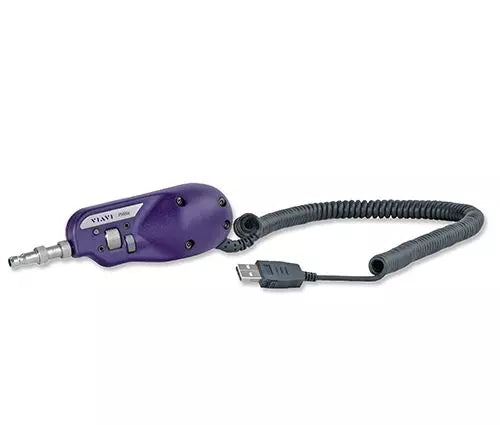

VIAVI FBP-P5000i Digital Inspection Microscope with FiberChekPRO

Overview

The VIAVI FBP-P5000i Handheld Fiber Inspection Microscope is an advanced digital tool designed for the inspection and certification of fiber optic end-face quality. By automating the verification process according to IEC standards or user-defined criteria, it ensures consistent and accurate assessments in diverse network environments, including data centers and field installations.

This microscope offers seamless connectivity to various platforms, including PCs via USB, laptops, and Android mobile devices using the FiberChekMOBILE application. The device features automatic image centering and provides high-resolution inspection with dual magnification levels (200X and 400X) for both live and analysis views. It is engineered to support the extensive range of FBPT series tips, ensuring compatibility with virtually all connector types.

Key Features

• Automated Inspection
  Provides repeatable, objective pass/fail analysis of fiber end-faces, reducing human error in certification.
• Dual Magnification
  Offers both 200X and 400X magnification to accommodate different inspection requirements for live and analysis modes.
• Universal Connector Support
  Compatible with the complete line of FBPT series inspection tips, allowing for versatile connector testing.
• Cross-Platform Connectivity
  Connects easily to PCs, laptops, and Android devices, enabling flexible workflow integration.
• Automated Image Centering
  Ensures the fiber under test is always properly positioned within the field of view for faster analysis.
• FiberChekPRO Software
  Includes comprehensive software for data analysis and the generation of detailed, professional certification reports.

Applications

• Fiber optic network installation and commissioning
• Data center maintenance and troubleshooting
• Fiber end-face certification to industry standards
• Patch cord and bulkhead connector inspection

Package Contents

• FBP-P5000i Digital Inspection Microscope
• Patch cord inspection tip (2.5mm)
• FiberChekPRO software installation media
• Instruction manual
• Carrying case for tips
• Soft carrying bag

Frequently Asked Questions

What devices is the FBP-P5000i compatible with?
The microscope is compatible with PCs, laptops, and Android mobile devices via the FiberChekMOBILE application.

Does this unit provide automated pass/fail results?
Yes, the device performs automated inspection and certification based on IEC standards or user-selectable criteria.

What magnification levels does the microscope support?
The FBP-P5000i supports dual magnification at 200X and 400X for both live and analysis views.

Are the inspection tips interchangeable?
Yes, the device is designed to accept all FBPT series tips for various connector types.

Is report generation supported?
Yes, the included FiberChekPRO software allows for the analysis of fiber images and the generation of detailed certification reports.
