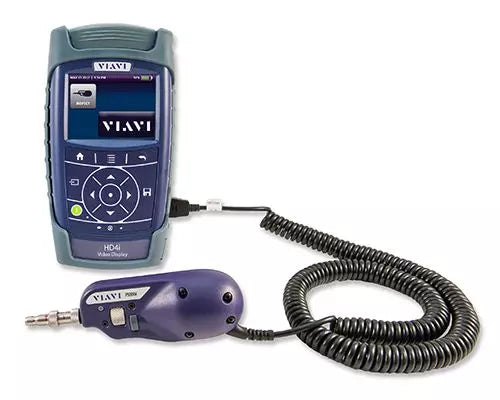

VIAVI FBP-SD4i-PRO SmartClass HD4i Pro Fiber Inspection Kit

Overview

The VIAVI FBP-SD4i-PRO SmartClass™ Professional Fiber Inspection Kit is a comprehensive solution designed for technicians to inspect, test, and certify fiber optic end-faces. Built for demanding field environments, this kit enables rapid assessment of fiber health through automated analysis.

At the center of this kit is the HD4i digital handheld video display, which features a 3.5-inch color touch screen and an intuitive interface. It is paired with the P5000i digital probe microscope, capable of automatic image centering to simplify inspection of both bulkhead and patchcord connectors in confined spaces. The system facilitates immediate certification reporting, ensuring compliance with industry standards.

Key Features

• Digital Handheld Display
  Features a 3.5-inch color touch screen with an intuitive user interface for streamlined field operation.
• Automated Pass/Fail Analysis
  Eliminates manual interpretation by providing clear, standards-based results instantly.
• P5000i Digital Probe Microscope
  Delivers high-resolution imagery with automatic image centering for easier connector inspection.
• FiberChekPRO Software Compatibility
  Enables professional reporting and data management when exported to a PC via USB.
• Versatile Inspection Capability
  Suitable for both bulkhead and patchcord connector types in challenging, hard-to-reach locations.
• Comprehensive Field Kit
  Includes essential cleaning materials, VFL, inspection tips, and power accessories for immediate deployment.

Applications

• Fiber optic network maintenance and troubleshooting
• Data center fiber certification
• Inspection of patchcord and bulkhead connectors
• Field-based optical signal testing

Package Contents

• HD4i digital handheld video display
• P5000i digital inspection microscope
• FiberChekPRO software
• Cleaning materials (for 2.5mm and 1.25mm connectors)
• Visual Fault Locator (VFL) with adapter
• USB cable
• Rechargeable Li-ion battery
• 8x AA batteries
• Power supply
• Hands-free carrier
• Hard carrying case

Frequently Asked Questions

What is included in the inspection kit?
The kit contains the HD4i display, P5000i microscope, cleaning tools, VFL, various inspection tips/adapters, and all required power accessories in a protective carrying case.

Does the kit support automated analysis?
Yes, the system provides automated pass/fail analysis according to industry standards or custom user-defined criteria.

Can I export test results?
Yes, results can be stored on the device and exported to a PC via USB for generating certification reports using FiberChekPRO software.

Is the microscope compatible with bulkheads?
Yes, the P5000i probe microscope is designed to inspect both patchcord and bulkhead connectors, even in hard-to-reach areas.

What is the display size?
The HD4i digital handheld display features a 3.5-inch color touch screen.
