Overview

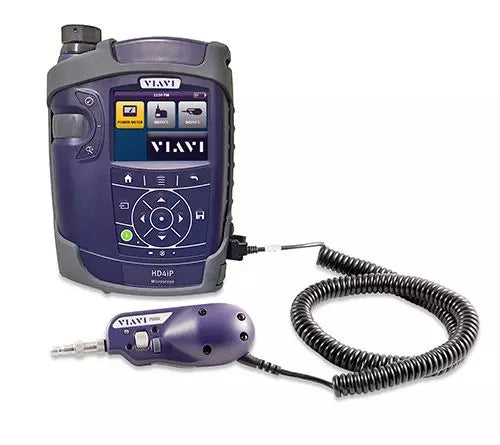

The VIAVI SmartClass Fiber Pro Inspection Kit is a comprehensive solution designed for fiber optic technicians and network installers. This kit centers on the HD4iP digital handheld video display, which integrates a patch-cord microscope (PCM) for efficient and accurate inspection of fiber end-faces. Its primary purpose is to verify the cleanliness and condition of fiber connectors, ensuring optimal signal integrity in data centers and telecommunications networks.
Built with a 3.5" color touch screen and a smartphone-style interface, the system supports automated pass/fail analysis aligned with industry standards. Technicians can perform detailed inspections using either the integrated PCM or the included P5000i digital microscope. The kit supports internal storage of test results and offers seamless data export to a PC via mini-USB for professional certification reporting using FiberChekPRO software.
Key Features
-
Integrated Patch-Cord Microscope (PCM)
Allows for direct inspection of patch cords without needing external adapters, saving time during setup. -
3.5" Color Touch Screen
Provides an intuitive, high-visibility interface that simplifies navigation and data entry in the field. -
Automated Pass/Fail Analysis
Uses industry-standard criteria to eliminate human error and ensure consistent testing results. -
Smartphone-Style Interface
Reduces the learning curve for technicians, allowing for quick deployment and efficient operation. -
P5000i Digital Microscope Compatibility
Offers flexible inspection options for various connector types using a high-precision digital probe. -
FiberChekPRO Software
Enables centralized management, documentation, and creation of immediate certification reports. -
Data Storage and Connectivity
Supports internal result storage and convenient USB exports for post-test analysis on a PC.
Applications
- Fiber network troubleshooting and maintenance
- Data center connector inspection
- Telecommunications infrastructure certification
- Pre-installation fiber end-face validation
Package Contents
- HD4iP digital video display unit
- Integrated dual-mag patch cord module (PCM)
- P5000i digital inspection microscope
- Assorted tips and adapters
- USB cable
- Visual fault locator
- FiberChekPRO software
- Power supply and batteries
- Cleaning materials
- Hands-free carrier
- Rechargeable Li-ion battery
- Instruction manual
- Soft carry case
Frequently Asked Questions
Does this kit include software for reporting?
Yes, it includes FiberChekPRO software for generating certification reports.
Can I use this for both patch cords and bulkheads?
Yes, the kit includes both an integrated patch-cord microscope and the P5000i probe for broader inspection capabilities.
Does the unit perform automated analysis?
Yes, the system features automated pass/fail analysis according to industry standards.
What is the display type?
The device features a 3.5-inch color touch screen interface.
How can I export test results?
Results can be stored internally and exported to a PC via a mini-USB connection.
