Overview
The VIAVI FBP-SD4iP SmartClass Fiber Basic Inspection Kit is a comprehensive solution designed for fiber technicians and network operators. It provides advanced end-face inspection capabilities to ensure network signal integrity by detecting contamination and defects before they impact performance.

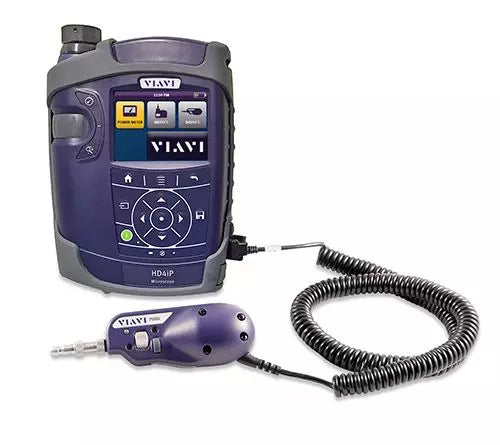

At the center of this kit is the HD4iP digital handheld video display, which features a high-resolution 3.5-inch color touch screen and an intuitive, smartphone-style user interface. The kit includes an integrated Patch-Cord Microscope (PCM) and the P5000i digital inspection microscope, allowing for versatile inspection of both patch cords and bulkhead connectors with automatic image centering for streamlined workflows.
Engineered for field use, this kit supports automated pass/fail analysis aligned with industry standards, minimizing subjective interpretation. Test results can be stored internally or exported via mini-USB for documentation. With the included FiberChekPRO software, users can efficiently generate certification reports, making this an essential tool for maintaining high-performance fiber optic infrastructure.
Key Features
-
Integrated Patch-Cord Microscope (PCM)
Allows for direct inspection of fiber patch cords using the onboard port, reducing the need for additional accessories. -
High-Resolution Touch Display
Features a 3.5-inch color touch screen for easy navigation and clear, detailed viewing of fiber end-faces. -
Automated Pass/Fail Analysis
Provides objective results based on industry standards, ensuring consistent and accurate fiber certification. -
P5000i Digital Microscope Compatibility
Includes the P5000i probe, which features automatic image centering for quick and precise inspections. -
Comprehensive Connectivity
Offers internal storage and mini-USB export capability for transferring data to a PC. -
FiberChekPRO Reporting
Enables professional report generation and certification for network documentation requirements. -
Smartphone-Style Interface
Utilizes an intuitive menu structure to minimize training time and improve operational efficiency in the field.
Applications
- Data center fiber optic cable maintenance
- Fiber optic network installation and troubleshooting
- Telecom infrastructure certification
- Patch cord and bulkhead connector inspection
Package Contents
- HD4iP digital handheld video display
- Dual-mag patch cord module (PCM)
- P5000i digital inspection microscope
- Inspection tips and adapters
- USB cable
- FiberChekPRO software installation disk
- Power supply
- Batteries
- Manual
- Soft carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FBP-SD4IP |
| Part Number | 345X442 |
| Display | 3.5-inch color touch screen |
| Analysis | Automated pass/fail |
| Connectivity | Mini-USB port |
Frequently Asked Questions
Does this kit include a carry case?
Yes, the kit comes with a soft carry case for protection and organization in the field.
Can this unit generate reports?
Yes, using the included FiberChekPRO software, you can generate professional certification reports for your fiber tests.
Is the inspection automated?
Yes, the unit features automated pass/fail analysis according to industry standards or user-defined criteria.
Does it include a patch cord microscope?
Yes, this model (FBP-SD4iP) includes an integrated Patch-Cord Microscope (PCM) option.
How is data exported?
Data can be stored internally and exported to a PC via the integrated mini-USB port.
