Overview

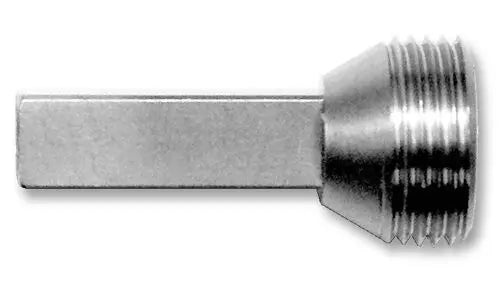

The VIAVI FBPT-LC is a standard 1.25 mm bulkhead inspection tip designed for use with VIAVI FBP series video fiber inspection microscopes. It is specifically engineered for inspecting LC connectors in patch panels or bulkhead adapters, ensuring clear and accurate end-face images during fiber network maintenance and troubleshooting.
This precision-machined tip provides the necessary alignment to interface with LC bulkhead ports. It is an essential component for technicians performing standard fiber optic inspections to verify cleanliness and integrity, helping to prevent signal degradation in mission-critical data center and telecommunications environments.
Key Features
-
Precision 1.25 mm Interface
Designed specifically for LC bulkhead connections to ensure proper centering of the fiber end-face. -
Durable Construction
Built for repeated use in field environments, maintaining alignment integrity over multiple inspections. -
Compatible with VIAVI FBP Series
Seamlessly integrates with existing FBP video probe microscopes for immediate field deployment. -
Clear Visual Inspection
Enables high-resolution imaging to detect contamination, pits, or scratches on connector end-faces. -
Easy Tip Swap
Quick-change design allows technicians to switch between different connector types rapidly in the field. -
Standard Bulkhead Reach
Optimized for standard panel depths to ensure the connector surface is within the focal range of the microscope.
Applications
- LC connector bulkhead inspection
- Data center fiber link troubleshooting
- Telecommunications network maintenance
- Fiber optic installation and certification
- Preventative maintenance cleaning verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FBPT-LC |
| Part Number | 718X224 |
| Connector Type | LC |
| Ferrule Size | 1.25 mm |
| Application Type | Standard Bulkhead |
Frequently Asked Questions
Is this tip compatible with non-VIAVI microscopes?
No, this tip is specifically designed for the VIAVI FBP series of video fiber inspection microscopes.
What connector type does this tip support?
This tip is designed for LC connectors with a 1.25 mm ferrule.
Is this a long-reach tip?
No, this is the standard bulkhead tip; a long-reach (extended) version is available for deeper panels.
What is the purpose of this tip?
It aligns the microscope probe with the LC bulkhead connector to allow for clear visual inspection of the fiber end-face.
How do I clean this tip?
Follow the cleaning instructions provided in your VIAVI FBP inspection microscope user manual to ensure clear imaging.
